Tuff Stuff RLP-200 Leg Press/Hack Squat - Manual (Page 6)

34
39
67
34
67
55
38
34
22
34
55
34
23
5
55
37
34
34
35
45
6 35
45
6
34
42
35
56
42
34
2
56
35
5

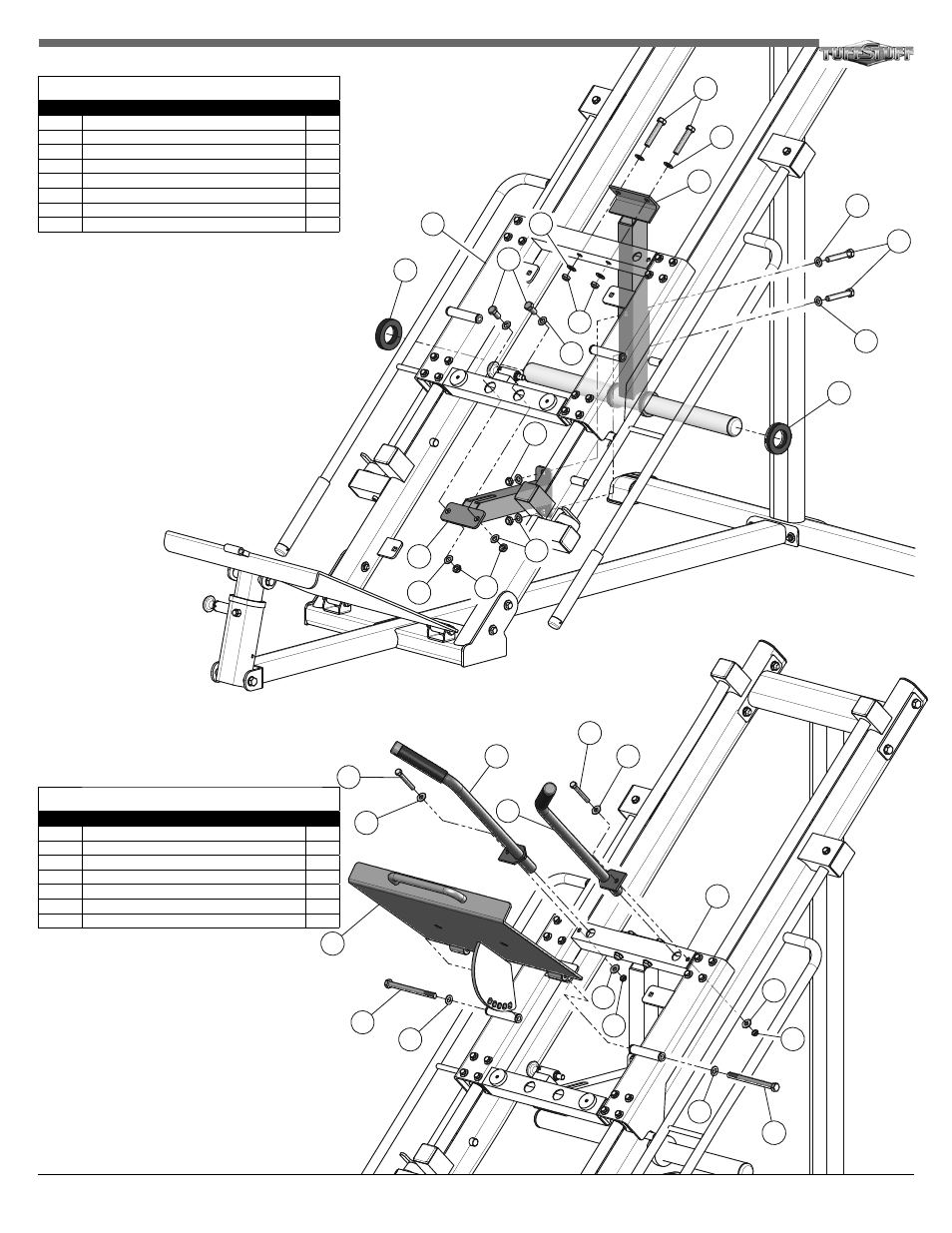

6 RLP-200 Leg Press / Hack Squat
Step 6 Assembly List
Item # Description Qty.
2 ADJUSTABLE FOOT PLATE 1
6 CARRIAGE HANDLE 2
34 FLAT WASHER SAE 1/2” 2
35 FLAT WASHER SAE 3/8” 4
42 HEX HEAD CAP SCREW 1/2-13 X 6 1/4 2
45 HEX HEAD CAP SCREW 3/8-16 X 2 3/4 2
56 NYLON INSERT JAM LOCK NUT 3/8-16 2
Step 5 Assembly List
Item # Description Qty.
22 WEIGHT HOLDER 1
23 WEIGHT HOLDER SUPPORT 1
34 FLAT WASHER SAE 1/2” 12
37 HEX HEAD CAP SCREW 1/2-13 X 1 2
38 HEX HEAD CAP SCREW 1/2-13 X 2 3/4 2
39 HEX HEAD CAP SCREW 1/2-13 X 3 2
55 NYLON INSERT JAM LOCK NUT 1/2-13 6
67 RUBBER WASHER 1 7/8 ID X 3 OD 2
