Tuff Stuff RLP-200 Leg Press/Hack Squat - Manual (Page 5)

35 46
35
16
35
56
35
35
56
35
15
11 35
46
35
35
56
35
35
56
35
45
35
35
45
36
70
50
36
70
50
36
70
50 36 70
5
25
25
25
56
5 RLP-200 Leg Press / Hack Squat

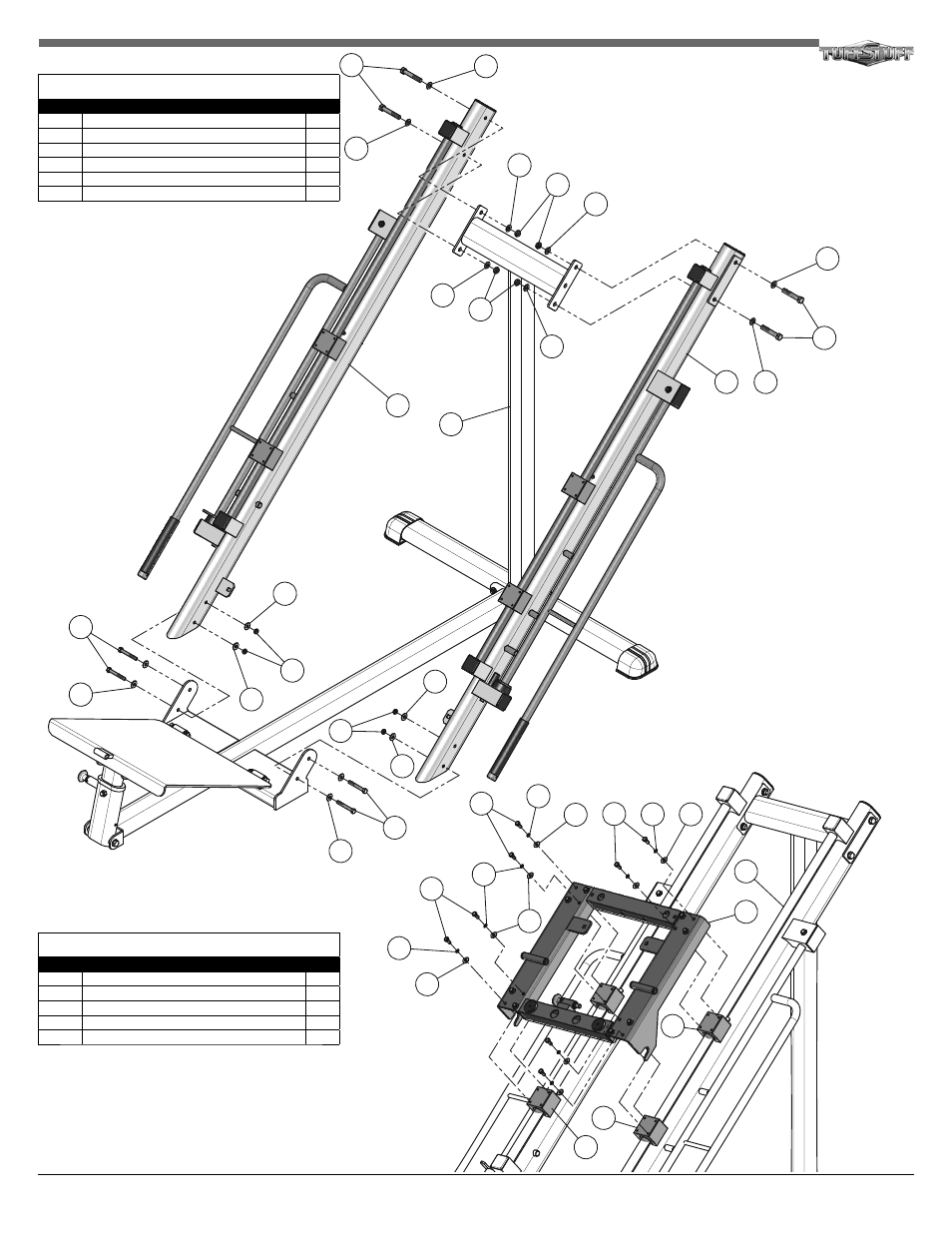

Step 3 Assembly List
Item # Description Qty.
11 LEFT SIDE FRAME RAIL 1
16 RIGHT SIDE FRAME RAIL 1
35 FLAT WASHER SAE 3/8” 16
45 HEX HEAD CAP SCREW 3/8-16 X 2 3/4 4
46 HEX HEAD CAP SCREW 3/8-16 X 3 4
56 NYLON INSERT JAM LOCK NUT 3/8-16 8
Step 4 Assembly List
Item # Description Qty.
5 CARRIAGE 1
25 ALUMINUM PILLOW BLOCK BEARING 4
36 FLAT WASHER USS 5/16” 16
50 HEX HEAD CAP SCREW 5/16-18 X 5/8 16
70 SPLIT LOCK WASHER 5/16” 16
