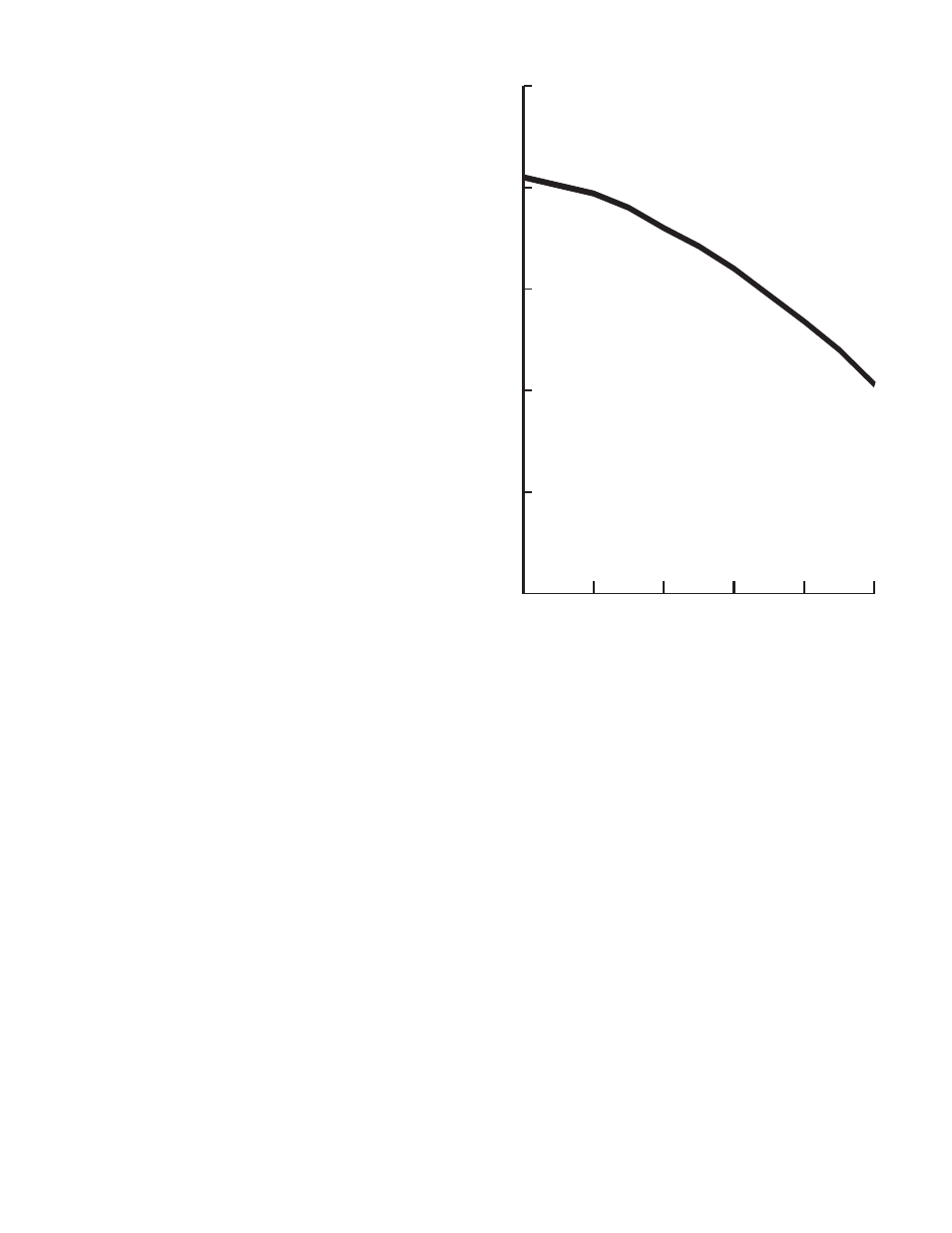

PUMP PERFORMANCE
Model Number 15MED-AC/RC
Chiller Capacity 15 [Tons]
@ 44 o F Water @ 180,000 [BTU/hr]
95 o F Ambient 52.7 [KW]
Width 36.25 [in]
Height 52.25 [in]
Depth 76.00 [in]
Volts/Phase 230/3 460/3 [Volts]
FLA 78.2. 40.2 [Amps]
Min Amps 95 48.8 [Amps]
Max Fuse 110 60 [Amps]
Charge 20.0 20 [lbs]
Refrigerant R-22
Compressor FLA 67.2 34.6 [Amps]
Compressor LRA 450 228 [Amps]
Compressor HP 2 X 8 [HP]
Compressor Type Scroll
Water Pump FLA 5.4 2.7 [Amps]
Water Pump HP 2 2 [HP]
Water Pump GPM 20 [GPM]
Water Pump Pressure 50 [psi]
WATER PUMP2 FLA 5.4 2.7 [Amps]
WATER PUMP2 HP 2 [HP]
WATER PUMP2 GPM 20 [USGPM]
WATER PUMP2 PRESS. 50 [PSI]
Fan FLA 6.0 3.0 [Amps]
Fan HP 1 [HP]
Fan Blade 24 [in]
Fan Quanitity 2
Total Air Flow 12000 [CFM]
Fan RPM 1725 [RPM]
Make-up Connection [in]
CHW Connections 1-1/2 Npt [in]
Reservoir Capacity 70 [Gal]
Dry Weight 2250 [lbs]
