SECTION 8: Repair and Replace
8.1 Cam Follower Removal Procedure
8.2.1. Rotate input shaft until farthest cam follower stud
➃
is clear of housing.
8.2.2. Remove locking set screw
➁
from hub plate
③
.
8.2.3. With soft punch, drive follower stud
➃
by going through open hole in hub plate
③
.
8.2.4. Remove and discard old cam follower and inspect stud
➃
for wear.
8.2.5. Reverse procedure to install new bearing
➀
.
8.2.6. Rotate camshaft until complete follower set has been changed.
8.2.7. Continue with step 8.1.5.

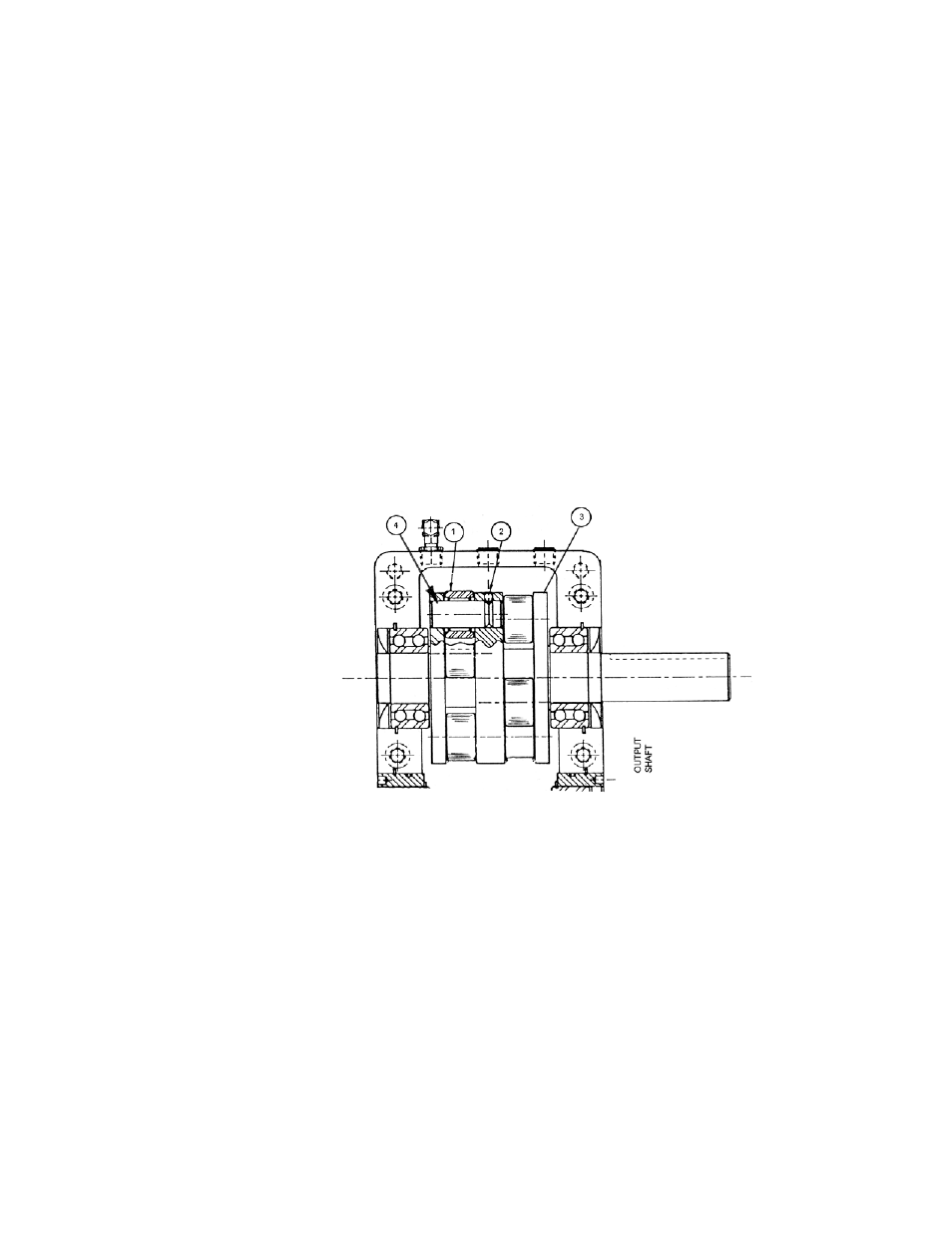

FIGURE 7
