BRAND Hydraulics BG5, BGR5, & BGC5 STYLE PRIORITY DIVIDER - Manual (Page 2)

04/14
1.91" [48.5]
3.88" [98.6]
4.56" [115.8]
4.54" [115.3]
0.94" [23.9]
1.88" [47.8]
Ø 9/32" [7.1] THRU
(2 PLACES)
*NOTE: FLOW SETTING VS PORT SIZE
1-8 GPM 3/8" PRIOR. PORT
9-16 GPM 1/2" PRIOR. PORT
17-30 GPM 3/4" PRIOR. PORT
PRIORITY PORT*
INLET
EXCESS
PORT
TROUBLESHOOTING:
Problem: Valve chatters or has stability issues. Instability generally occurs when the valve sees an application that has
rapidly changing loads. (ie: Fan, Vibration, etc.) Because of these changing loads the compensator spool tries to compensate
rapidly. This causes the valve to become unstable, as well as begin to make noises, including a chatter.
Solution: Most instability issues can be solved by using a different compensator spool. A replacement spool designed for
load changing applications can be ordered. (Part #: XDC609) XDC609 must have a drilled orifice that correlates to the valves
flow rate.
GENERAL INFORMATION:
Pipe Thread Sealant - Warranty is void when Teflon tape is used to seal pipe threads. This is because Teflon tape is a
friction reducing agent which allows customers to over-torque fittings. We recommend using a sealant that does not include
friction reducing agents i.e. Lead Plate.
DIMENSIONAL DATA:

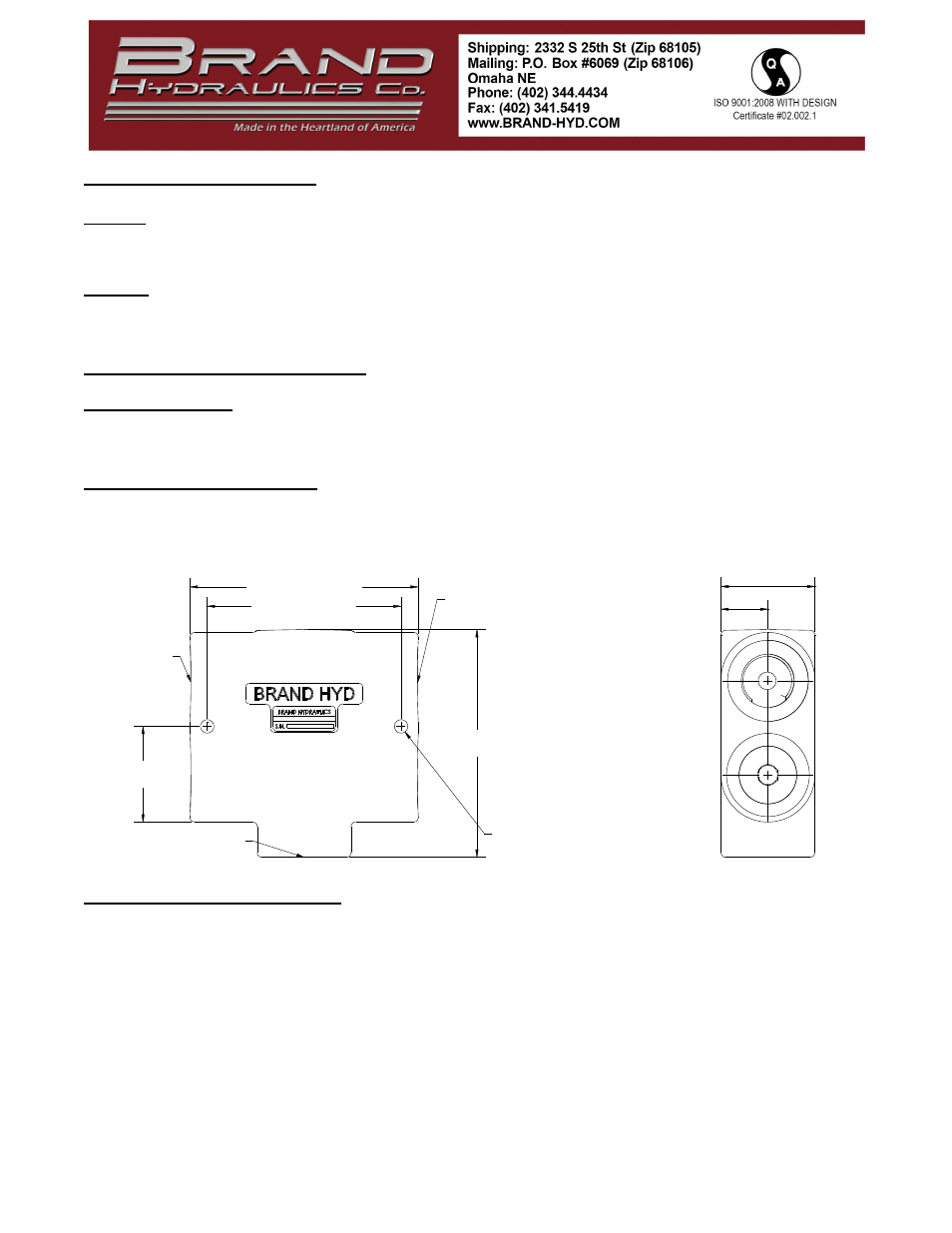

BG5, BGR5, & BGC5 DIMENSIONAL DATA (BG5 SHOWN)
SAFETY PRECAUTIONS:
 It is the purchaser’s responsibility to determine the suitability of any Brand Hydraulics Co. product for an intended
application, and to ensure that it is installed in accordance with all federal, state, local, private safety and health
regulations, codes and standards. Due to the unlimited variety of machines, vehicles and equipment on which our
products can be used, it is impossible for Brand Hydraulics Co. to offer expert advice on the suitability of a product
for a specific application. It is our customer’s responsibility to undertake the appropriate precautions, testing and
evaluation to prevent injury to the end-user.
 Overpressure may cause sudden and unexpected failure of a component in the hydraulic system, resulting in serious
personal injury or death. Always use a gauge when adjusting a relief valve.
