Toe Jack
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
E-mail: [email protected] Website: www.bvahydraulics.com
(*)- Items available only as Seal Kit. Replacement requires special skills, knowledge, and equipment. Only an authorized
service center may perform the repair and/or replacement of these items.
N/A - Not user serviceable
Item
Part Number
Description
Qty
1
186-3-1108-109
Saddle
1
2
522-2-0206-104 Return Spring
2
3
*
Dust Wiper
1
4
186-6-1810-304 Cylinder Fastener
1
5
*
O-ring
1
6
*
O-ring
1
7
186-6-1204-103 Guide Ring
1
8
N/A
Piston Rod
1
9
*
Back-up Ring
1
10
*
U-cup
1
11
*
Guide Ring
1
12
N/A
Base Assy
1
13
181-3-2100-103 Handle Assy
1
MODEL:
J13120 - 6 Ton Capacity
18
10
13
20
6
3
4
7
9
11
19
8
12
5
17
1
16
21
14
23
24
25
22
15
2
Item
Part Number
Description
Qty
14
226-3-1300-102 Handle Sleeve Assy
1
15
511-5-0012-016 Snap Pin
2
16
518-4-0070-307 Pin
2
17
* 505-9-0092-207 Oil Filler Plug
1
18
A20-4-1500-106 Hyd Cartridge Assy
1
19
*
Oil Seal
1
20
238-6-1701-403 Release Valve
1
21
226-4-1415-105 Pump Assy
1
22
N/A
Pump Piston
1
23
N/A
Pump Cylinder
1
24
*
O-ring
1
25
266-2-1402-108 Swivel Seat
1
*
186-3-9906-107 Seal Kit
1

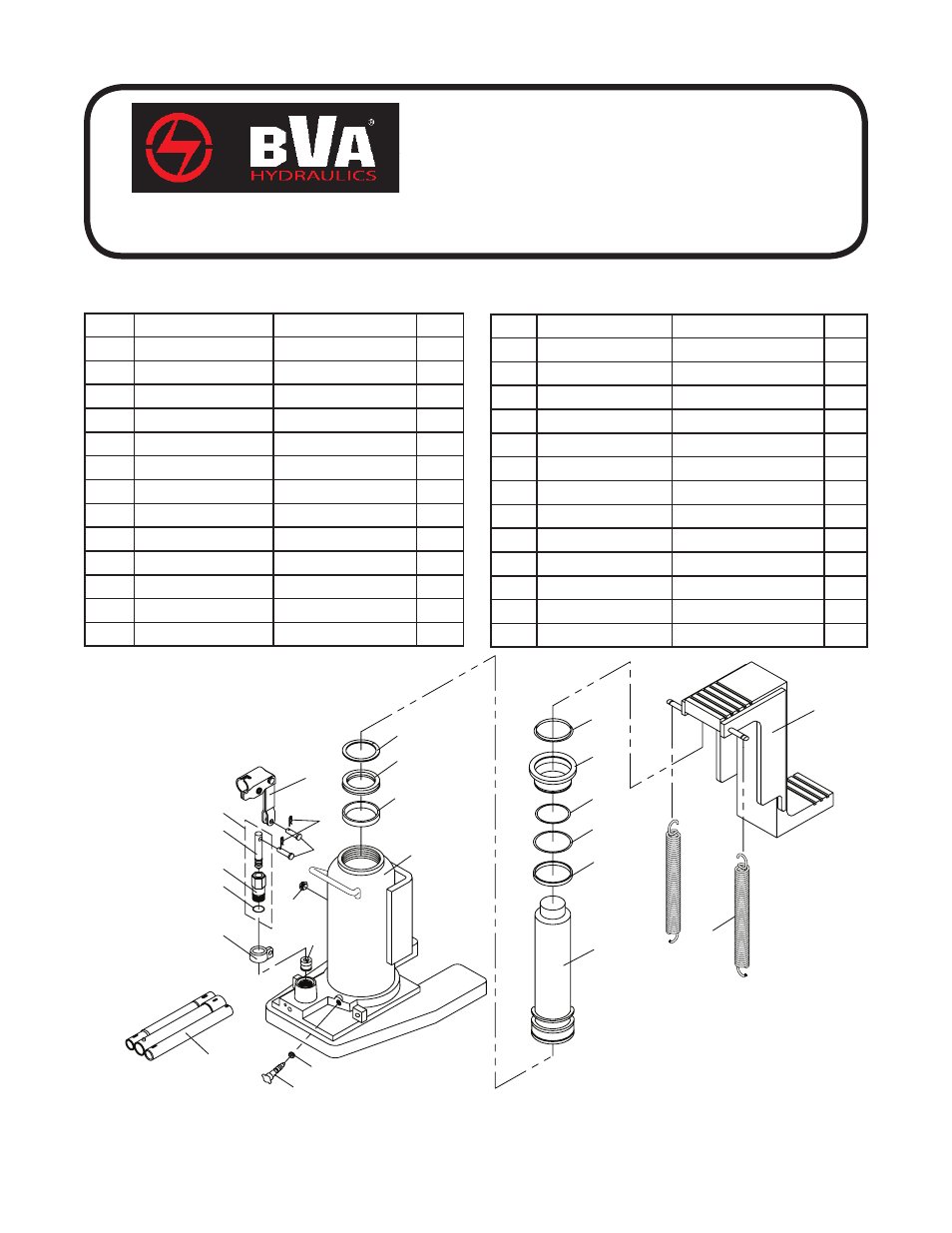

Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
