Bray RF15 & RF30 - Manual (Page 4)

Installation and Maintenance Manual
Series RF15-RF30 Ball Valves
Date: August 2011 / Page 4 of 5
®
A Subsidiary of BRAY INTERNATIONAL, Inc.
FLOW-TEK, Inc. Tel: 832.912.2300 © 2011 Flow-Tek, Inc.
8323 N. Eldridge Pkwy #100 Fax: 832.912.2301
Houston, Texas 77041 www.flow-tek.com
25
28
23
24
29
14
11A
15
18
19
26
26
1
5
11B
12
10
5
6
2
4
3
4
1
14
11A
15
16
17
20
21
22
30
4
3
4
6
2
25
27
12
11B
5
10
10
13
3” – 12” Valves
1” – 2” Valves

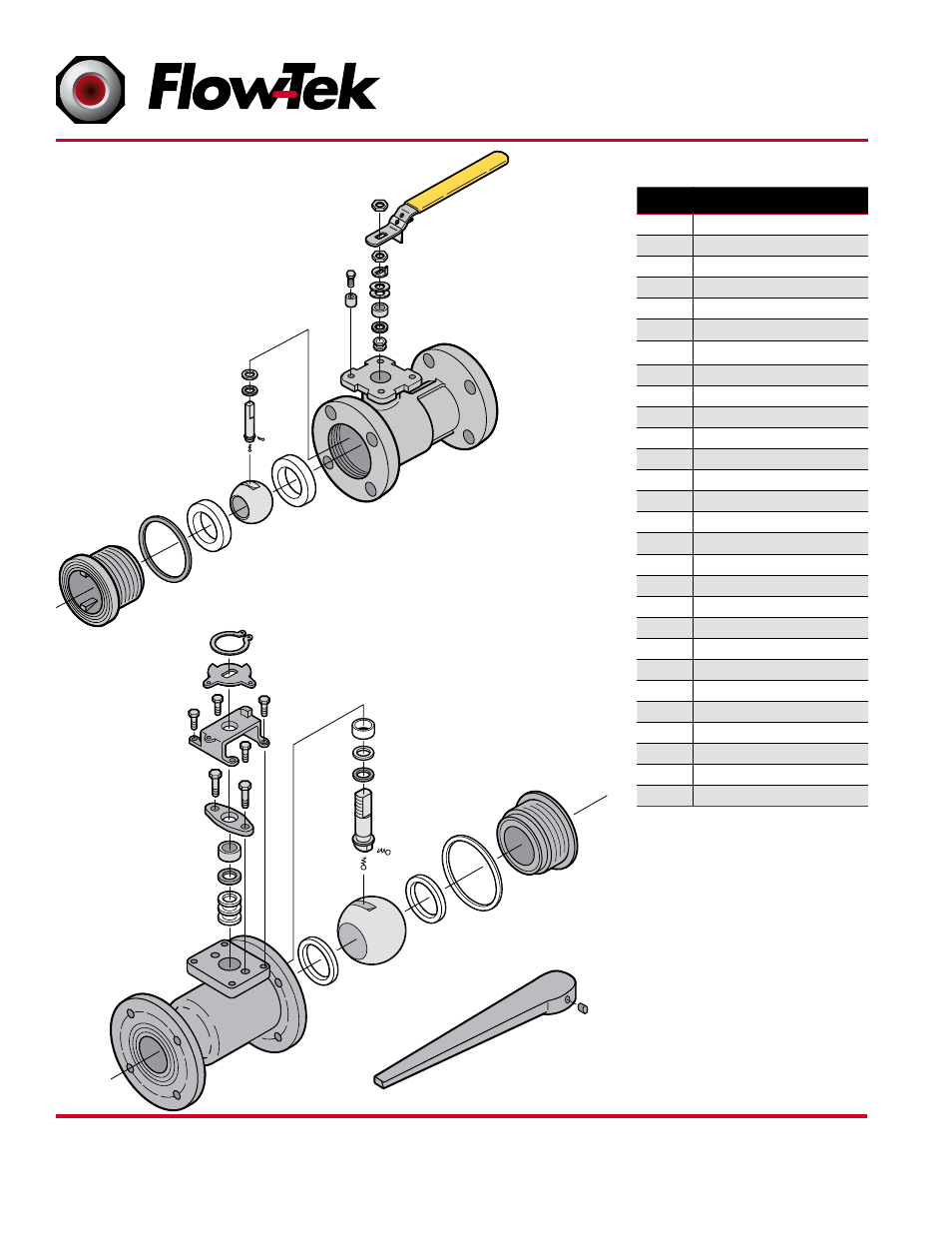

COMPONENTS
Item Name
1 Body
2 End Cap
3 Ball
4 Seat
5 Seat Support
6 Body Seal*
10 Anti-Static Device
11A Packing Protector*
11B Washer Protector*
12 Thrust Washer*
13 Stem Bearing*
14 Stem Packing*
15
Packing Gland Sleeve
16 Packing Gland Plate
17 Gland Bolt
18 Belleville Washer
19 Tab Washer
20 Travel Stop Housing
21 Housing Bolt
22 Travel Stop
23 Travel Stop Set Sleeve
24 Travel Stop Bolt
25 Handle
26 Lock Nut
27 Handle Bolt
28 Handle Sleeve
29 Locking Device
30 Snap Ring
* Parts included in repair kit
