MAX. INPUT VOLTAGE LEVEL

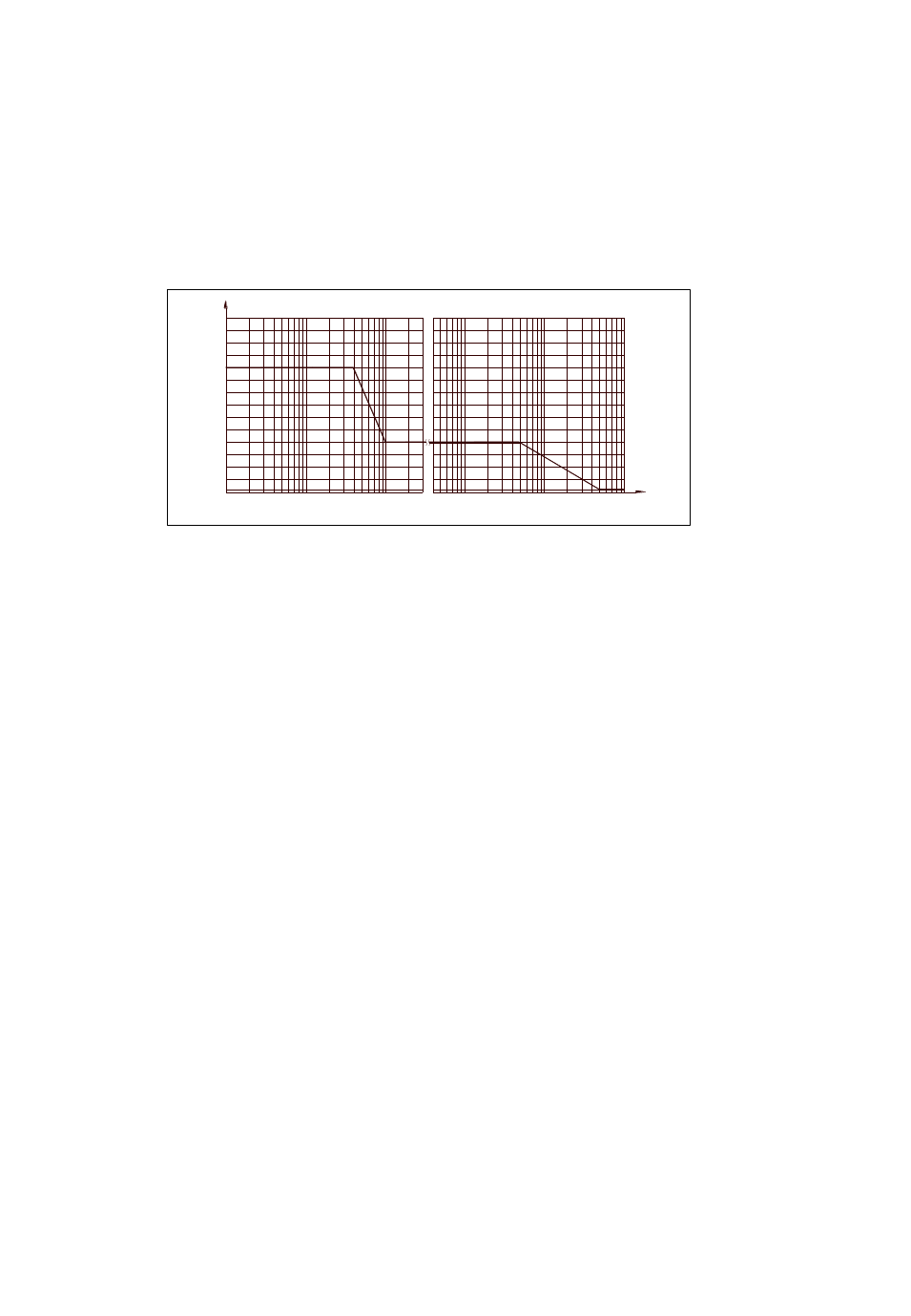

FIG 1. MAX. Input Level. (Input A,B)
 INPUT B. CHARACTERISTICS = Same as Input A
 TIME INTERVAL(A

B)

RANGE : 0.1 uSec-10 Sec(0.1 Hz-10 MHz)

LSD : 100 nSec

RESOLUTION : ± LSD

Trigger Error*

ACCURACY : ± LSD

Trigger Error

Time base error x T.l

MULTIPLIER : 1,10,100,1000 (Gate Time: 10 S,1 S,0.1 S,0.01 S)
 RATIO(A/B)

RANGE : 0.1 Hz to 10 MHz(input A)
: 0.1 Hz to 10 MHz(input B)

RESOLUTION : ± LSD ±(B TrIg. ERROR x FREQ. A)/N

ACCURACY : ±1 COUNT of A ± B TRIG. ERROR x FREQ. A.
300
M
AX
INPUT V
OL
TAG
E
(ACV & DCV)
250
150
200
100
50
25
FREQUENCY (Hz)
5
0 100 500 1K 1M 5M 10M 50M 100M
