13

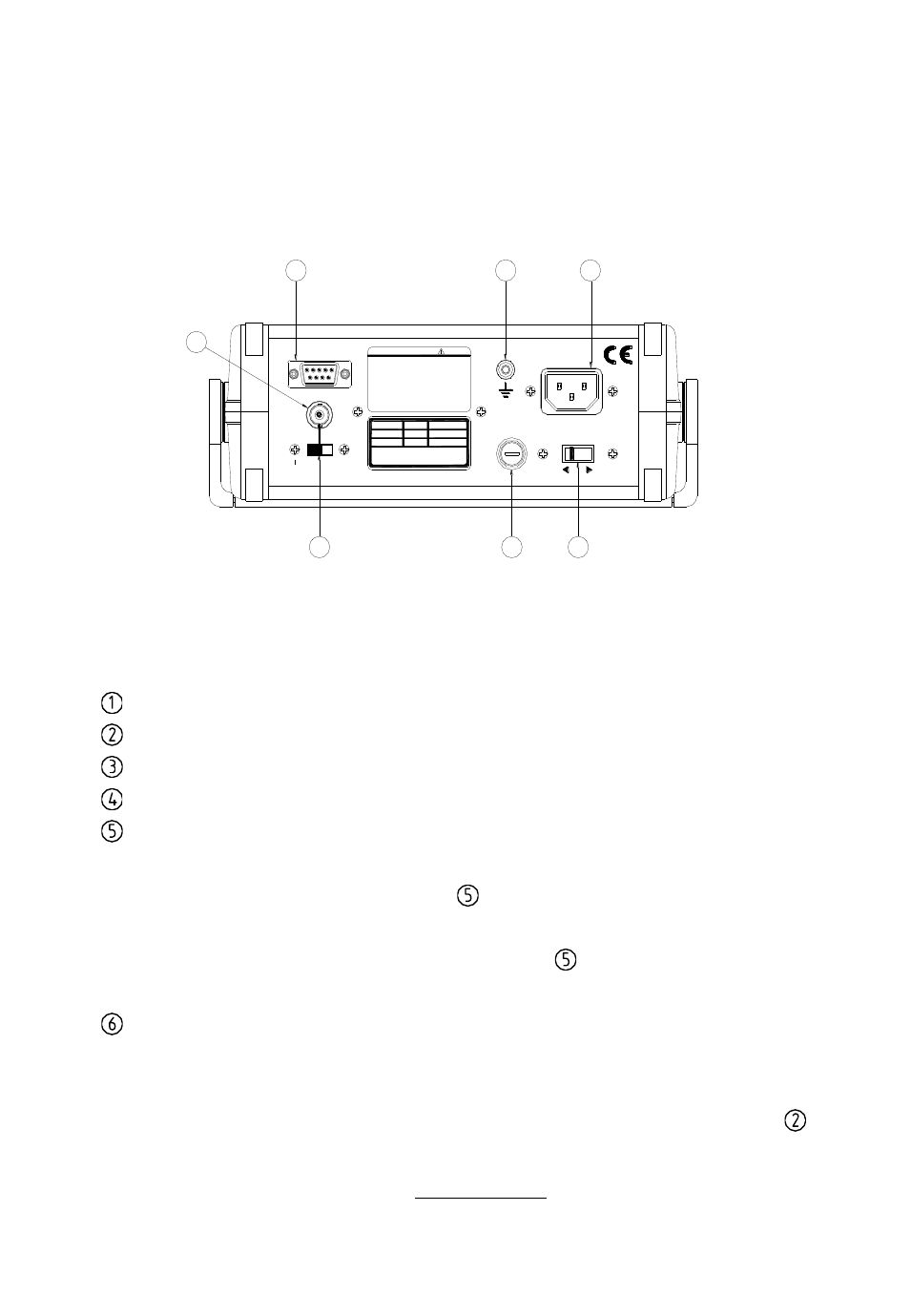

FIG (3) REAR PANEL
AC INLET: AC power input connector
VOLTAGE SELECTOR: Selects the AC Power (115 V or 230 V)
FUSE HOLDER: Replace fuse by unscrewing.
GROUND TERMINAL
INT/EXT TIME BASE SELECTOR:
Selects the source of the time base. EXT.STD. IN
sets up BNC as a nominal 600

input impedance
path for an external 10 MHz time base signal. INT.
STD. OUT sets up BNC to monitor the internal
time base signal.
INT/EXT TIME BASE BNC:
Provides a connector through which the internal time
base signal can be monitored or through which an
external time base signal can be applied (see item
above). The external signal should have a voltage
range of 1.5 V~5 V rms.
           

       
Made in Korea
POWER MAX
   
        
   
     
230V ~
115V ~
VOLTAGE
S/N :
0.2A F
0.5A F
FUSE

    
 

15W
15W
   


 
         
   
   
 

   

 
 
   
  
