4
Section 2 Operation
FRONT PANEL CONTROLS

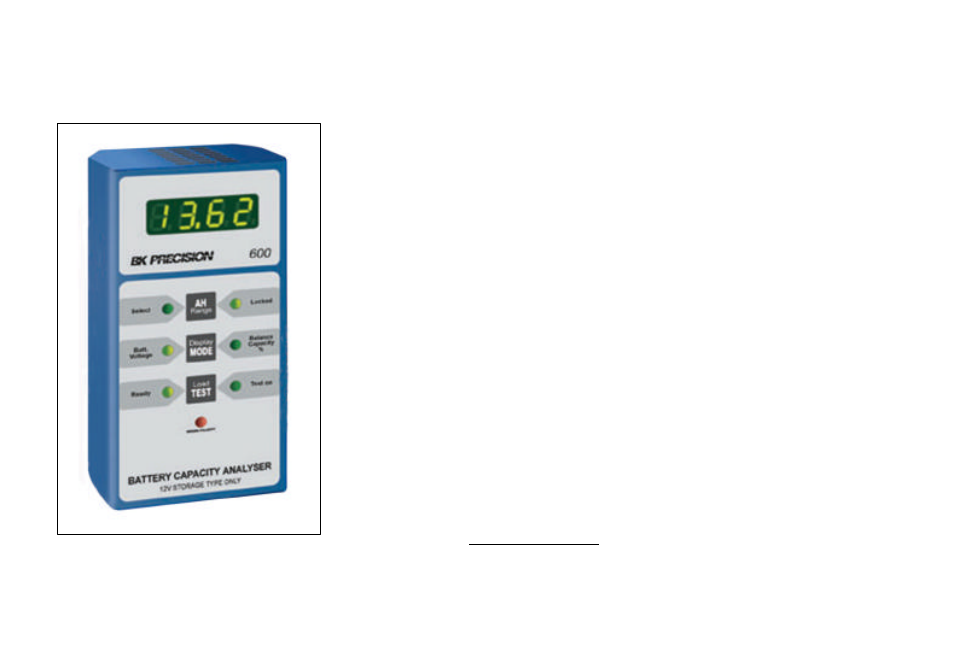

Refer to the Front view of the unit.
1) AH Range : With this key the user can select the
correct AH range according to the battery
under test.
2) Select LED: This LED glows to indicate that user can
select the AH range.
3) Locked LED: This LED is ON when the unit locks to a
particular AH range set by the user.
4) Display Mode : This key selects the display either as
No load voltageor % balance
capacity.
5) Batt. Voltage : When display indicates Batt. voltage this
LED glows.
6) % Balance Capacity: This LED glows when remaining capacity
is displayed.
7) Load Test: The test starts by pressing this key.
8) Ready:
When this LED glows steadily, it indicates
that the unit is ready to conduct a test.
9) Test On: This LED glows for approx. 2 sec. when
the battery test is carried out.
10) Reverse Polarity: If the unit is connected to a battery in
reverse polarity this LED
