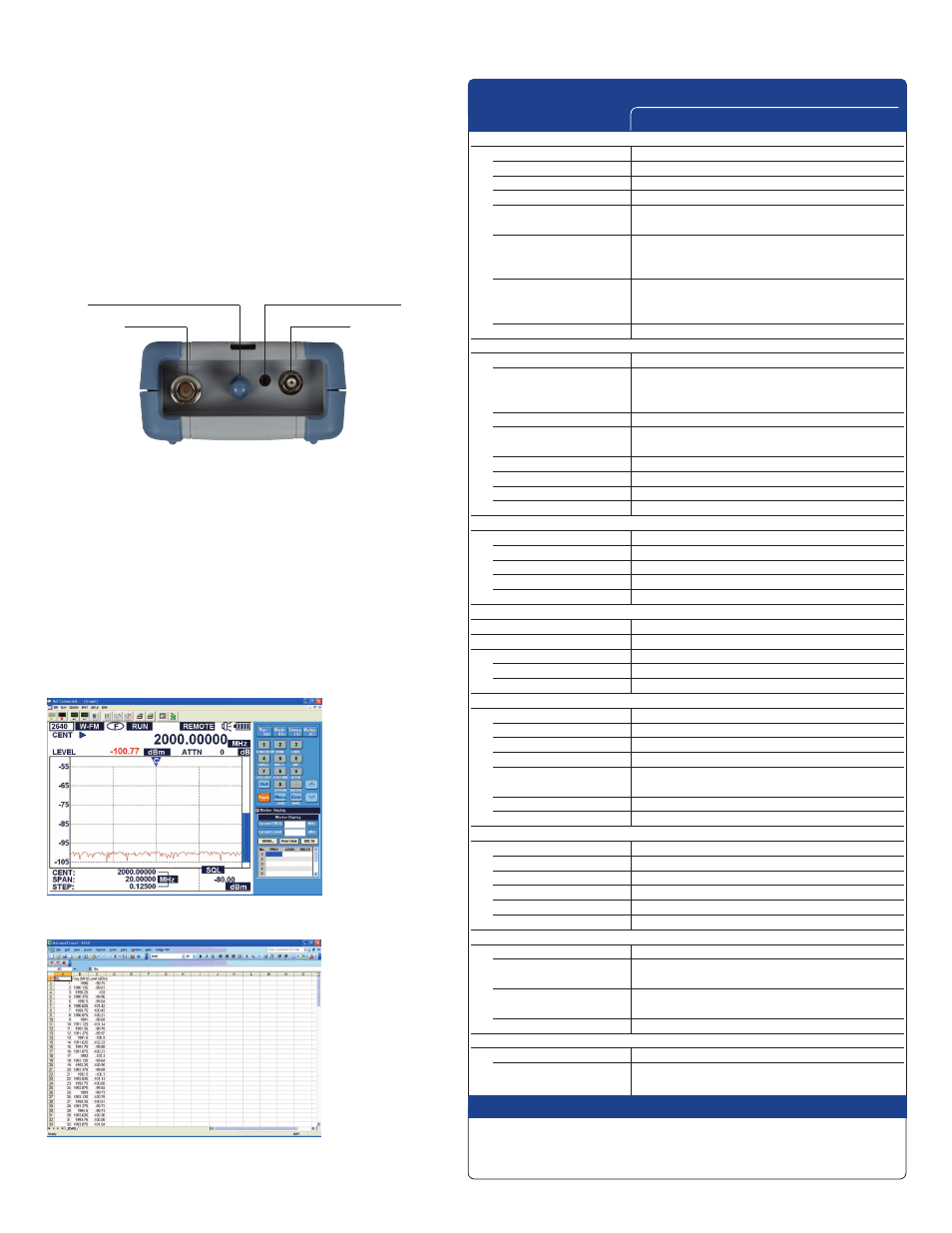

Handheld RF Field Strength Meter
Model 2640
FFrree qquueenn ccyy
Frequency Range 100 kHz to 2,000 MHz
Resolution Min. 6.25 kHz Multiples
Accuracy ± 4.5 PPM
W-FM / N-FM Wide FM : Approx. 180 kHz @-6 dB
/ AM / SSB Narrow FM : Approx. 12.5KHz @-6 dB
AM/SSB : Approx. 2.4 kHz @-6 dB
Step Range AM, SSB, Narrow FM : 6.25 kHz, 12.5 kHz
Wide FM : 6.25~125 kHz (Multiple of 6.25 kHz)
125~2500 kHz (Multiple of 125 kHz)
Span Range AM, SSB, Narrow FM : 1 MHz, 2 MHz
Wide FM : 1~20 MHz (Multiple of 1 MHz)
20~400 MHz (Multiple of 20 MHz)
Frequency Selection Mode Center, Start/ Stop, Span
A Am mpplliitt uuddee
Measurement Range -45 dBm to –110 dBm
Average noise Level Wide FM : -100 dBm Max.
Narrow FM : -110 dBm Max.
AM/SSB : -100 dBm Max.
Amplitude Units dBm, dBmV, dBuV
Reference Level Accuracy ±3.0 dB (Typical) @ 400 kHz to 600 kHz
±2.0 dB @ over 600 kHz
Reference Level Range 0 dBm to –80 dBm
Log Scale 0.2 dB/DIV min, in 0.25 dB Span (5 Display Division)
Internal Attn 10 dB
Internal Attn Accuracy ±1.0 dB (@25)
SSw wee eepp
Speed Min. 500 msec
Trigger Source Narrow FM / Wide FM / AM / SSB
Trigger Mode Free Run /Single Run /Continuous /Wave Squelch Run
Trigger Level TTL Level
Marker Mode Marker / Delta Marker
M Mee m moorryy
Trace & Setup Storage Max 100 Waveforms and 100 States
D Diissppllaayy
Type Mono STN LCD
Display Resolution 192 Pixels X 192 Pixels
LCD Light On / Off
FFrree qquueenn ccyy C Coouunntt eerr
Frequency Range 35 MHz to 2,000 MHz
Resolution 7 Digits
Accuracy ±50 PPM ±1 COUNT
Sampling Time 1 sec
Input Sensitivity 35 MHz to 2,000 MHz : 150 mVrms
20 MHz to 1,000 MHz : 100 mVrms
Input Impedance 50 Ω
Max. Input Voltage 5 Vrms Max.
SSppeeccttrruum m IInnppuutt P Poorrtt
RF Input Connector N type Female, 50Ω
Max Input Level Max. +10 dBm, 5V rms
O Oppeerraatt iioonn E Ennvv iirroo nnm meenntt
Operating Temperature 0º C to 40º C
Humidity 35% RH to 85% RHP
Storage Temperature 10º C to 50º C
P P oow weerr SSoouurrccee
Battery Power Source AA Type Ni-MH Rechargeable Battery × 6 PCS
Battery Specification AA Type 1.2 V, 2,700 mAh Rechargeable Nickel
Metal Hydride Battery
Adapter SMPS Type AC Adapter (DC 12 V Output)
Car-Adapter (DC 12 V Output)
Auto Power On/Off Off/ 5 min./ 10 min./ 20 min./30 min.
P P hhyyssiiccaall SSppeecciiffiiccaattiioo nnss
Dimension 4 ”(W)×9 ”(H)×1.8 ”(D)
Weight Approx. 0.66 kg(1.45 lbs)
(including Antenna, except Battery)
Supplied: Antenna (Receive Only), SMPS Type AC Adapter, Fuji-AA type NI-MH Rechargeable
Battery (6 PCS, 1.2 V 2,700 mAh), Manual, Coaxial Cable, Earphone, Carrying Case, Carrying
Belt, RS-232C Cable, Adapter(N-BNC), Software for PC Application
The included AK2640 software and interface cable allows full control of the 2640
via a PC through the RS232C interface. The software allows the saving, recalling
and analyzing of current and saved waveforms. The 2640 can save up to 100
waveforms and states in to it’s internal memory.
Screenshot of the AK2640 software
Screenshot of the exported CSV data
R RF F F Fiie elld d S Stt rre en ng gtt h h A A n na ally yzz e err
■ Spectrum: Peak Search, Marker to Center, Channel Power
Function
■ Internal Attenuation: The input range can be extended by
enabling the internal 10 dB Attenuation function
■ Sweep Mode: Single Run, Free Run, Squelch Run Selectable
■ Squelch Function: The Squelch Level may be adjusted across the
full dynamic range.
F Frre eq qu ue en nc c y y C C o ou un ntt e err
The 2640’s built in frequency counter is independent from the field strength
analyzer and measures the signal applied to the external BNC connector
■ Frequency range: 35 MHz to 2,000 MHz
■ No. of digits: 7 digits
■ Resolution: 1 kHz
Volume Earphone
RF Input
Type N Frequency
Counter
P P C C S So off tt w w a arre e
▲
▲
▲
Specifications
model
One Year Warranty
2640
