True RMS Bench Multimeter
Model 5492B
Versatile tools ▲
The 5492B provides an internal buffer capable
of storing up to 512 readings. Buffer storage
operation can be enabled via front panel or
remote command. The buffer fills up with the
requested number of readings at a rate of up to
57 readings/sec and then stops. The instrument
automatically calculates statistical information
based on the stored readings such as minimum,
maximum, or average reading, and standard
deviation, which can then be retrieved along with
the readings via the front panel or remote
command.
Fast Buffering with Built-in
Statistics
The limit operation lets you set and control the
values that determine a HI / IN / LO status of
subsequent measurements. The meter can be
configured to emit an audible alarm when
readings are outside of the configured limit.
Limit Operation

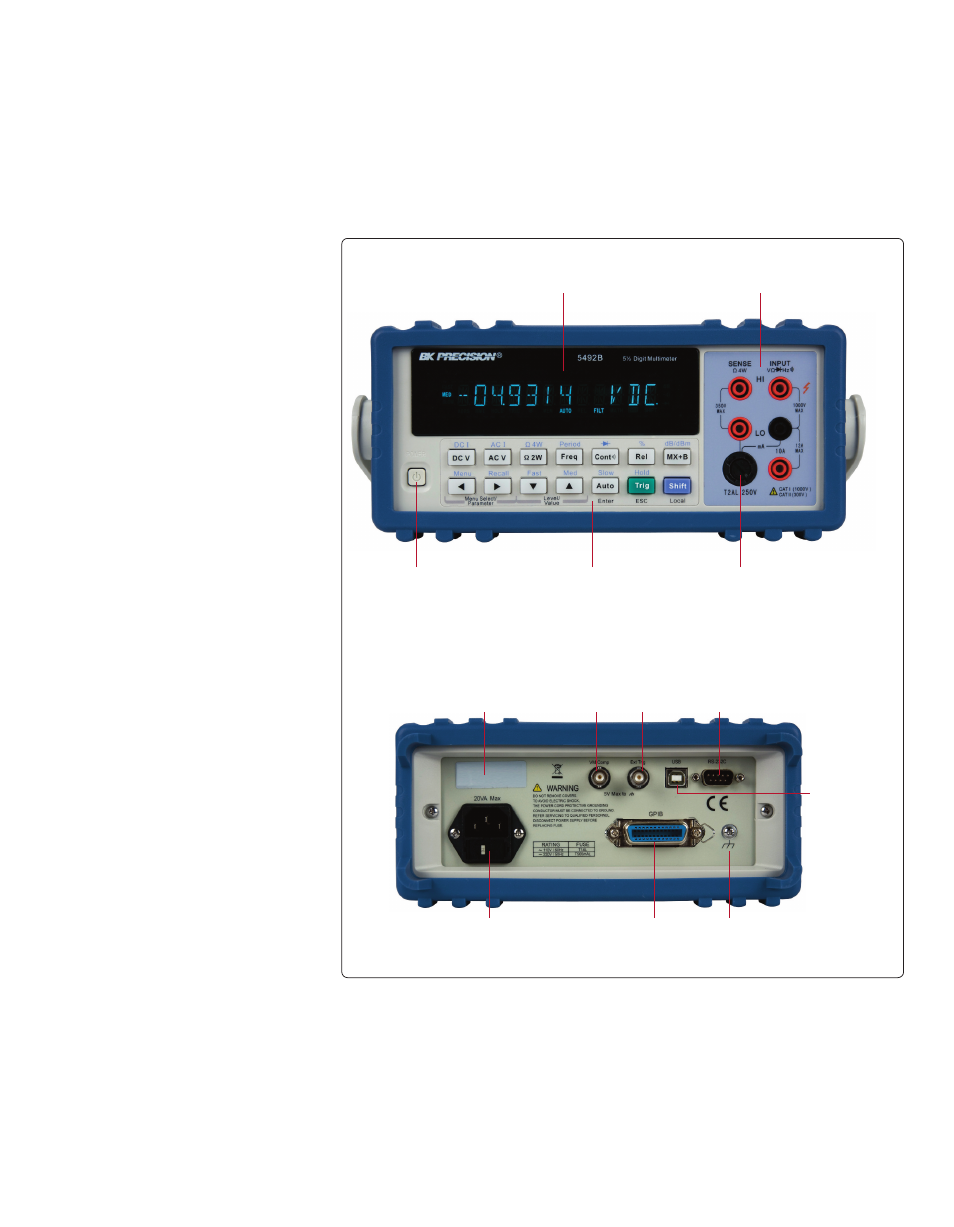

Rear panel
Front panel
A variety of advanced trigger options are
available: Manual Trigger via a front panel button
press, Bus Trigger sending a *TRG command
via PC interface, External Trigger using the EXT
TRIG input terminal on the rear panel.
Additionally, a trigger delay can be programmed
after an event detection, and a VM Comp output
is available to indicate the instrument’s
completion of a present measurement.
Advanced Triggering
Input banana terminals
mA Fuse socket Interface keypad Power button
Bright VFD display
GPIB (IEEE-488) interface
(model 5492BGPIB)
Chassis ground
screw terminal
USB interface
RS-232
(Serial) interface
External
Trigger BNC
input terminal
Easy operation ▲
Serial number label
Power line
fuse holder
VM Comp
(Voltmeter
complete) BNC
output terminal
