4. Operation Instructions
4.1 Basic Operation
NOTE: When in operation, the cable can be bent into a certain
shape. This may help you operate the cable into confined areas.
CAUTION: Keep the cable away from heat, oil, sharp edges or
moving parts. Replace damaged cables immediately.
(1) To turn the tool on, hold the handheld display unit with LCD
screen facing you.
(2) Press Power button to turn on the screen. The power indicator light
will illuminate green. The real-time image will appear on the LCD
screen.
(3) Press LED Lighting Adjusting buttons to adjust LED light
intensity as needed. Press DOWN arrow button to adjust dim
LED lighting while press UP arrow button to adjust bright LED
lighting.

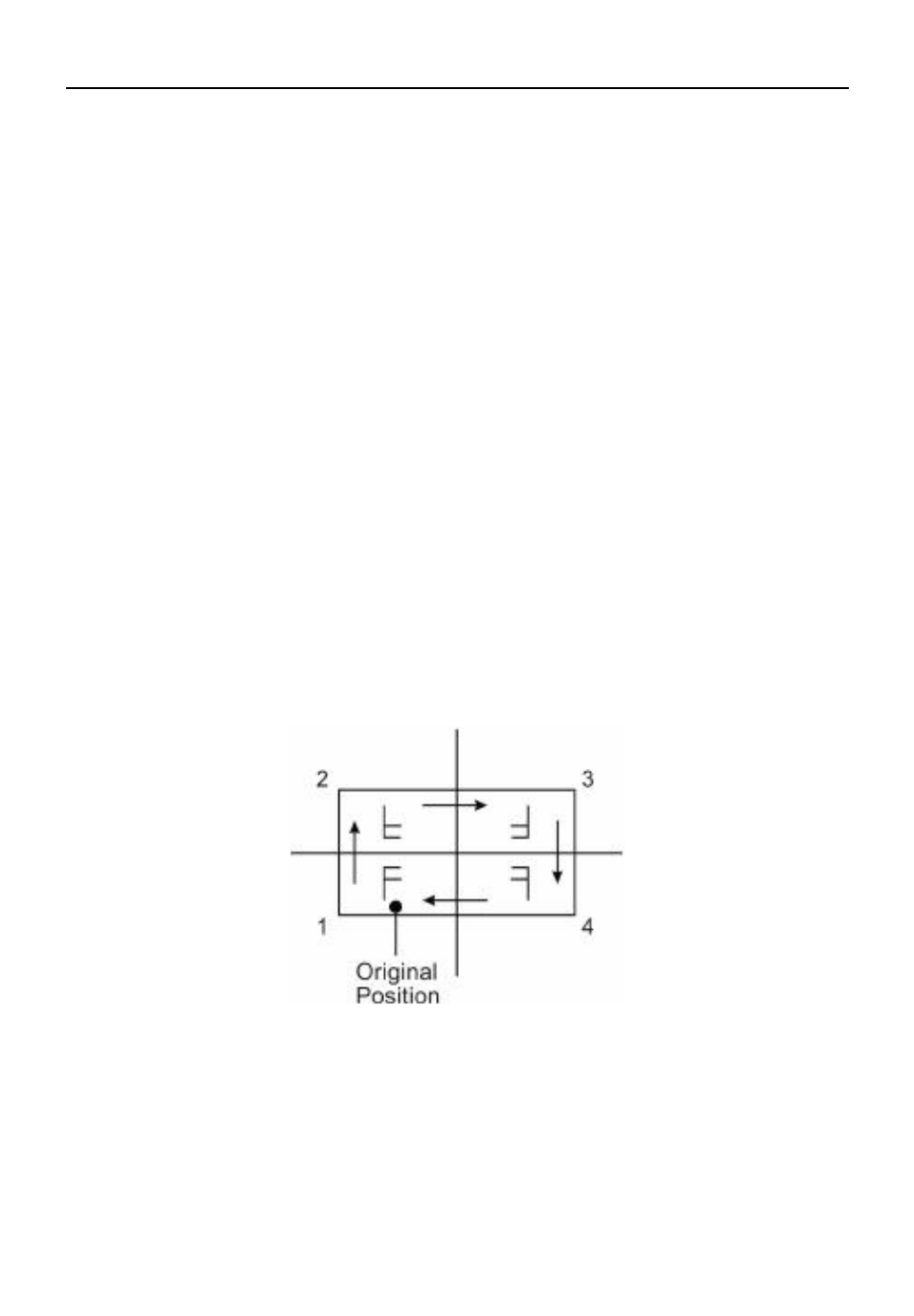

(4) Press Reverse button to control the direction of the real-time image.
The real-time image will do a horizontal reverse or vertical
reverse. (See Fig. 15)
Fig. 15
(5) Use the supplied accessories to provide application flexibility.
(6) Connect the supplied video-out cable to video-out port of the tool
and the other end of the cable to the video-in port of a TV to view
a high quality real-time image.
