NSG 600
Technical Data
System supply
- 110/220 V (± 20%) 50/60 Hz
switchable on main frame,
connection via 6 A equipment plug
EUT supply
- 15 + 264 VAC
15 + 65 Hz/16A max
65 + 500 Hz/6 A max
- 5 + 50 VDC/16A max
- Connection via 16A equipment plug
- Decoupled against generated transient
pulses being fed onto the supply
network
Test supply output
- Supply voltage with the selected inter-
ference superimposed via the mains
socket (country specific)
and safety banana plugs
HV pulse output
- Pulses without supply voltage:
Fischer 5 kV coaxial socket
(e. g. for data line coupling devices)
Remote control
- RS 232-C interface with supply for
opto-link: Cannon 25 pol.
Plug-in outfit
- 1 to 4 pieces
Dimensions
- Width 448 mm
( mounting in 19' rack possible)
Height 266 mm
Depth 455 mm (without handles)
Weight approx 20 kg

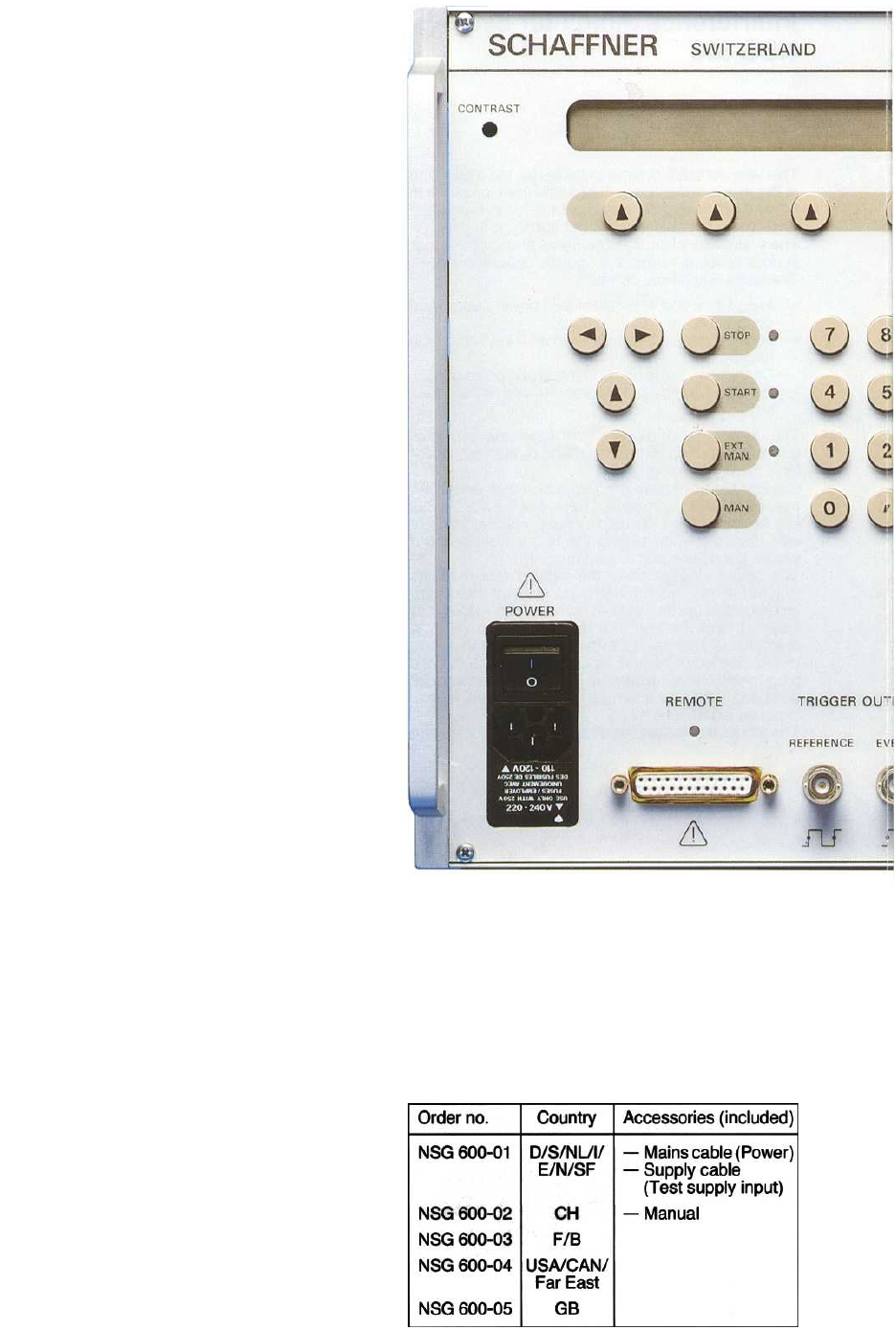

Basic equipment NSG 600
