• All test parameters under full software control via
KeyTek BurstWare
™
:
Polarity
Burst Voltage
0-360° Line Sync
Frequency
Burst Duration
Coupling Modes
Period Test
Duration
• Burst Voltages from 200V to 4.4kV
• IEC specified 5ns/50ns impulses into 50 ohms- also
meets the proposed 5/100ns requirement into a high
impedance.
• 50 ohm source impedance
• Built-in pulse monitor, attenuated to 1kV/V
for convenient monitoring without the need for
high voltage probes.
• Real World EFT options including Chirp and
frequencies to 2MHz.
ECAT
®

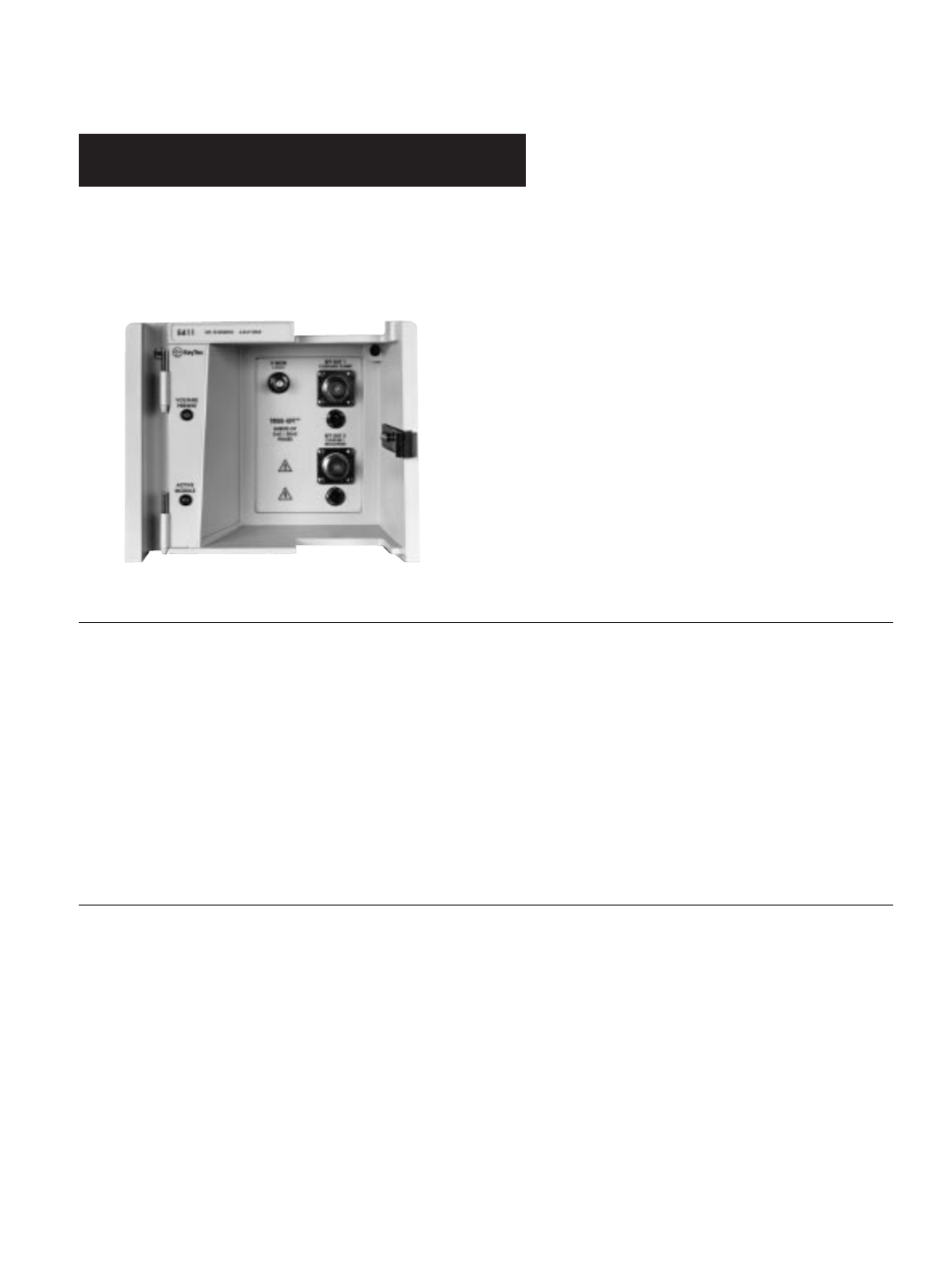

Model E411
EFT/Noise
™
Burst Simulator for
IEC 1000-4-4 to 4.4 kV
A plug-in module for ECAT
systems for testing in accordance
with IEC 1000-4-4 (IEC 801-4).
FEATURES
• The ECAT is configurable as a compact,
standalone system with one test capability or as
an integrated, multiple capability tester.
• Unparalleled safety features for high voltage
testing, including a complete interlock system that
not only disables simulator operation if activated, but
completely removes AC mains power from the EUT,
when using any KeyTek AC mains coupler/decoupler.
• Automatic report generation using KeyTek’s
exclusive Windows
®
-based software.
• Modular system construction provides the ability to
upgrade test capabilities as requirements change or
evolve.
• Single port testing for Surge, EFT and PQF
™
mains
coupled disturbances allows changing test modes
without switching off power to the EUT. This avoids
lost time due to re-initializing the EUT between tests.
SYSTEM BENEFITS
