Atec Ludeca-OptalignPlus - Manual (Page 3)

Alignment condition
determined with only three keys
2. Measure
3. Results
1. Dimensions
A case full of confidence
Like the components inside it, this
lockable, purpose designed case is
rugged and shock proof. Just the
ideal case for industrial environ-
ments.

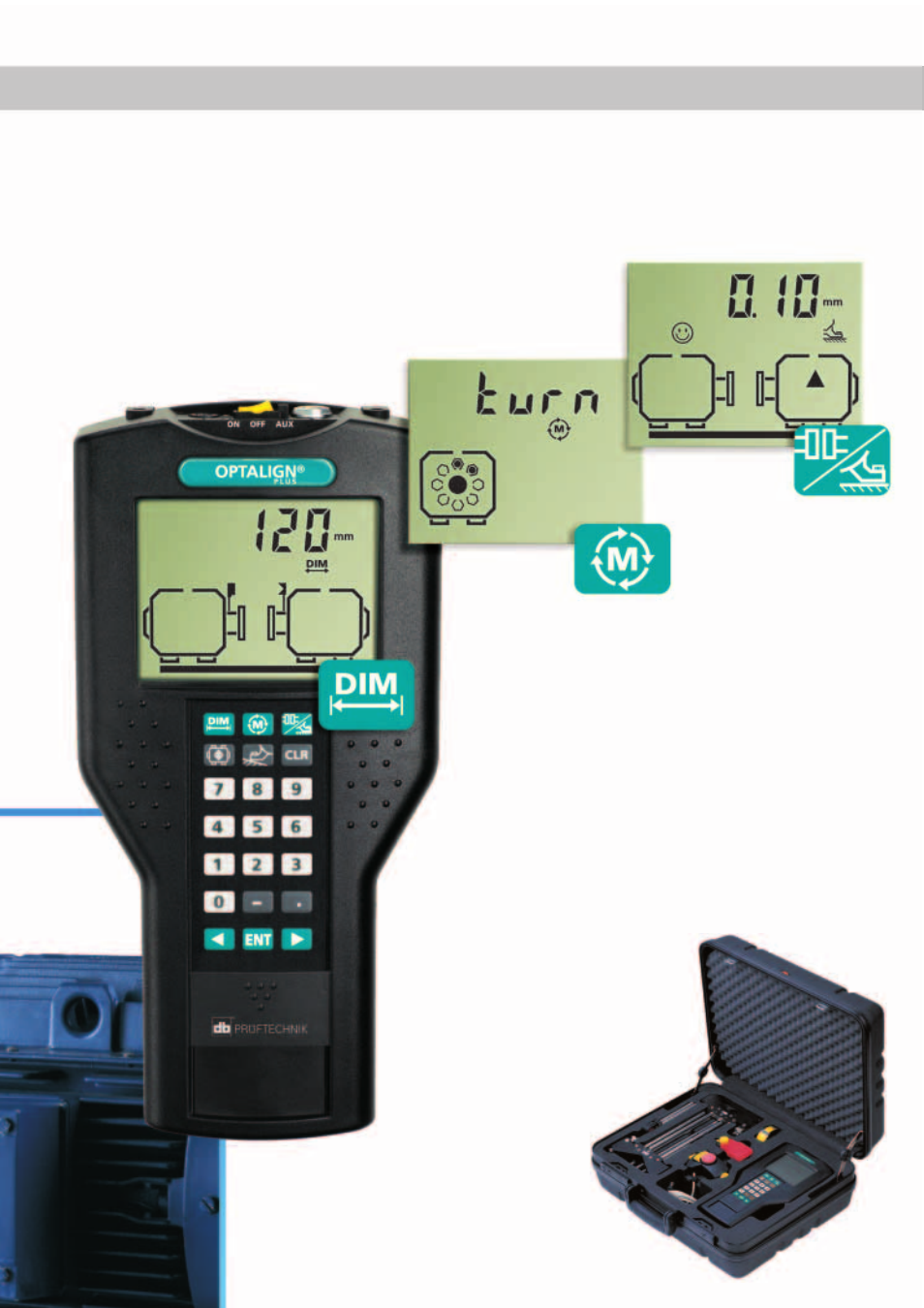

Enter machine dimensions
as prompted on the display
using the robust keyboard.
The auto start / stop capa-
bility allows continuous
shaft rotation to start at any
position – in any direction.
The alignment condition is
displayed with a smiley,
foot correction values, cou-
pling gap and offset.
