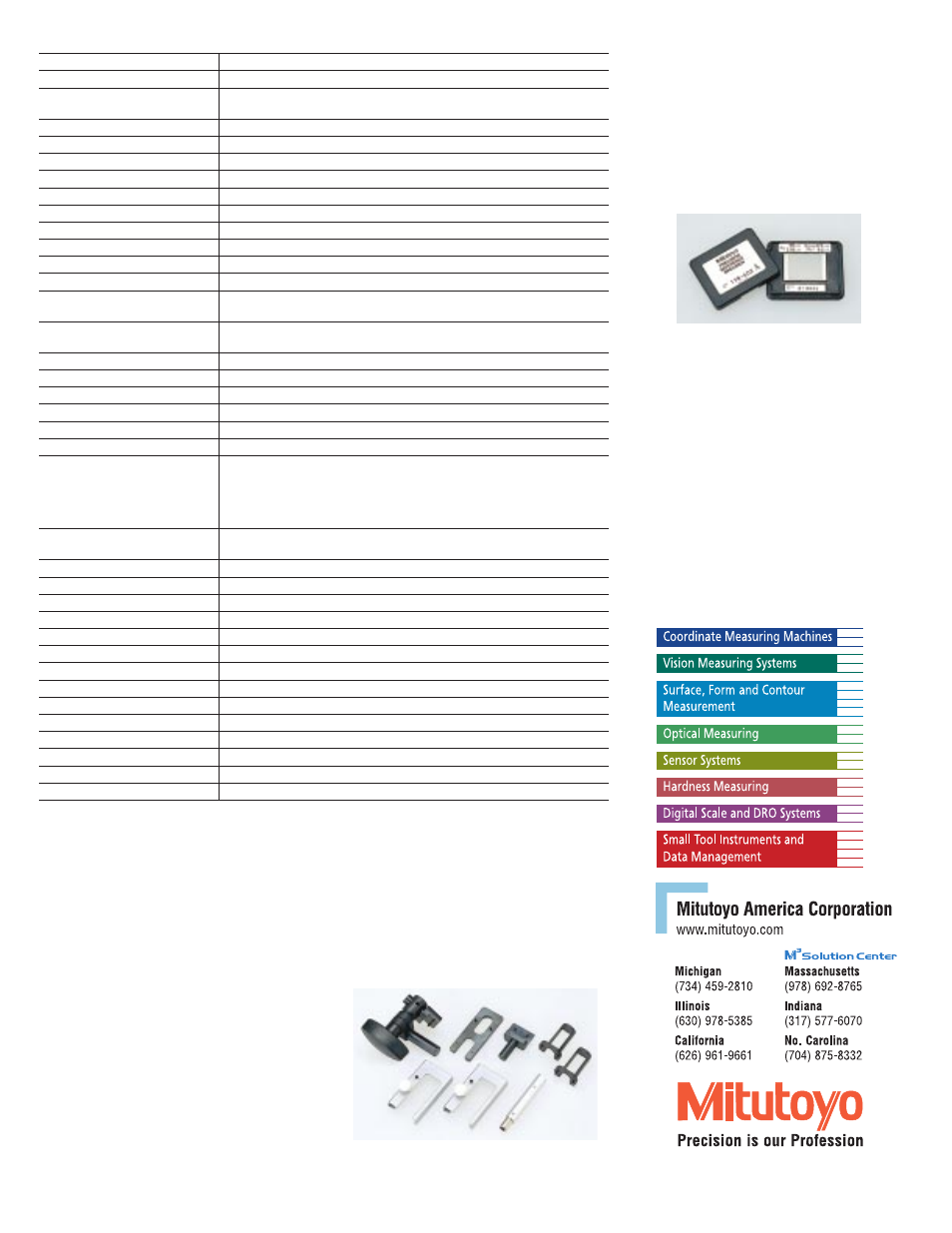

SJ-201P Specifications
Order No. 178-923A
Type inch (mm)
Drive Unit
Drive speed Measuring: .01"/s (0.25mm/s), .02"/s ( 0.5mm/s), Returning: .03"/s (0.8mm/s)
Evaluation length* 1 .49" (12.5mm)
Mass .42 lbs. (190g)
Detector provided 178-390
Detecting method Differential inductance
Measuring range 13780µin (350µm) (-7880µin/-200µm to +5900µin/+150µm)
Material of stylus Diamond
Radius of skid curvature 1.57" (40mm)
Mass .04 lbs. (18g)
Stylus tip radius 200µin (5µm)
Measuring force 4mN
Display Unit
Assessed profile Primary profile (P), Roughness profile (R), DIN4776 profile
Roughness parameter Ra, Ry, Rz, Rq, S, Sm, Pc, R3z, mr, Rt, Rp, Rk, Rpk, Rvk,
Mr1, Mr2, A1, A2, Vo (can be customized)
Roughness standard JIS, DIN, ISO, ANSI
Sampling length (L) .01", .03", .1" (0.25mm, 0.8mm, 2.5mm)
Number of sampling spans x1, x3, x5, xL* 1
Digital filter 2CR-75% (without phase compensation), PC-75%, PC50% (Gaussian)
Cut-off lc .01", .03", .1" (0.25mm, 0.8mm, 2.5mm)
Length ls 100µin, 320µin (2.5µm, 8µm)
Resolution/range Auto/depending on the measurement range
16.4µin/14000µin (0.4µm/350µm)
4.1µin/4000µin (0.1µm/100µm)
2.0µin/2000µin (0.05µm/50µm)
.5µin/400µin (0.01µm/10µm)
Displaying range
Ra, Rq .4µin - 4000µin (0.01µm - 100µm)
Rz, Ry, Rp, Rt, .8µin - 13780µin
R 3 z,Rk, Rpk, Rvk (0.02µm - 350µm)
Pc 6.35 - 12700/inch (2.5 - 5000/cm)
mr 1 - 100%
Sm, S 80µin - .16" (2 - 4000µm)
Mr1, Mr2 0 - 100%
A1, A2 0 - 15000
Vo 0.000 - 10.00(mm 3 /cm 2 )
GO/NO-GO judgment Upper and lower limit values can be specified.
Power supply Via AC adapter/built-in rechargeable battery
Rechargeable battery Charging time: 12 hours (for 500 measurements)
Auto-sleep (turning off) After 30 seconds without operation
Data output Via RS-232C interface unit, SPC output, PC output, Printer output
Mass .64 lbs. (290g)
*1 Evaluation length can be specified arbitrarily in the range from .01" (0.3mm) to .49" (12.5mm).
Standard Accessories
12BAA303 Connecting cable (1m)
178-602 Roughness specimen (inch/mm)*
*Either of them supplied.
353134 Calibration stand
538612 Phillips screwdriver
12BAA304 Carrying case
99MBB079A User's manual (for SJ-201P)
99MBB081A One-sheet manual
526688 AC adapter
Optional Accessories
178-391 Detector for soft materials
(Stylus tip radius: 10µm)
178-392 Small hole detector (ø4.5mm)
178-393 Small hole detector (ø2.8mm)
178-394 Deep groove detector
178-395 Detector for low pressure type
(Stylus tip radius: 2µm, Measuring force:
0.75mN)
936937
SPC cable (1m)
965014 SPC cable (2m)
12AAA208 RS-232C connecting cable
12AAA216 Support foot set (pair)
12AAA217 Nosepiece for flat surface
12AAA218 Nosepiece for cylindrical sur-
face
12AAA219
Vertical positioning adapter
12AAA220 Magnetic stand adapter
(3/8" DIA. stem)
12AAA221 Magnetic stand adapter
(Ø8mm stem)
12AAA222 Height gage adapter (mm)
12AAA233 Height gage adapter (inch)
12AAA210 Extension rod (50mm)
178-033 Setting attachment:V type
178-034 Setting attachment: Slider type
178-035 Setting attachment: Inside
diameter type
178-241-2A Display unit for SJ-301
Roughness specimen
