Hipotronics has a policy of continuous product improvement. Therefore we reserve the right to change design and specification without notice
TDR1150-DS / 03.2009

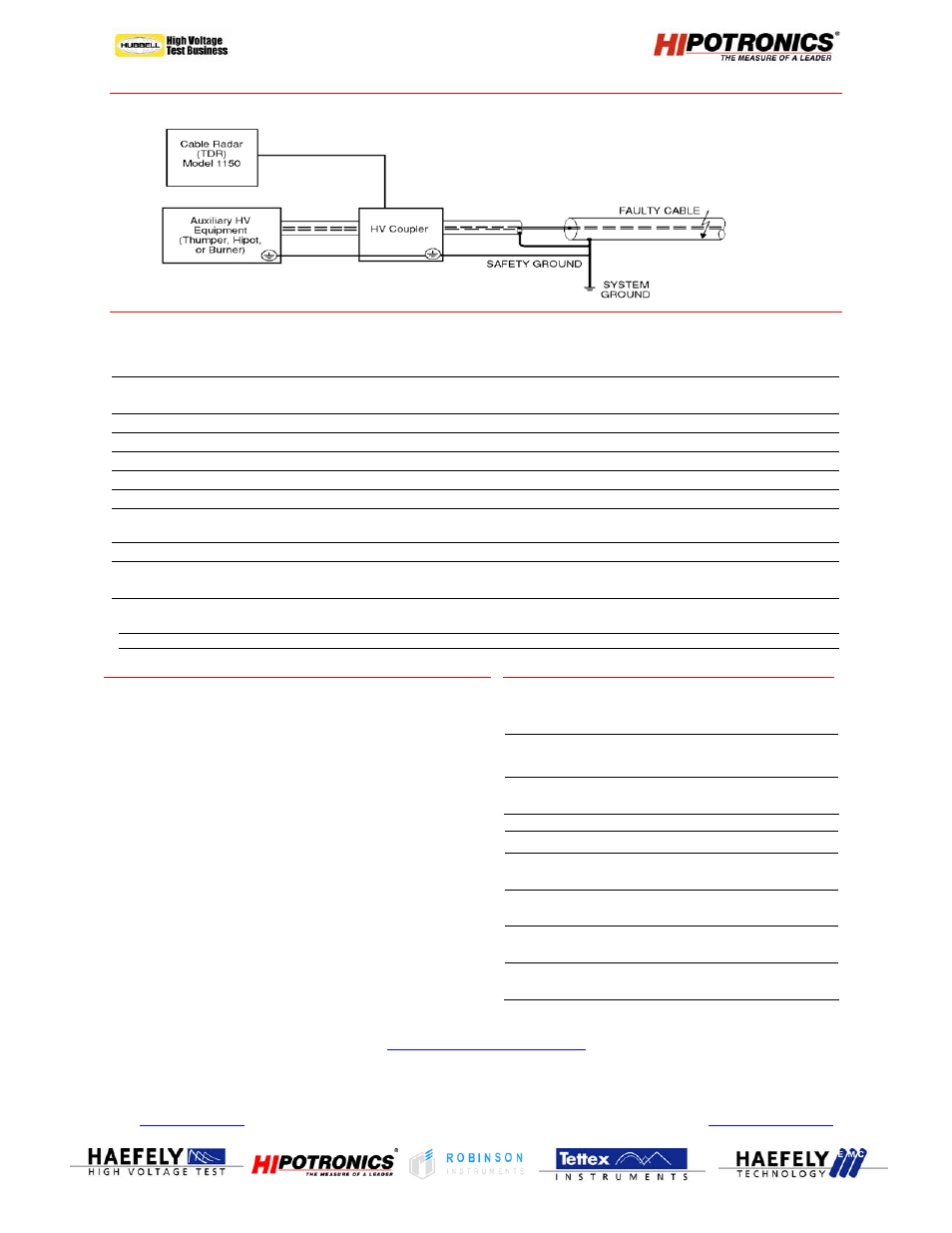

MEASURING SETUP DIAGRAM
TECHNICAL SPECIFICATIONS
General
Power Supply
Battery operated
Charger input
120 V, 50/60 Hz for -A version
230 V 50/60 Hz for –B version
Pulse Characteristics
Pulse Amplitude
25V into 50 Ω
Pulse Width
100ns to 20µSec
Input Protection
480 V AC
Range Time
1.28 µSec to 0.66 mSec
Distance
1 foot to 196,000 feet
Measurement Accuracy
Sample Rate 100MHz
Resolution 2.5 feet (10nSec)
Operational Modes
Arc Reflection, TDR Direct, current Pulse
Storage
Stores 16 sets of 3 traces
or 6 pre-recorded setups with information and 10
sets of 3 trace signatures
Monitor
LCD Display 7.0 inch
Environment Operating
Temperature
Storage Temperature
10°F to 122°F (-12°C to 50°C)
-40°F to 140°F (-40°C to 60°C)
Weights and Dimensions (W x H x D, net weight, ship weight)
TDR1150
14” x 9.5” x 6” (360 x 240 x 150 mm)
15 lbs (7 kg)
25 lbs (11.3kg)
SCOPE OF SUPPLY
Qty. 1 TDR1150 in portable, water resistant case
Qty. 1 100/240 V, 12 Vdc power supply (PN211212), with 6 ft (1.8
m) cord
Qty. 1 RG58/U BNC-BNC cable (PN20097), 15 ft (4.6 m)
Qty. 1 BNC/clip cable (PN210946), 2.5 ft (0.76 m)
Qty. 1 Serial interface cable (PN210947), 6.5 ft (2 m)
Qty. 1 Operations Manual and TDR-PC interface software
Qty. 1 Calibration Certificate
ORDERING INFORMATION
System
Time Domain Reflectometer
TDR1150-A
TDR1150-B
TDR Retrofit Kit to upgrade
existing with TDR1150.
TDR-1150-RTRFT
Accessories
Power supply for TDR-1150
1150-PS
HV Coupler to protect TDR from HV
of cable fault locator.
HVC4100 Series
Cable Fault Locaters (Thumper) 30
(8µf) and 70 kV (12 or 24 µf).
CF Series
Controlled Energy Thumpers 1500 J
or 2000 J and 8/16/32 kV output.
CET Series
HV Cable Rack with 125 ft of 70 kV
cable and 125 ft of safety ground.
8100
