FRAX 150
Sweep Frequency Response Analyzer
UK
Archcliffe Road, Dover
CT17 9EN England
T +44 (0) 1 304 502101
F +44 (0) 1 304 207342
[email protected]
UNITED STATES
4271 Bronze Way
Dallas, TX 75237-1019 USA
T 1 800 723 2861 (USA only)
T +1 214 333 3201
F +1 214 331 7399
[email protected]
Registered to ISO 9001:2000 Cert. no. 10006.01
FRAX150_DS_en_V04
www.megger.com
Megger is a registered trademark.
Specifications are subject to change
without notice.
OTHER TECHNICAL SALES OFFICES
Valley Forge USA, College Station
USA, Sydney AUSTRALIA, Täby
SWEDEN, Ontario CANADA, Trappes
FRANCE, Oberursel GERMANY, Aargau
SWITZERLAND, Kingdom of BAHRAIN,
Mumbai INDIA, Johannesburg SOUTH
AFRICA, and Chonburi THAILAND
Included accessories shown above: Mains cable, ground cable, (2) ground
braid sets, (2) earth/ground braid leads (insulated), (2) C-clamps, generator
cable, measure cable, field test box, nylon accessory pouch, (2) earth/
ground braids with clamp, and canvas carrying bag for test leads
Item (Qty)
Cat. No.
FRAX Measure Cable, 1xBNC, 9 m (30 ft)
GC-30050
for use with AC-39092 only
FRAX Generator Cable, 2xBNC, 18 m (60 ft)
GC-30042
for use with AC-39090 only
FRAX Measure Cable, 1xBNC, 18 m (60 ft)
GC-30052
for use with AC-39090 only
Field Test Box, FTB-101
AC-90060
2 x 305 mm (1 ft) Earth/Ground Braid with Clamp GC-30035
Nylon Accessory Bag
GD-31040
User’s Manual
AVTMFRAX150
Optional Accessories
Calibration Set
AC-90020
FRAX Demo Box FDB 101
AC-90050
Item (Qty)
Cat. No.
FRAX 150 with 18 m (60 ft) Leads
AC-39090
FRAX 150 with 9 m (30 ft) Leads
AC-39092
Included Accessories
AC Power Cord (IEC60320-C13 to US standard)
17032
AC Power Cord (IEC60320-C13 to Schuko CEE 7/7) 17032-13
Canvas Carrying Bag (for leadset)
30915-211
Ground Cable 5 m (16 ft)
1001-428
FRAX software for PC
1001-427
2 x 3 m (9 ft) Earth/Ground Braid Lead
GC-30033
2 x 3 m (9 ft) Earth/Ground Braid Lead (insulated) GC-30036
2 x C-clamp (Bushing Clamps)
GC-80010
2 x G-clamp (Ground Braid Clamps)
GC-80020
FRAX Generator Cable, 2xBNC, 9 m (30 ft)
GC-30040
for use with AC-39092 only
ORDERING INFORMATION
Built-in mouse with
Left and Right click
buttons (sealed to
protect from dust and
other contaminants)
Test button
Navigation arrows

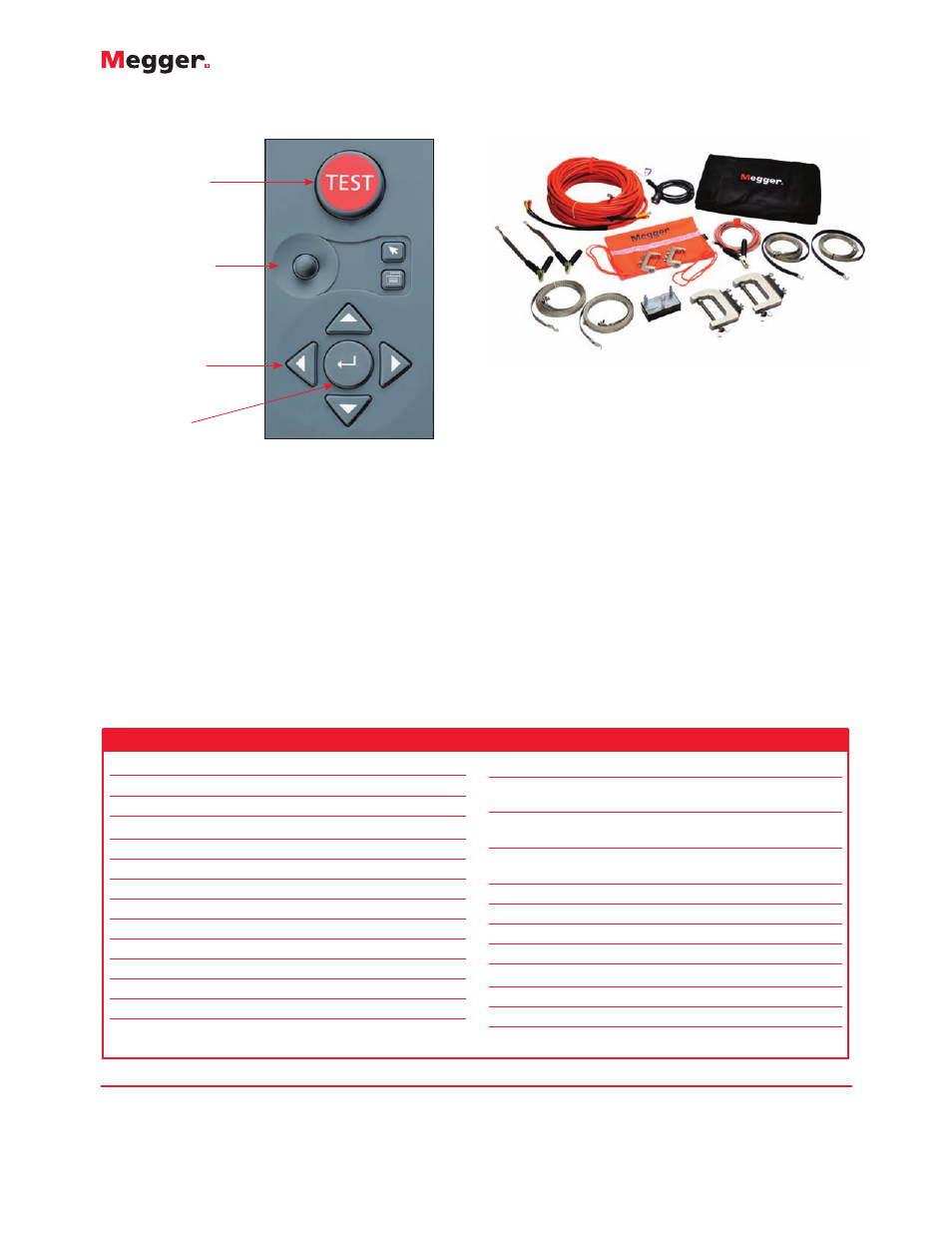

CLOSE-UP OF FRAX 150 CONTROL PANEL
Enter key
INCLUDED ACCESSORIES
