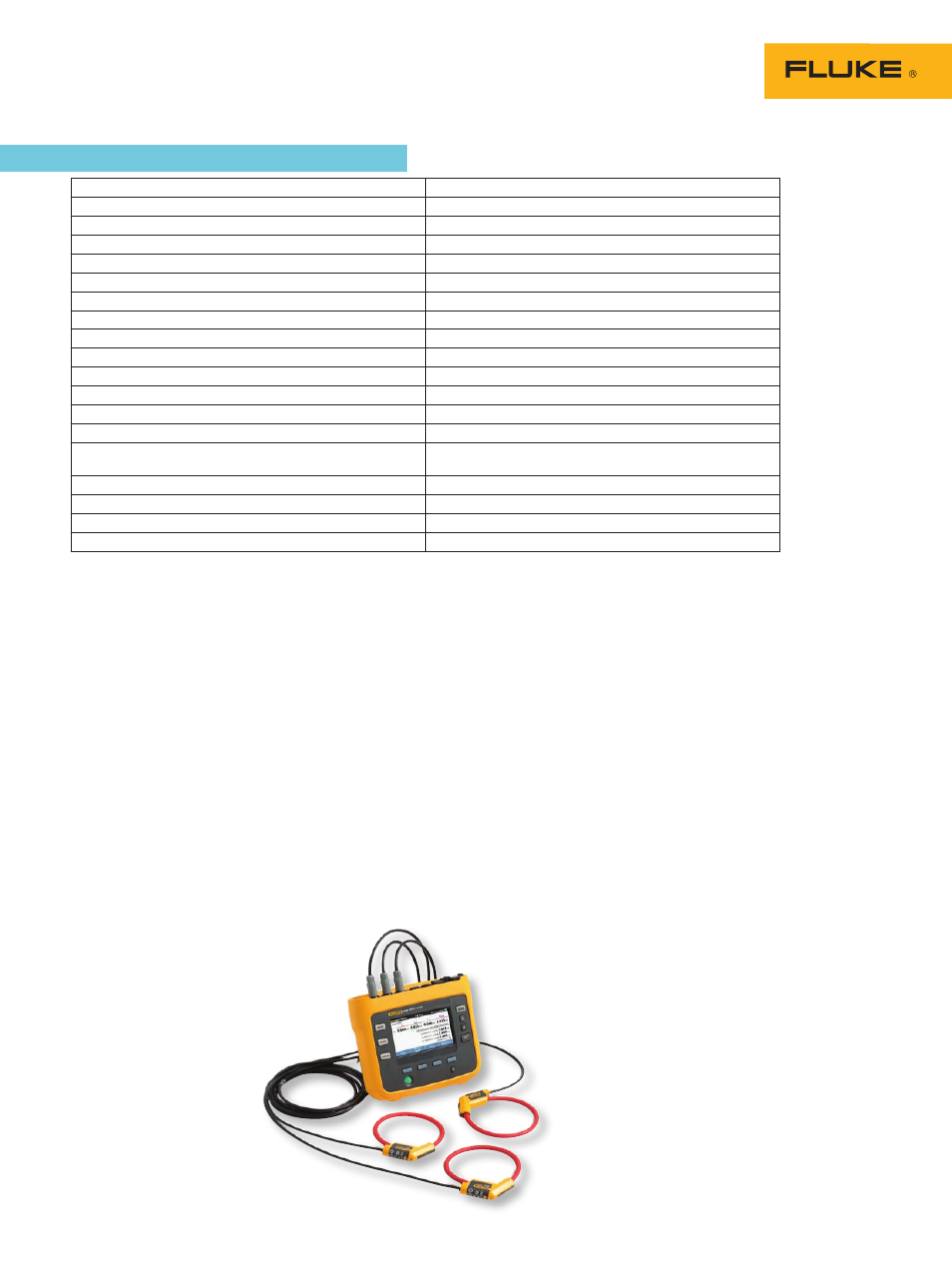

6 Fluke Corporation Fluke 1730 Three-Phase Electrical Energy Logger
Fluke Corporation
PO Box 9090, Everett, WA 98206 U.S.A.
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. (800) 443-5853 or
Fax (425) 446-5116
In Europe/M-East/Africa +31 (0) 40 2675 200 or
Fax +31 (0) 40 2675 222
In Canada (800)-36-FLUKE or
Fax (905) 890-6866
From other countries +1 (425) 446-5500 or
Fax +1 (425) 446-5116
Web access: http://www.fluke.com
©2013 Fluke Corporation.
Specifications subject to change without notice.
Printed in U.S.A. 8/2013 4314073B_EN
Pub ID: 12028-eng Rev. 01
Modification of this document is not permitted
without written permission from Fluke Corporation.
Fluke. The Most Trusted Tools
in the World.
Ordering information
1730/BASIC Three-Phase Electrical Energy logger (excludes current probes).
1730/US Portable Energy Logger US version
1730/EU Portable Energy Logger EU version
1730/INTL Portable Energy Logger INTL version
Accessories
i1730-flex1500 iFlex flexible current probe 1500A 12 inch
i1730-flex3000 iFlex flexible current probe 3000A 24 inch
i1730-flex6000 iFlex flexible current probe 6000A 36 inch
i40s-EL i40s-EL Clamp-on Current Transformer
i1730-flex1500/3pk iFlex flexible current probe 1500A 12 inch, 3 pack
i1730-flex3000/3pk iFlex flexible current probe 3000A 24 inch, 3 pack
i1730-flex6000/3pk iFlex flexible current probe 6000A 36 inch, 3 pack
i40s-EL/3pk i40s-EL Clamp-on Current Transformer, 3 pack
1730-TL0.1M Test Lead Set; 1000 V CAT III, straight plug; 0.1 m; silicone; red/black
1730-TL2M Test Lead Set, 1000 V CAT III; straight plug; 2 m; PVC red/black
3PHVL-1730 Cable Assembly, Voltage Test Lead 3-Phase+N
C1730 1730 Soft Case
WC100 Color Localization Set
1730-Hanger Hanging strap
1730-Cable AUX input cable
1500-12 iFlex Flexible Current Probe specifications
Measuring range 1 to 150 A ac / 10 to 1500 A ac
Nondestructive current 100 kA (50/60 Hz)
Intrinsic error at reference condition* ± 0.7 % of reading
Accuracy 1730 + iFlex ± (1 % of reading + 0.02 % of range)
Temperature coefficient over operating temperature range 0.05 % of reading/°C 0.09 % of reading/°F
Working voltage 1000 V CAT III, 600 V CAT IV
Probe cable length 305 mm (12 in)
Probe cable diameter 7.5 mm (0.3 in)
Minimum bending radius 38 mm (1.5 in)
Output cable length 2 m (6.6 ft)
Weight 115 g
Transducer cable material TPR
Coupling material POM + ABS/PC
Output cable TPR/PVC
Operating temperature -20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor
under test shall not exceed 80 °C (176°F)
Temperature, non-operating -40 °C to +80 °C (-40 °F to 176 °F)
Relative humidity, operating 15 % to 85 % non-condensing
IP rating IEC 60529:IP50
Warranty One-year
*Reference condition:
• Environmental: 23 °C ± 5 °C, no external electrical/magnetic field, RH 65 %
• Primary conductor in center position
