PEAK
KILOVOLTS
0
60
CABLE CAPACITANCE
MICROFARADS
0
60
0 6.0
OUTPUT PEAK MILLIAMPERES
SCOPE
POS
NEG
START
TIMER
60
30
10
METER
μF
mA
CAPACITANCE
SCALE X10
PUSH TO READ
X1
CAP
ZERO
3
!"11?LC?M Cable Fault Locators / Thumpers - Surge Generators
Input: CDS-2010U: 120 V, 60 Hz, 25 A
CDS-2010UF: 230 V, 50/60 Hz, 15 A
Hipot Output: 0 – 5/10/20 kVdc
Hipot Burn Current: 400/200/100 mAdc
Discharge Output: 1000 Joules at each output voltage
Discharge Rate: 6 – 10 seconds
TDR Interface: Arc Reflection & Current Impulse
Size: 27”w x 27”d x 48”h
686 mm w x 686 mm d x 1219 mm h
Weight: 260 lbs/118 kgs
Cable Outputs: 50’ HV, return, & ground
Other Features: Rugged, transit protected meters
External Interlock
Emergency OFF mushroom switch
Internal heater to limit condensation
With its 20kV ouput, the CDS-2010U is good for fault locating cables rated
up to 35kv, having a line to ground voltage of 20kV. The high burn current of
400mA can be used to condition a fault to reduce its arc over voltage to permit
thumping at a lower and less damaging voltage level, yet still at full energy. The
CDS-2010U can thump a cable at just 5kV yet deliver 1000 joules. Find your
fault without making more.
There is no better thumper. The CDS-2010U offers the complete package:
three full joule output voltages, three variable hipot outputs, the highest burn
current, rapid discharge rate, tdr/radar ready, and its rugged design holds up
to years of use. Another plus: all HVI Thumpers use EPR high voltage output
cable rather than XLPE. EPR stays flexible in cold weather. HVI thought of
everything.

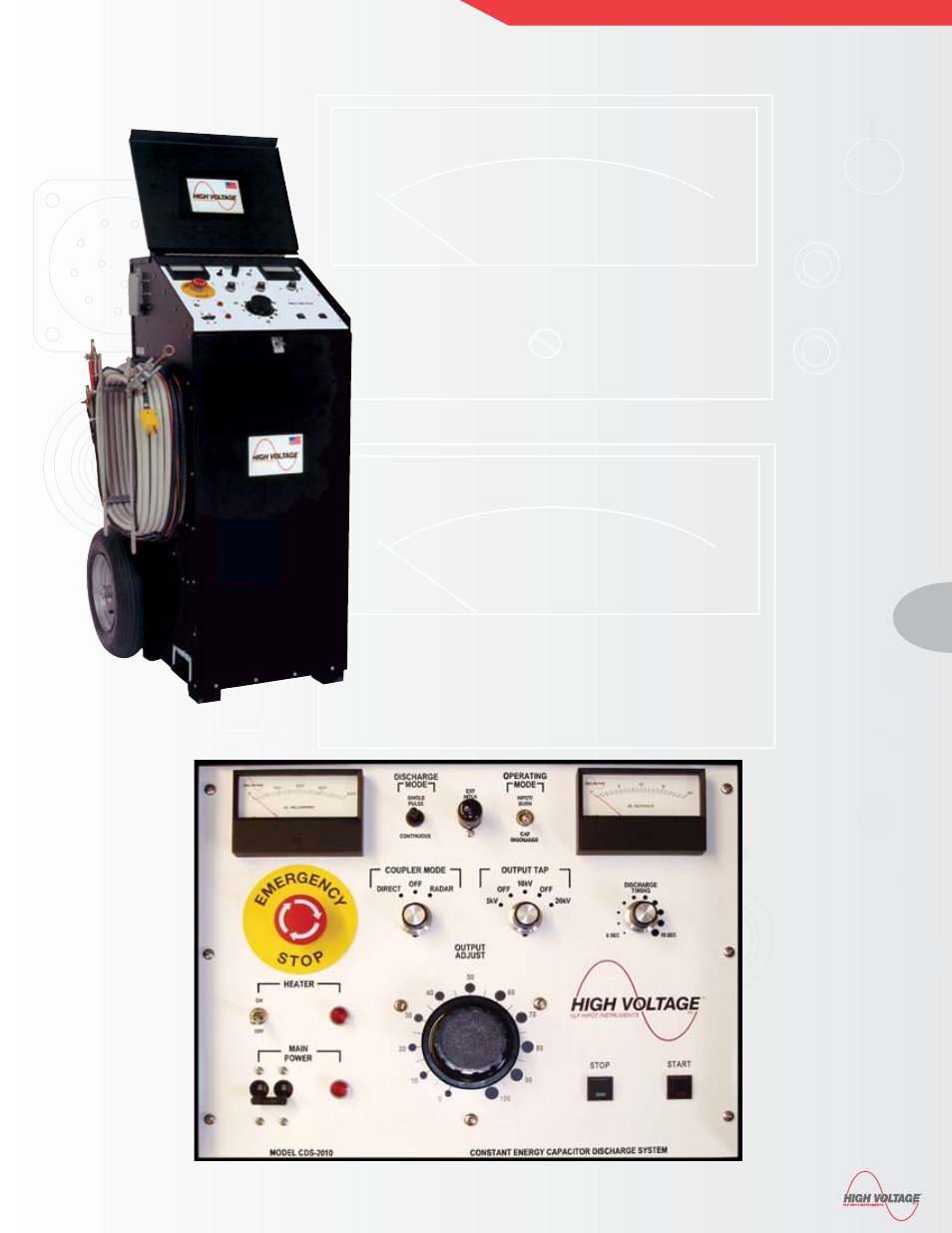

Model CDS-2010U & CDS-2010UF
Ideal for Coops, Small Municipals, IOU URD and Industrials
