Coupling capacitors 1
VEHZ4116 MCC 205, 50 kV, 1.0 nF (on mobile base) 2
VEHZ4117 MCC 210, 100 kV, 1.0 nF (on mobile base) 2
High frequency current transformer
VEHZ4120 MCT 100 high frequency current transformer
Bushing adapters 1 (incl. transport case)
VEHZ4121 Basic adapter: G3/4" inside to 5/8"
VEHZ4122 F&G/HSP adapter: M24 to G3/4"
VEHZ4123 HSP adapter: M30x1.5 to G3/4"
Measuring impedances
VEHZ4100 CPL 542, 0.5 A type
VEHZ4101 CPL 542, 2 A type
VEHZ4103 CPL 543, 5 A type
Li-poly battery
VEHZ4105 MPP 600 Power Pack Set (consisting of battery,
fastener, and charger with power cord)
VEHZ4106 MPP 600 battery
1 Customized articles available on request
2 Including CPL measuring impedance
3 No calibrator included

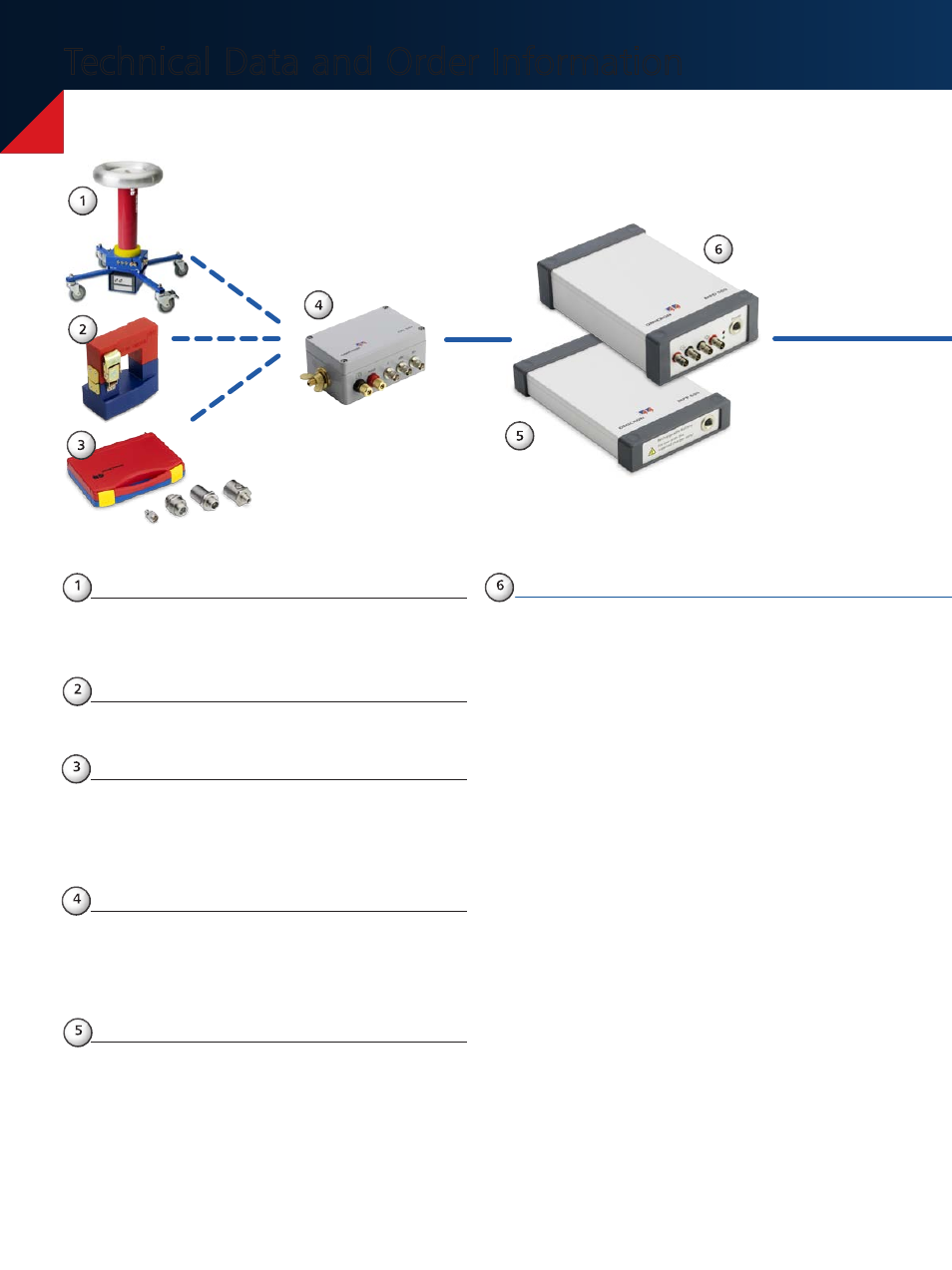

Technical Data and Order Information
MPD 500 – Technical data
Center frequency range 0 Hz to 2.5 MHz
Input freq. bandwidth 100 kHz, 300 kHz, 1 MHz
Input frequency range V input: 0 Hz to 2.1 kHz
PD input: 0 Hz to 2,5 MHz
Input impedance V input: 1 MW, in parallel 1 µF
PD input: 50 W
Input voltage (max) V input: 60 V rms, PD input: 10 V rms
Dynamic range V input: 102 dB, PD input: 132 dB (overall)
PC requirements
Hardware
(minimum) Pentium ® 4 or later, Athlon ® 64 or later /
1 GB RAM / USB 2.0
PC operating system Windows 2000 Pro™ to Windows 7™
Accuracy
PD event time resolution < 2 ns
Input channels PD level: ± 1 % of calibrated PD value
Voltage: ± 0.05 % of calibrated voltage
Frequency: ± 1 ppm
Environmental conditions / mechanical data / supply voltage
Humidity / temperature 5 % to 100 % non-condensing
0 °C to 55 °C (operating)
-10 °C to 70 °C (storage)
Dimension (W x D x H) 110 x 190 x 44 mm / 4.3 x 7.5 x 1.7 in
Weight 600 g / 1.3 lbs
Power supply 8 to 12 V DC via ext. power supply or
MPP 600 Li-Poly battery
