Partial Discharge Measurement
Results at one glance
Advantages of the intuitive MPD 500 software:
> Concise visualization of single as well as multi-channel
measurements
> User-friendly pass / fail functionality
> Detailed diagrams for in-depth analysis
For factory routine testing the conclusive pass / fail function is
ideal for fast decisions. Adjusting the thresholds is most easy, as
are the inception and extinction voltage.
Using the MPD's multi-channel ability allows to display multiple
actual PD measurement values simultaneously on one screen,
contrasting old-fashioned multiplexer solutions. This makes
the MPD 500 ideal for PD measurements in high-throughput
environments.
For advanced analysis classic ellipse and state-of-the-art
PRPD (ϕ-Q-n) visualizations show partial discharge activities in
real time at 25 frames per second.
Automate your reports
The optional comprehensive electronic reporting function
automatically provides a concise test protocol within seconds.
These reports contain information about the tested object, the
measurement, and all data in definable intervals, as well as
diagrams showing Q(t), U(t), and Q(U).
Individual screenshots can be inserted during measurement at
any time by simply hitting a hotkey.

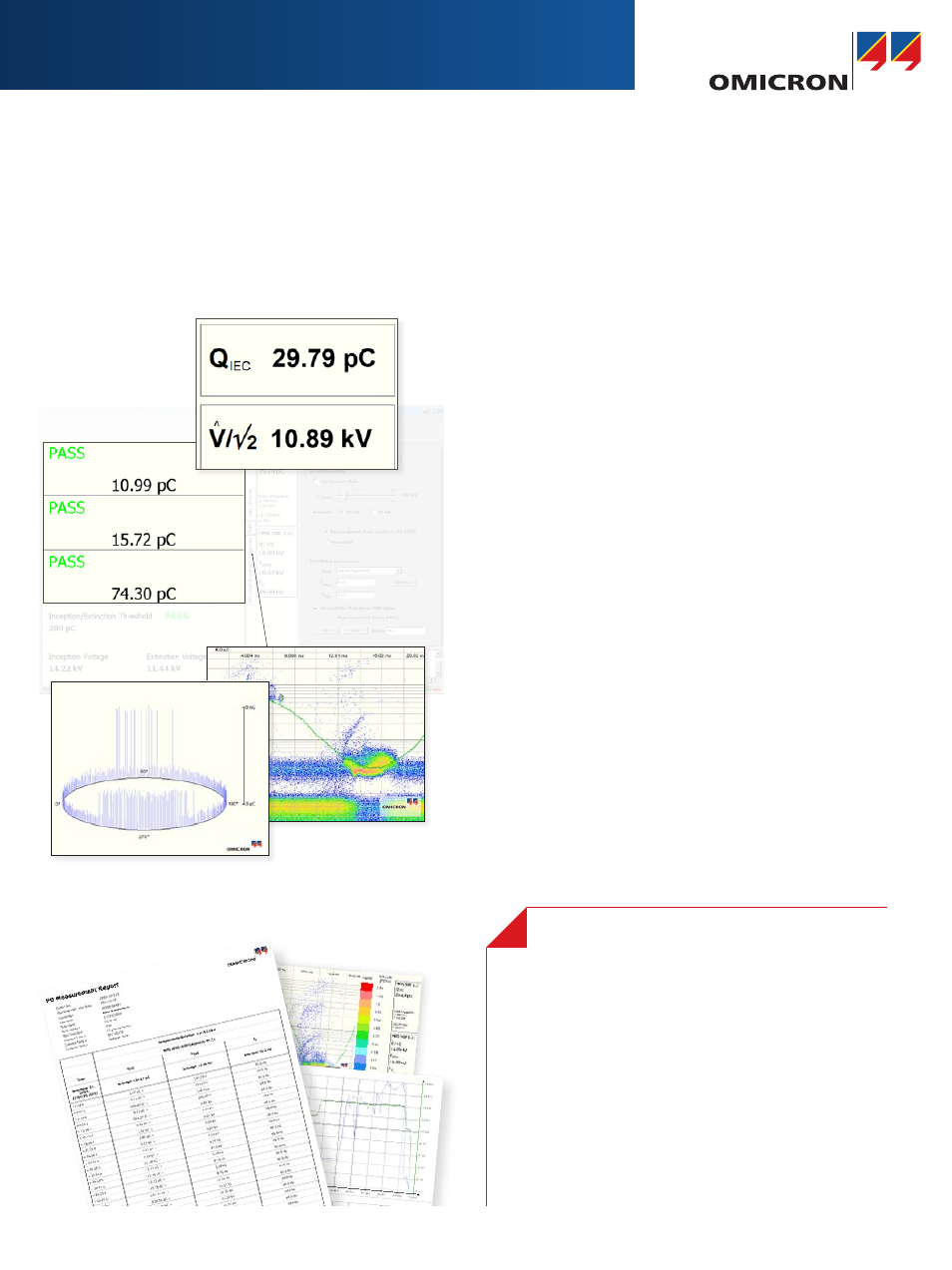

Single and
multi-channel view
Ellipse and
PRPD (ϕ-Q-n) screens
Automated reports
Your benefits
> Economical – PD and RIV are combined within one
instrument
> Time effective, easy operation
> Decision support with clear pass / fail indication
> Efficient multi-channel testing with several results
displayed simultaneously
> Save time – Fast and easy automated reporting
