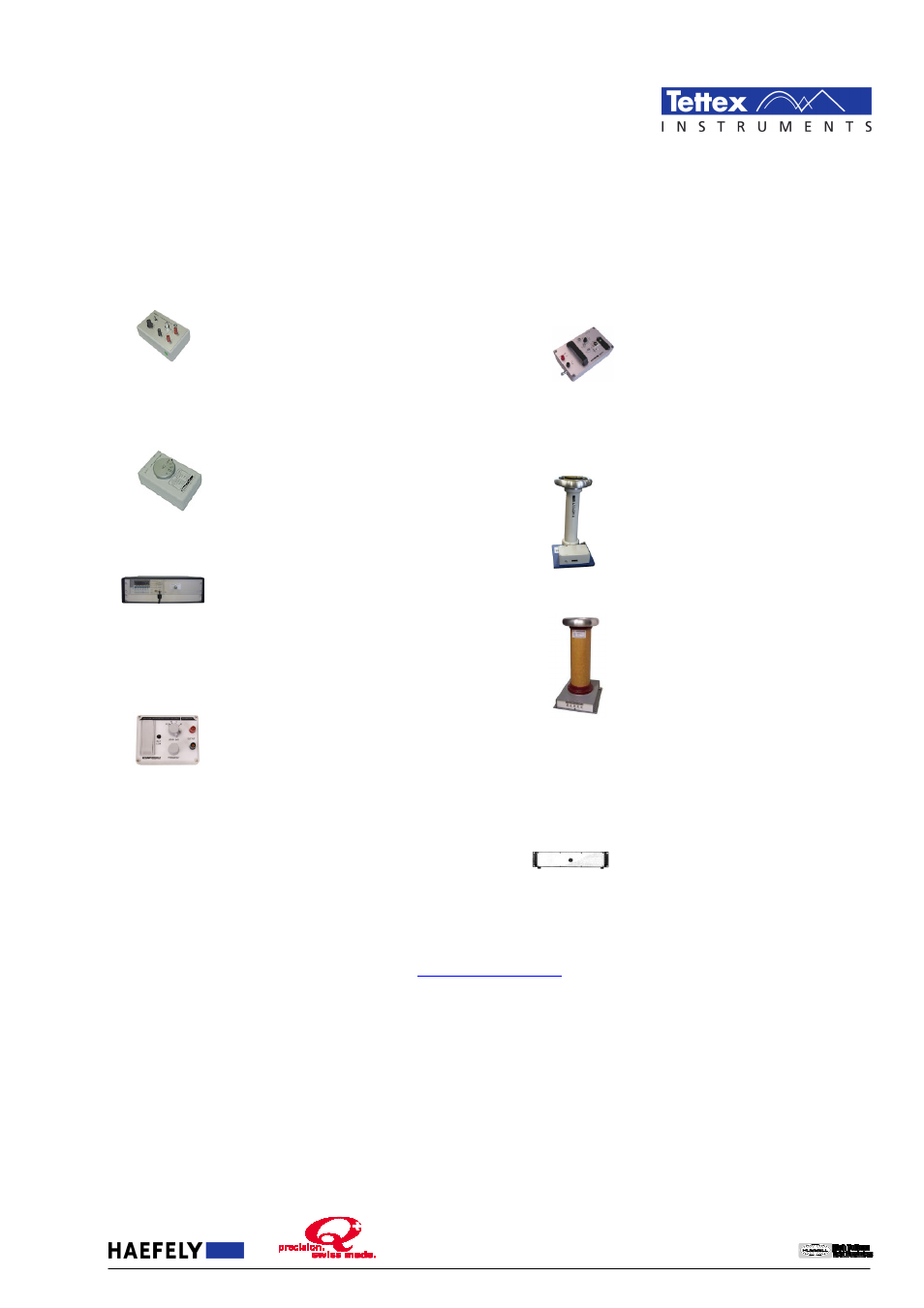

Accessories for PD testing
CALIBRATORS
KAL 451 KAL 451 KAL 451 KAL 451
The KAL 451 is a battery powered PD
calibrator for direct coupling of the
generated PD signal to the test object
according to the related standards IEC
60270 and IEEE 454. Pulse outputs
ranges are 2 – 200pC and 20 – 2000pC.
The pulse rise time is < 20ns.
9216 9216 9216 9216
The 9216 is a small battery powered PD
calibrator for direct coupling of the
generated PD signal to the test object
according to the related standards IEC
60270 and IEEE 454. Pulse outputs
ranges are 10, 100, 1’000, 10’000 pC.
KAL 9530 KAL 9530 KAL 9530 KAL 9530
The RIV calibrator (KAL 9530) includes
a signal generator, RIV calibration set,
clamp and a switching unit for
calibration as per ANSI and NEMA
standard.
PD SIMULATORS
753 753 753 753----US US US US
The Miniature Partial Discharge
Simulator is a compact, battery
operated discharge simulator. It injects
a known multiple pulse PD signal into a
PD test circuit to allow verification of
calibration. The unit also incorporates a
fine frequency control for synchronizing
to a multiple of the mains frequency.
MEASURING IMPEDANCES
AQS 9110 AQS 9110 AQS 9110 AQS 9110a a a a
The AQS 9110 Passive quadripole is a
fully configurable quadripole system
optimized
for PD and RIV
measurement. It has a voltage divider
low-arm fitted to it for voltage
measurement.
COUPLING CAPACITORS
TK series TK series TK series TK series
The coupling capacitor / HV AC divider
consists of 1 unit, built into a glass
fibre reinforced epoxy tube. The top
electrode allows partial discharge free.
For PD measurements an appropriate
coupling quadripole must be added.
PSF PSF PSF PSF
PSF (Power Separation Filter) have high
self resonant frequencies, high stability
and low partial discharge levels. They
are mounted on a base with a suitable
top electrode and a low voltage arm.
Outputs are provided for PD detector
input, overload sensing circuit, pulse
mark (indicates zeros in AC wave shape)
and kilovoltmeter input. Not suitable for
RIV measurements.
MULTIPLEXER
DDX91 DDX91 DDX91 DDX9106a 06a 06a 06a
3 to 1 manual multiplexer in a separate
housing stackable with DDX 9121a. This
includes the piloting software with full
functional feature set, including 3D
displays, analysis and reporting tools.
