Standard Package
SPECIFICATION
Description FSM-100M FSM-100P
Applicable
type of fibers
For
Telecommunication
SMF(ITU-T G652), NZDSF(ITU-T G655), MMF(ITU-T G651), EDF,
DCF and other specialty fibers.
Large Diameter
Fiber
Conventional sillica LDF
PM fiber PMF
Clad diameter φ 60 to 500 µm
Coating diameter φ 100 to 2000 µm
Fiber count Single
Cleave length
Glass clamp: 8 to 10 mm (standard 9 mm)
Coatimg clamp: 3 to 5 mm (standard 4 mm)
Typically
splice loss
SMF 0.03 dB
NZDSF/LDF 0.05 dB
MMF 0.02 dB
PMF 0.06 dB
Splice time
SMF/MMF 15 sec
NZDSF/LDF 25 sec
PMF （ PANDA ） 35 to 50 sec
PM AUTO 90 to 300 sec
Typically
Polarization
crosstalk
PMF （ PANDA ） -40 dB / 0.6 degree
PM AUTO -32 dB / 1.4 degree
Return loss >> 60 dB
Tube heat
time
FP-03 40 mm 30 sec
FP-03 60 mm 35 sec
FPS01 series
(micro sleeve)
55 sec
*Heat time change with depended on tyep of micro sleeve
Fiber clamp
It chages according to cladding diameter and coating diameter
automatically.
Sweep range ± 5 mm (the arc center is 0mm.)
Electrode life
2500 arc discharges.
(at the SMF (ITU-T G.652) splicing with 1mm electrode gap)
Electrode gap 1.0 to 3.0 mm (adjustable)
Electrode offset -0.3 to +0.1 mm (adjustable)

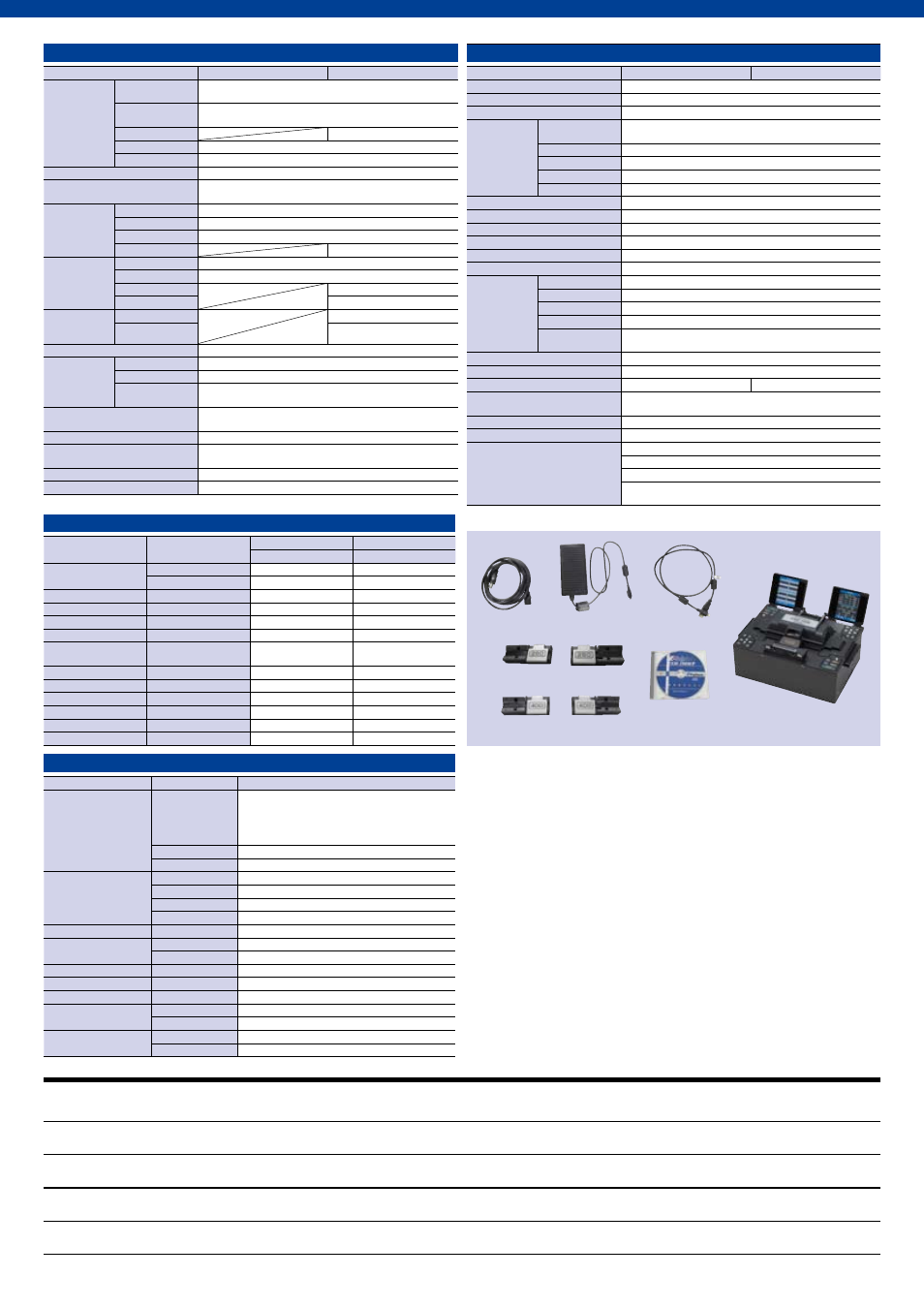

Standard Package
Name Model
FSM-100M FSM-100P
Qty. Qty.
Splicer Main Body
FSM-100M 1pc -
FSM-100P - 1pc
Carrying Case CC-27 1pc 1pc
Fiber Holder for 250um FH-100-250 1pair 1pair
Fiber Holder for 400um FH-100-400 - 1pair
AC Adapter ADC-15 1pc 1pc
AC Power Cord for AC
adapter
ACC-** 1pc 1pc
Spare Electrodes ELCT2-25 1pair 1pair
USB Cable USB-01 1pc 1pc
Dust Cleaning Stick DCS-01 1pc 1pc
Warnings and Cautions W-100MP-E 1pc 1pc
Splicing Report - 1pc 1pc
Instruction Manual M-100MP-E 1pc 1pc
OPTIONAL ITEMS
Item Description Note
Fiber Holder
FH-100-***
*** : Coating diameter
FH-100-060, FH-100-100, FH-100-125, FH-100-150,
FH-100-180,FH-100-210,FH-100-250, FH-100-300,
FH-100-350, FH-100-400, FH-100-500, FH-100-600,
FH-100-700, FH-100-800, FH-100-900
FH-100-**** Coating Dia. : 1000 to 2000 µm
FH-40-LT900 Coating Dia. : 900 µm for loose tube
Cleaver
CT-32 Cladding Dia. : 125 µm, Cleave length: 4 mm / 9 mm
CT-38 Cladding Dia. : 80 µm, Cleave length: 4 mm / 9 mm
CT-10 Cladding Dia. : 125 µm, Cleave length: 5 mm /10 mm
CT-30 Cladding Dia. : 125 µm, Cleave length: 5 mm /10 mm
Angle Cleaver CT-11 Cladding Dia. : 125 µm
Jacket Stripper
JS-02-900 Coating Dia. : 900 µm (applicable for fiber holder 900 µm)
JS-01 Coating Dia. : 900 µm
Hot Jacket Stripper HJS-02 Coating Dia. : 250 to 400 µm
Ultrasonic Cleaner USC-02 -
Recoter & Proof tester FSR-02 -
Sleeve
FP-03 60 mm
FP-04S 40 mm
Micro sleeve
FPS01-400-** 12,15,20,25,34,45 mm / coating dia. 400 µm
FPS01-900-** 15,20,25,34,45 mm / coating dia. 900 µm
Fujikura Ltd.
Specifications and descriptions are subject to change without prior notice.
1-5-1, Kiba, Koto-ku, Tokyo 135-8512, Japan
Phone : +81-3-5606-1164 Fax : +81-3-5606-1534
http://www.fujikura.co.jp
460, Alexandra Road, #22-02 PSA Bldg., Singapore 119963
Phone : +65-6-271-1312 Fax : +65-6-278-0965
http://www.fujikura.co.sg
C51 Barwell Buisiness Park, Leatherhead Road, Chessington, Surrey KT9 2NY, UK
Phone : +44-20+8240-2000 Fax : +44-20-8240-2010
http://www.fujikura.co.uk
260, Parkway East, Duncan, SC29334, USA
Phone : +1-800-235-3423 Fax : +1-800-926-0007
http://www.afltele.com
16th Floor, HSBC Tower,1000 Lujiazui Ring Road, Pudong, Shanghai 200120, China.
Phone : +86-21-6841-3636 Fax : +86-21-6841-2070 http://www.fujikura.com.cn
Fujikura Asia Ltd.
Fujikura Europe Ltd.
AFL Telecommunications
Fujikura (Shanghai) Trading Co., Ltd.
913-10-0690-139・95-00 Printed in Japan 1008-1008-2000-DNP
SPECIFICATION
Description FSM-100M FSM-100P
Proof test 1.96 to 2.45 N
Magnification 58 to 300 (changeable)
Auto start function Available
Spliceing
mode
Number of splice
mode
Total 300 modes
Standard Mode Available
Manual mode Available
Power meter mode Available
Attenuation mode Available
Number of tube heating mode 100 heating mode installed
Strage of splicing result The last 2000 results to be stored in the internal memory.
Lahguage English / Japanese / Chinese
Arc power calibration 3 methods installed
Arc positon calibration 2 methods installed
Fiber learning function Available
PC
communication
Software upgrade Capable via internet.
Display image data Capable
Splice conditions Capable
Splice results Capable
PC control
Capable
Sample software and command list is available.
Display Dual 4.1" inches color LCD monitor.
Dimensions 311 （ W ）× 232 （ D ）× 160 （ H ） mm excluding rubber foot
Weight 7.5 kg 7.9 kg
Power supply
external AC adapter: ADC-15
Input : AC100 to 240 V （ 50 to 60Hz ） (max.100 W AC)
Operating condition 0 to 95%RH and 0 to 40 degC respecitively
Storage condition 0 to 95%RH and -40 to 80 degC respectively
Terminals
Power supply: DC19 V 4.5 A
USB2.0 （ Mini-B type ） for PC communication
IEEE-488 24 pin for power monitor feedback alignment
Two 6-pin Mini-DIN connector for external equipment
( HJS-02)
ACC-** ADC-15
FH-100-250
FH-100-400 (FSM-100P only)
M-100MP-E
USB-01
FSM-100M/P
