Modular Laser

Diode Controller

LDC

3900

Modular Laser

Diode Controller

LDC

3900

Wide Range of Modules

Five current source modules and fi ve combi-

nation modules along with two TE controller only
modules make the LDC-3900 confi gurable for many
laser diode testing and control
applications. Each module is
electrically fl oating or fully iso-
lated from all other modules.
This allows you to confi gure your
laser diode test system without
the worry of potential laser diode
damaging ground loops.

Current Source

Modules

The LDC-3900 current source

design offers superior laser
protection and low noise, high
stability performance. These
modules also feature a photo-
diode measurement circuit for
devices with backfacet monitor
photodiode and analog modulation up to 500kHz
for dithering the laser current for wavelength tuning.
Five different current source modules up to 8A can
be driven in any one of the following modes:

1) Constant current, low bandwidth

2) Constant current, high bandwidth

3) Constant optical power

Highly Stable Temperature Control

The LDC-3900 TEC modules control tempera-

ture of your devices with 32W of power. These TEC
modules offer maximum fl exibility with a choice
of operating modes and temperature sensors
covering thermistors, IC, and RTDs. A low noise,
biopolar output with TE voltage measurement and
an ultra-stable topology achieves stabilities better
than 0.005°C. A smart integrator control loop, pro-
grammable from the front panel or through GPIB,
delivers fast settling times.

Controller Modules

Controller modules combine a current source

with a temperature controller in one module. Laser
current from 200mA to 2A is available with an
integrated 12W temperature controller for current

and temperature control of laser diodes. All of the
features found in the current only and temperature
control modules are incorporated into these fl exible
modules and include multiple modes of operation,

external modulation, a choice
of temperature sensors, and all
protection features.

Intuitive Front Panel

Divided into two sections, TEC

and LASER, the front panel offers
quick, easy operation and infor-
mation display without confusing
multi-layer menus. Each channel is
directly addressable from the front
panel “adjust” section and indi-
cated through discrete LEDs next
to the respective display. Laser
and TEC parameters and modes
are easily selected or adjusted
through discrete pushbuttons.

Powerful GPIB Interface

For automated control, the

IEEE/GPIB interface allows programming and
readout from most computers. All instrument
and module functions are accessible through the
interface allowing you to simultaneously control
multiple laser diodes from the same address.
For virtual instrument programming, LabVIEW

drivers are available upon request or through the
ILX website.

* Semiconductor lasers are sensitive devices. Always
take appropriate antistatic precautions and use extreme
care when handling laser diodes. For more information,
request ILX Application Note #3, “Protecting Your Laser
Diode.”

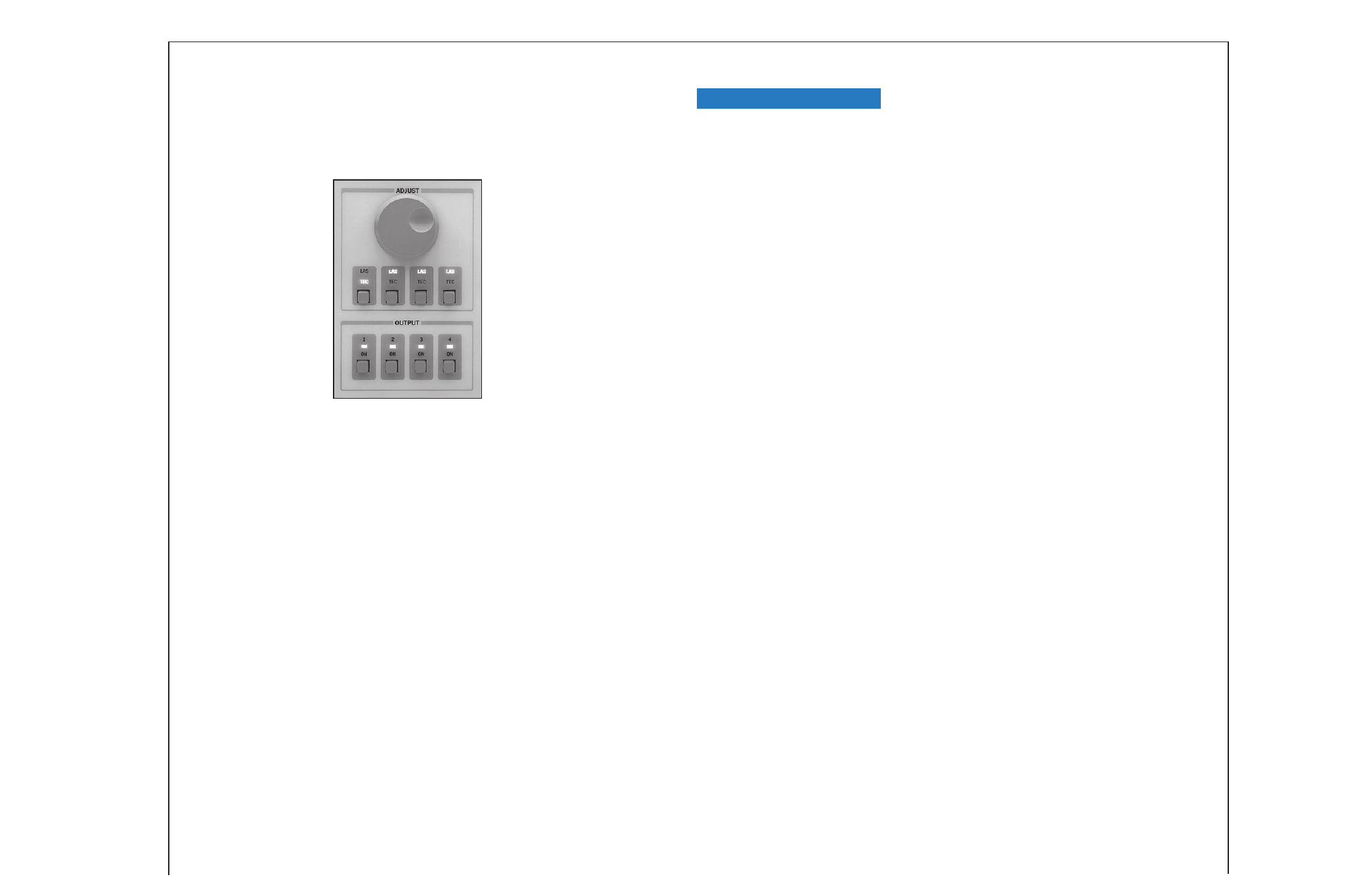

Up to four modules can be easily
adjusted and controlled from the
LDC-3900 front panel.

Current Source Modules

Current Source

39020 39050 39100 39400

39800

DRIVE CURRENT OUTPUT

Output Current Range:

0–200mA

0–500mA

0–1000mA

0–4000mA

0–8000mA

Setpoint
Resolution:

10µA

100µA

125µA

Accuracy:

±0.1% of FS

±0.1 % of FS

Compliance Voltage:

6.5V

5V at connector

(4.5V end of cable)

Temperature Coeffi cient:

<60ppm/°C

<100ppm/°C

Short-Term Stability (one-hour):

<20ppm

Long-Term Stability (24 hours):

<50ppm

<40ppm

Noise and Ripple (µA rms)

High Bandwidth Mode:

<3µA

<5µA

<10µA

<15µA

<120µA

Low Bandwidth Mode:

<2.5µA

<3µA

<5µA

<110µA

With LNF-320:

<1µA

<1.5µA

<2.5µA

<3µA

N/A

Transients:
Operational:

<1mA

<2mA

<5mA

<8mA

Power-line spike induced:

<5mA/<8mA

<10mA/<20mA

<20mA/<40mA

Isolation:

All modules isolated from other modules and earth ground

DRIVE CURRENT LIMIT SETTINGS

Range:

0–200mA

0–500mA

0–1000 mA

0–4000mA

0–8000mA

Resolution:

0.5mA

2mA

4mA

16mA

40mA

Accuracy:

±2mA

±5mA

±10mA

±40mA

±80mA

PHOTODIODE FEEDBACK

Type:

Transimpedance

Transimpedance Transimpedance

Transimpedance

Reverse Bias:

0–5V, adjustable

Photodiode Current Range:

0–5mA

0–10mA

0–20mA

Output Stability:

0.02%

Setpoint Accuracy:

±0.05% of FS

±0.1% of FS

EXTERNAL ANALOG MODULATION

Input: 0–10V,

10k

Ω

0–10V, 10k

Ω

0–10V, 10k

Ω

0–10V, 10k

Ω

0–10V, 10k

Ω

Transfer Function:

20mA/V

50mA/V

100mA/V

400 mA/V

800mA/V

Bandwidth (3dB)
High

Bandwidth:

DC to 500kHz

DC to 200kHz

DC to 50kHz

Low Bandwidth:

DC to 5kHz

DC to 2kHz

Low Bandwidth CW:

DC to 30Hz

OUTPUT CONNECTORS

Current Source Output:

9-pin, D-sub

16-pin,

Bulkhead

Photodiode Input:

Coax BNC

Analog Modulation Input:

Coax BNC

inst. amp. input

MEASUREMENT (DISPLAY)

Output Current
Range:

0–200.00mA

0–500.00mA

0–1000.0mA

0–4000.0mA

0–8000.0mA

Resolution:

0.01mA

0.1mA

Accuracy:

±0.05% of FS

±0.1% of FS

±0.1% FS

Photodiode Current
Range:

0–5000µA

0–10,000µA

0–20,000µA

Resolution:

1µA

Accuracy:

±2µA

±4µA

Photodiode Responsivity
Range:

0.00–600.00µA/mW 0.00–600.00µA/mW 0.00–600.00µA/mW 0.00–600.00µA/mW

0.00–1000.00µA/mW

Resolution:

0.01µA/mW

Optical Power
Range:

0.00–200.00mW

0.00–500.00mW

0.00–1000.0mW

0.00–5000.0mW

0.00–8000.0mW

Resolution:

0.01mW

0.1mW

Forward Voltage
Range:

0.000–7.000V

0.000– 7.000V

0.000–5.000V

Resolution:

1mV

1 mV

1mV

Accuracy:

±3mV

±5mV

CURRENT SOURCES NOTES

1 All values relate to a one-hour warm-up period.
2 Over any one-hour period, half-scale output at 25°C ambient.
3 Over any 24-hour period, half-scale output at 25°C ambient.
4 Measured optically from resulting intensity fl uctuations of a laser diode with a

150kHz bandwidth photodetector. Measurements made with 1MHz detector are

typically 10% higher.

5 With model LNF-320 low noise CW fi lter enabled.
6 Maximum output current transient resulting from normal operational situations

(i.e., power on-off, current on-off), as well as accidental situations

(i.e., power line plug removal). For more information, request ILX "Transient Test

Standards”

#LDC-00196.

7 Maximum output current transient resulting from a 1000V power line transient spike.

Tested to ILX Lightwave Technical Standard #LDC-00196.

8 Maximum monitor photodiode current drift over any 30 minute period. Assumes

zero drift in responsivity of photodiode.

9 50% modulation at mid-scale output.
10 Displayed on LDC-3900 mainframe front panel “LASER” section.
11 Measured at 25°C.
12 Responsivity value is user-defi ned and is used to calculate the optical power.
13 Voltage measurement accuracy while driving calibration load. Connected at the
rear panel connector. Accuracy may vary depending on load and cable length used.
14 Model 39800 8A module uses two rear-panel module bays.

Specifi cations
