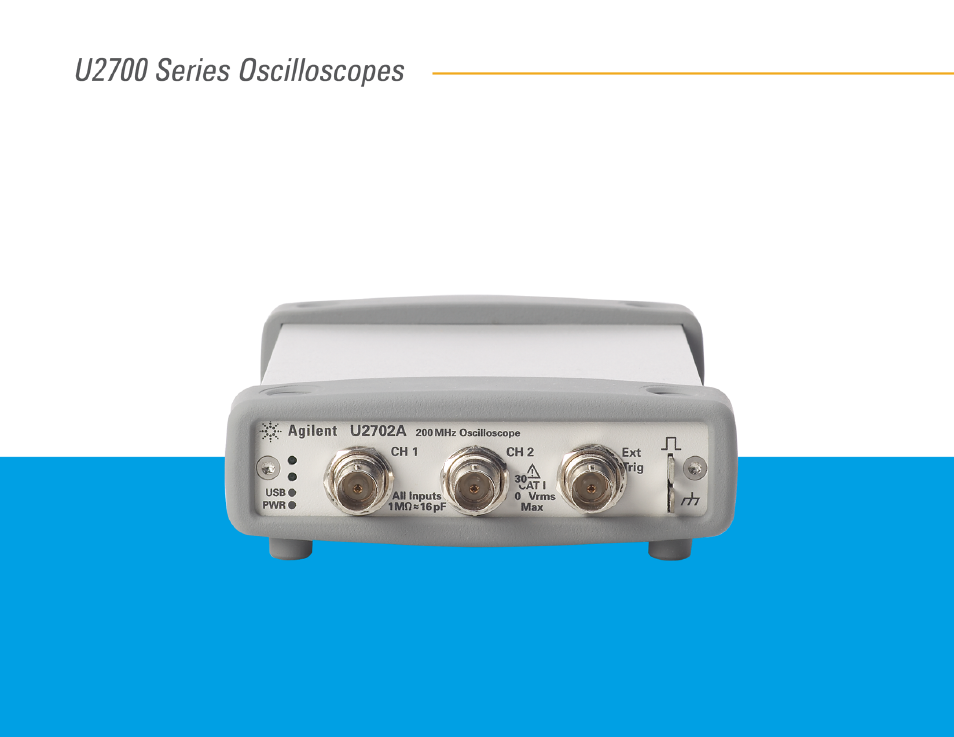

100 MHz and 200 MHz USB modular scopes
Engineered for versatility and portability without compromising performance
• Manual, auto and tracking cursors with T, V and frequency measurements
• Over 25 measurement and math functions
• 1,250-point FFT, Hamming, Blackman-Harris and rectangular windowing
• Dual-screen display with FFT function and keyboard shortcut keys (with AMM software)
• Provides fl exibility of standalone or chassis-based operation for dual-play capability
• Provides up to 1 GSa/s (interleaved) sampling and 32 Mpts of memory to
help
you gain better insight into signal details
• Advanced analysis capabilities built into the bundled AMM (Agilent
Measurement Manager) scope software include waveform math and FFT
with windowing
• Normal, averaging and peak-detect acquisition modes
• Advanced triggering including edge, pulse width and line-selectable video
6 | www.agilent.com/fi nd/2700family
