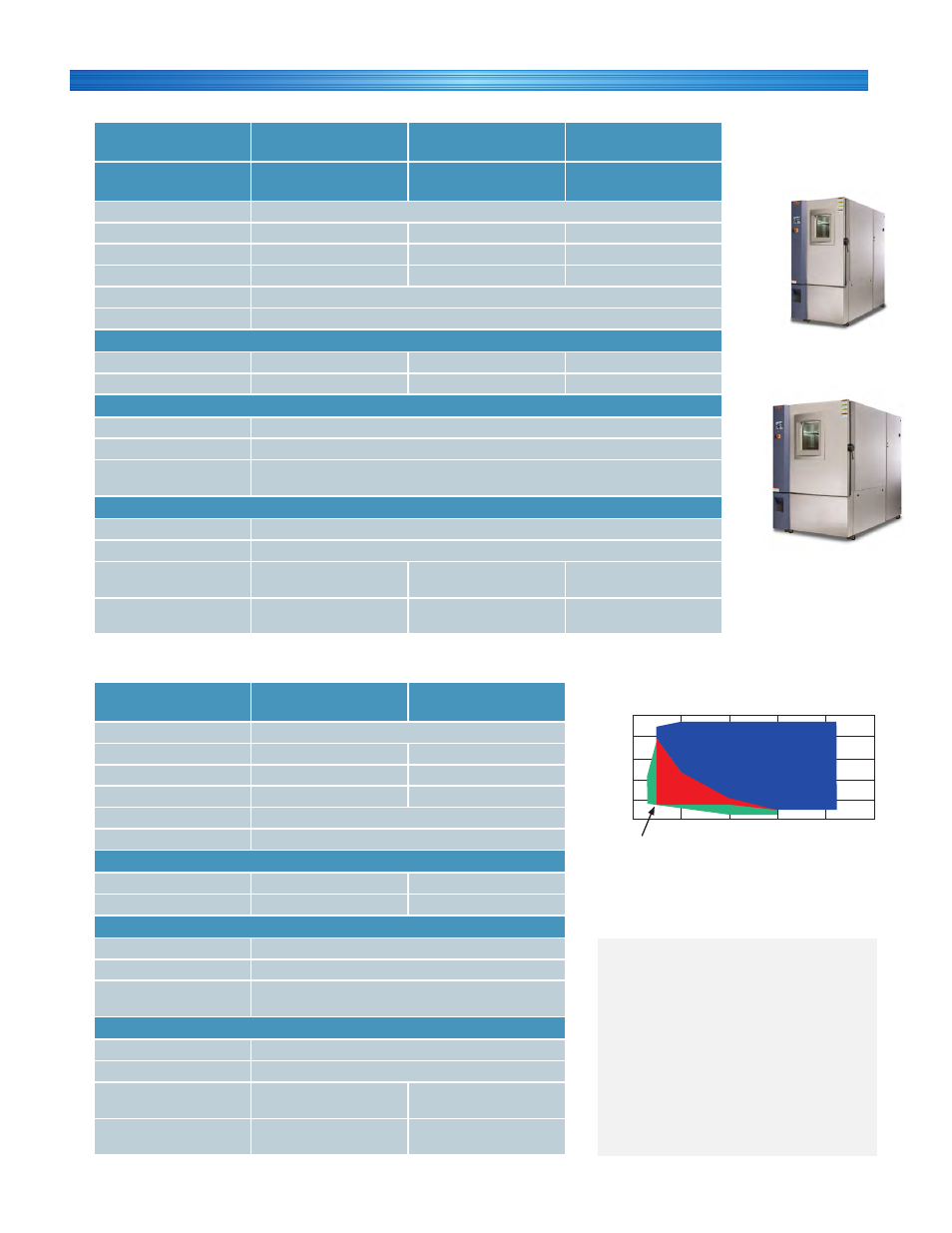

SPECIFICATION - 380 L / 12

Cu

.

FT

. MODELS (460V)

6

RANGE -70 TO 180°C

RANGE -40 TO 180°C

20

40

60

80

100

100

80
60
40
20

0

Temp in °C

%

R

H

10°/15%

Humidity Range (EGNX, EGNL)

Blue = standard humidity range
Red = optional low-humidity range
Green = optional ultra-low humidity range

NOTE:

Please submit a performance evaluation request
(see page 4) to ensure selection of the correct
model for your test requirement.

Site requirements also include a drain for
condensate water from the chamber, and ample
spacing for service and proper air cooling.

These specifications are for reference only.
Detailed and current specifications can be
obtained from your sales representative or at
espec.com.

Temp/Humidity

EGNX12-4CWL

EGNX12-4CAL

EGNX12-6CWL

EGNX12-6CAL

EGNX12-7.5CWL

Temp Only

EGNZ12-4CWL

EGNZ12-4CAL

EGNZ12-6CWL

EGNZ12-6CAL

EGNZ12-7.5CWL

Temperature Range

-70 to 180°C (-94 to 354°F)

Cooling Capacity

2.5 kW at -50°C

3.6 kW at -50°C

4 kW at -50°C

Refrigeration System

Cascade 4 hp Scroll

Cascade 6 hp Scroll

Cascade 7.5 hp Scroll

Heating System

5 kW

8 kW

8 kW

Humidity Range

10 to 95% RH per chart (EGNX models only)

Measured Airflow

850 cubic meters per hour (500 CFM)

Performance Example (-40°C to 85°C with 50 lbs. Aluminum)

Heating Rate

7°C/m average

15.5°C/m average

15.5°C/m average

Cooling Rate

5.5°C/m average

11°C/m average

15.5°C/m average

Dimensions

Workspace Volume

380 L (12 cu. ft.)

Workspace (WxDxH)

600 x 743 x 850 mm (23.6" x 29.25" x 33.5")

Exterior (WxDxH)

889 x 2103 x 1768 mm (35" x 83" x 70")

(‘CAL’ suffix models are 36 cm (14") taller)

Site Requirements

Power Supply

460V 3Ø 60Hz (380-415V 3Ø 50Hz also available)

Humidity Water

De-ionized water, 0.2 to 10 µS/cm resistivity (EGNX models only)

Cooling Water Maximum

with 30°C Inlet

34 LPM (9 GPM)

(CWL suffix models)

53 LPM (14 GPM)

(CWL suffix models)

72 LPM (19 GPM)

Heat to Room

40,000 BTU/hr

(CAL suffix models)

60,000 BTU/hr

(CAL suffix models)

Temp/Humidity

EGNL12-4CWL

EGNL12-4CAL

EGNL12-6CWL

EGNL12-6CAL

Temperature Range

-40 to 180°C (-40 to 354°F)

Cooling Capacity

3.3 kW at -20°C

4.3 kW at -20°C

Refrigeration System

Single-stage 4 hp Scroll

Single-stage 6 hp Scroll

Heating System

8 kW

8 kW

Humidity Range

10 to 95% RH per chart

Measured Airflow

850 cubic meters per hour (500 CFM)

Performance Example (0°C to 80°C with 50 lbs. Aluminum)

Heating Rate

10°C/m average

15°C/m average

Cooling Rate

10°C/m average

15°C/m average

Dimensions

Workspace Volume

380 L (12 cu. ft.)

Workspace (WxDxH)

600 x 743 x 850 mm (23.6" x 29.25" x 33.4")

Exterior (WxDxH)

889 x 2103 x 1768 mm (35" x 83" x 70")

(‘CAL’ suffix models are 36 cm (14") taller)

Site Requirements

Power Supply

460V 3Ø 60Hz (380-415V 3Ø 50Hz also available)

Humidity Water

De-ionized water, 0.2 to 10 µS/cm resistivity

Cooling Water Maximum

with 30°C Inlet

35 LPM (9 GPM)

(CWL suffix models)

55 LPM (14 GPM)

(CWL suffix models)

Heat to Room

52,000 BTU/hr

(CAL suffix models)

75,000 BTU/hr

(CAL suffix models)

EGNX12-4CWL (this page)

EGNX28-6CWL (next page)
