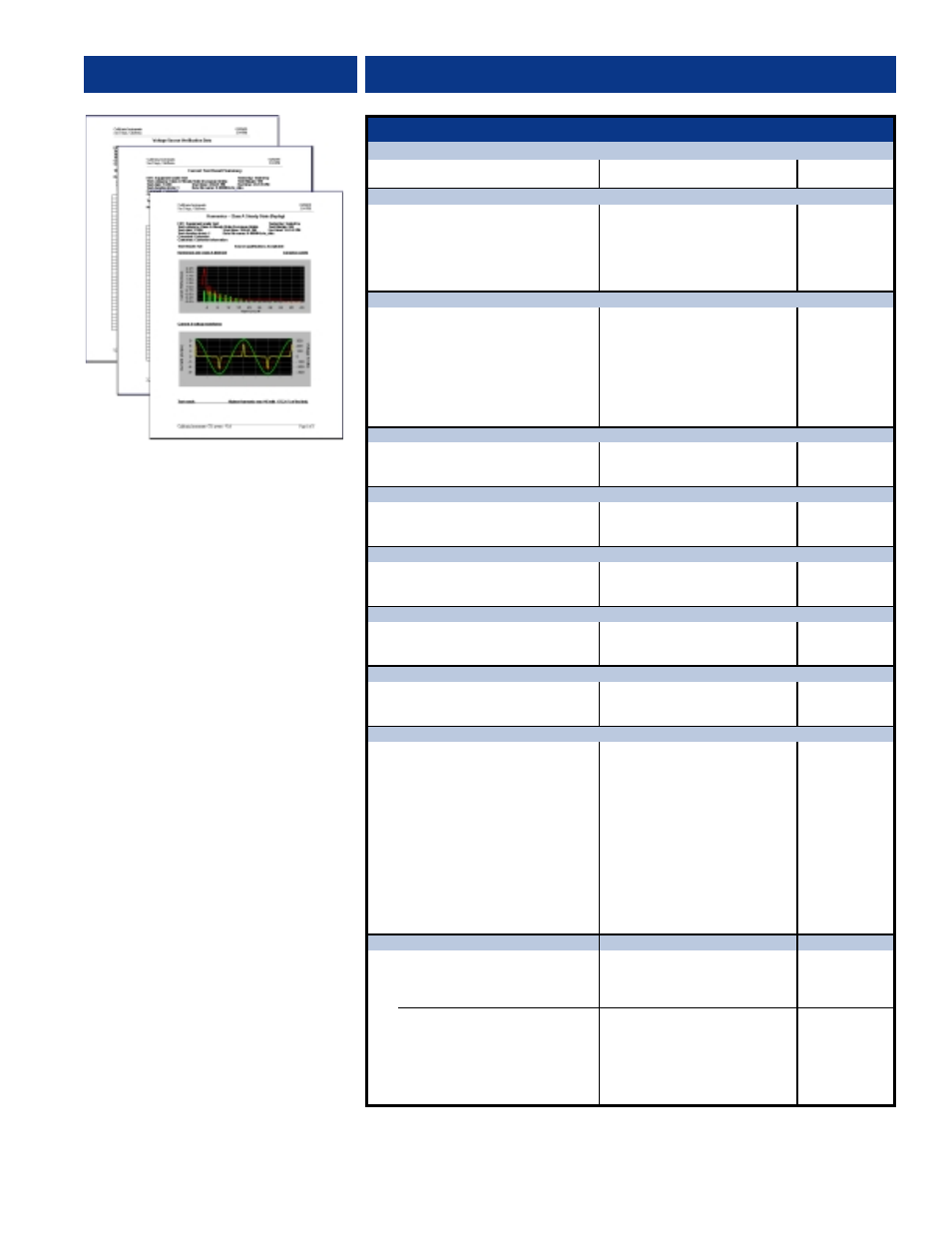

MS Word Test Reports
Test reports for harmonics, flicker and
immunity tests are generated using MS
Word format. This widely used format
report can be integrated into more
elaborate reports covering all aspects
of compliance testing if needed.
Test reports contain data on the EUT,
the test lab and operator, all measure-
ment results and a clear pass or fail
indication. Harmonics test reports in-
clude current harmonics and voltage
harmonics data in both bar charts and
tabular formats.
Note: A copy of MS Word must be in-
stalled on the PC to generate test re-
ports.
Measurement Specification Unit
Bandwidth
Anti Aliasing > 60 dB at 5 kHz
Bandpass ripple < 2 % up to 2.5 kHz %
Volts
Range 0.001 - 312.00 V
rms
Max. input 1000 V
peak
Max. crest factor 5:1
Accuracy ±0.1 % ± 0.05 % FS ± 3 mV
Resolution 10 mV
Voltage CMRR 80 dB
RMS Current
Current ranges (Auto ranging) 4, 16, 40 A
rms
Highest range 40.00 A
rms
Max. input [permanent,
no damage if < 200 A
peak
] 40.00 A
rms
Max. Crest Factor [High Range] 5:1
Max. Crest Factor [Low Range] 20:1
Accuracy ±0.1 % ± 0.05 % FS ± 3 mA mA
Resolution 1 mA
Power
Range 0.1 - 12,500 W
Accuracy ±0.25 % ± 0.25 % FS ± 20 mW mW
Resolution 0.1 W
Apparent Power
Range 0.1 12,500 VA
Accuracy ±0.15% ± 0.15% FS±20mVA mVA
Resolution 0.1 VA
Power Factor
Range 0.000 - ± 1.000
Accuracy ± 0.005
Resolution 0.001
Crest Factor
Range 20:1
Accuracy ± 0.005
Resolution 0.001
Frequency
Range 50.0 ± 0.5 Hz
Accuracy 0.01 % of reading Hz
Resolution 0.1 Hz
Harmonic Analysis
Range Fundamental to 40 th
Accuracy Fundamental ±0.05% FS±0.05%/kHz
Accuracy Harmonics ±0.1 %±0.1%/kHz
Measurement window 16 periods
Smoothing filter 1.5 sec
Errors due to Line voltage For 230 V, 50 Hz line voltage
distortion distortion with individual voltage
harmonics < 3% for H2-H15
and < 2% for H16-H40, the
harmonic current analysis
results will be within ±2 %
of those obtained with a fully
compliant AC power source.
Flicker
Pst Range 0.1 - 10 Pst
Accuracy < 8 %
Resolution 0.01
Integration time 10 min
Plt Range 0.1 - 10
Integration time 120 min
dmax Range 0 - 100 %
dc Range 0.1 - 100 %
dt Range 0.1 - 100 %
dt over 3% (4%) Range 0 - 1000 ms
Report Generation Measurement Specifications
