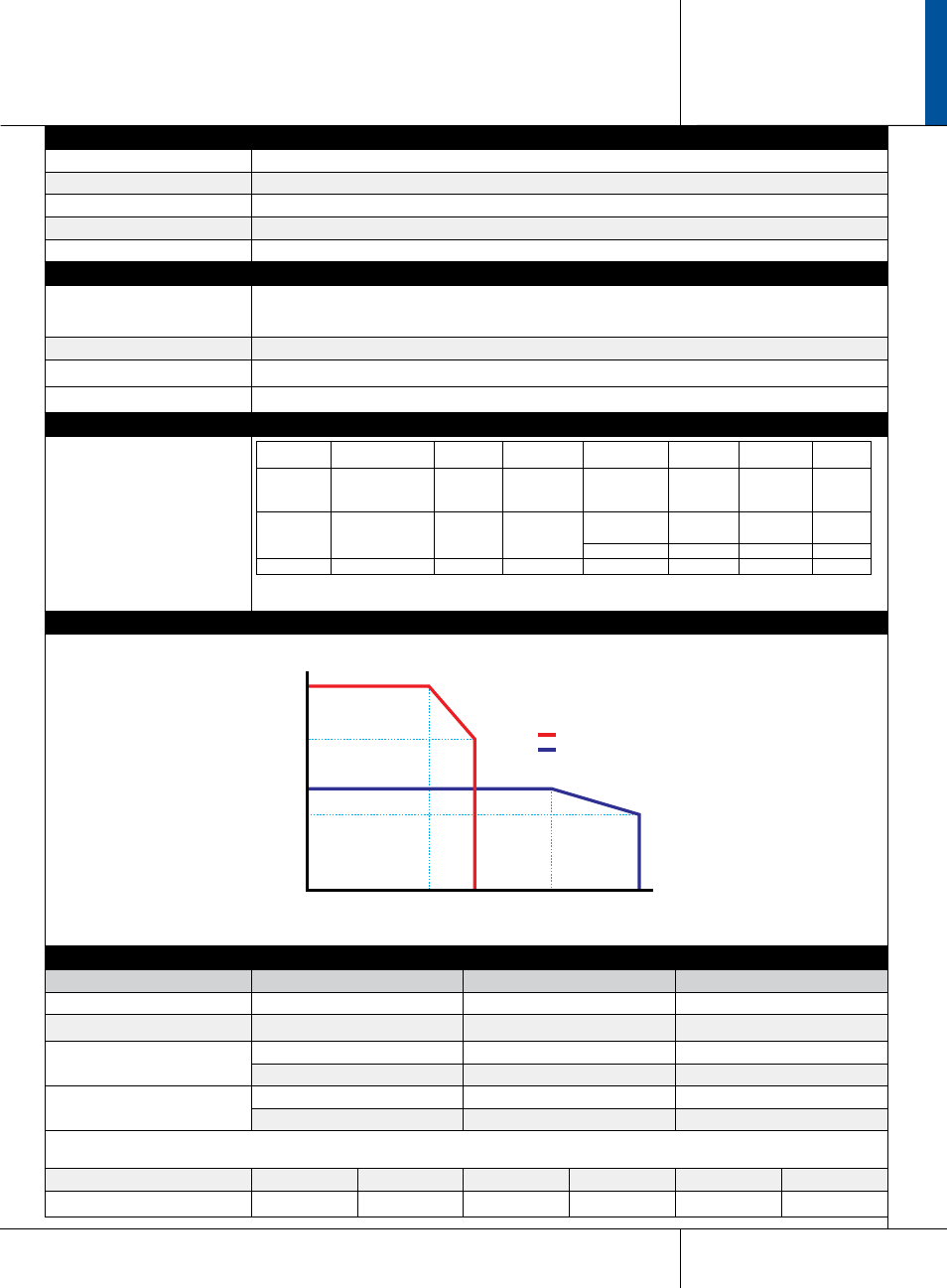

CSW Series : Product Specifications
Environmental
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Cooling Air is drawn in from the top, bottom, and sides and exhausted through the rear
Humidity (Non-condensing) 0 to 85% at 25°C (77°F); derate to 50% at 40°C (104°F)
Altitude Operating 10,000 ft, non operating 40,000 ft
Physical
Dimensions Width: 19” (483 mm)
Height: 8.75” (222 mm)
Depth: 23.5” (597 mm)
Weight CSW 5550 - 127 lbs (57.5 kg)
Shipping Weight - US CSW - 160 lbs (72 kg)
Note Multi Chassis systems, dimension and weight are approximately x2, x3, x4, x5 and x6 CSW Specifications
5550–33300 VA
Measurements
Measurements - Standard
(AC Measurements) Parameter Frequency Phase Voltage (AC) Current (AC rms) Real Power Apparent
Power
Power
Factor
Range 40-81.91 Hz
82.0-819.1 Hz
> 819 Hz 40-100 Hz
100-1000 Hz 0-300 V 0-50 A 0-6 kW 0-6 kVA 0.00-1.00
Accuracy* (±)
1 ø mode (-1) 0.1% + 1 digit
0.5° 0.5% + 250 mV 0.1% + 150 mA 0.15% + 9 W 0.15% + 9 VA 0.03
3 ø mode (-3) 2° 0.1% + 50 mA 0.15% + 3 W 0.15% + 3 VA 0.01
Resolution* .01 Hz / 0.1 Hz / 1 Hz 0.1° / 1° 10 mV 1 mA 1 W 1 VA 0.01
* Accuracy specifications are in % of reading and apply above 100 counts. For multi-chassis configurations, current, power range and accuracy specifications are
times three. Power factor accuracy applies for PF > 0.5 and VA > 50% of max. Frequency measurement specification valid for output > 30 Vrms.
Constant Power AC Mode
RMS Voltage
RMS Curr
ent
5550 CSW Operating Area
per Phase
Low Range
High Range
16.0A
11.8A
8.0A
5.9A
115V 156V 230V 312V
Harmonic Measurements
Parameter Range Accuracy ( ± ) Resolution
Frequency fundamental 16.00 - 1000 Hz 2 counts 0.01 Hz to 1 Hz
Frequency harmonics 32.00 Hz - 16 kHz 2º typ. 0.5º
Voltage Fundamental 0.25V 0.01V
Harmonic 2 - 50 0.25V + 0.1% + 0.1%/kHz 0.01V
Current Fundamental 0.05A 0.01A
Harmonic 2 - 50 0.05A + 0.1% + 0.1%/kHz 0.01A
Harmonics frequency range in three-phase mode is 32 Hz - 16 kHz. Accuracy specifications are multiplied by the number of power sources in multi-source systems with the
3-phase (3Ø) or the number of sources times 3 in the 1-phase (1Ø) mode . Measurement bandwidth is limited to 16 Khz.
Model CSW5550 CSW11100 CSW16650 CSW22200 CSW17750 CSW33300
Multiplier 3Ш/1 Ш 1/3 2/6 3/9 4/12 5/15 6/18
