current Sources

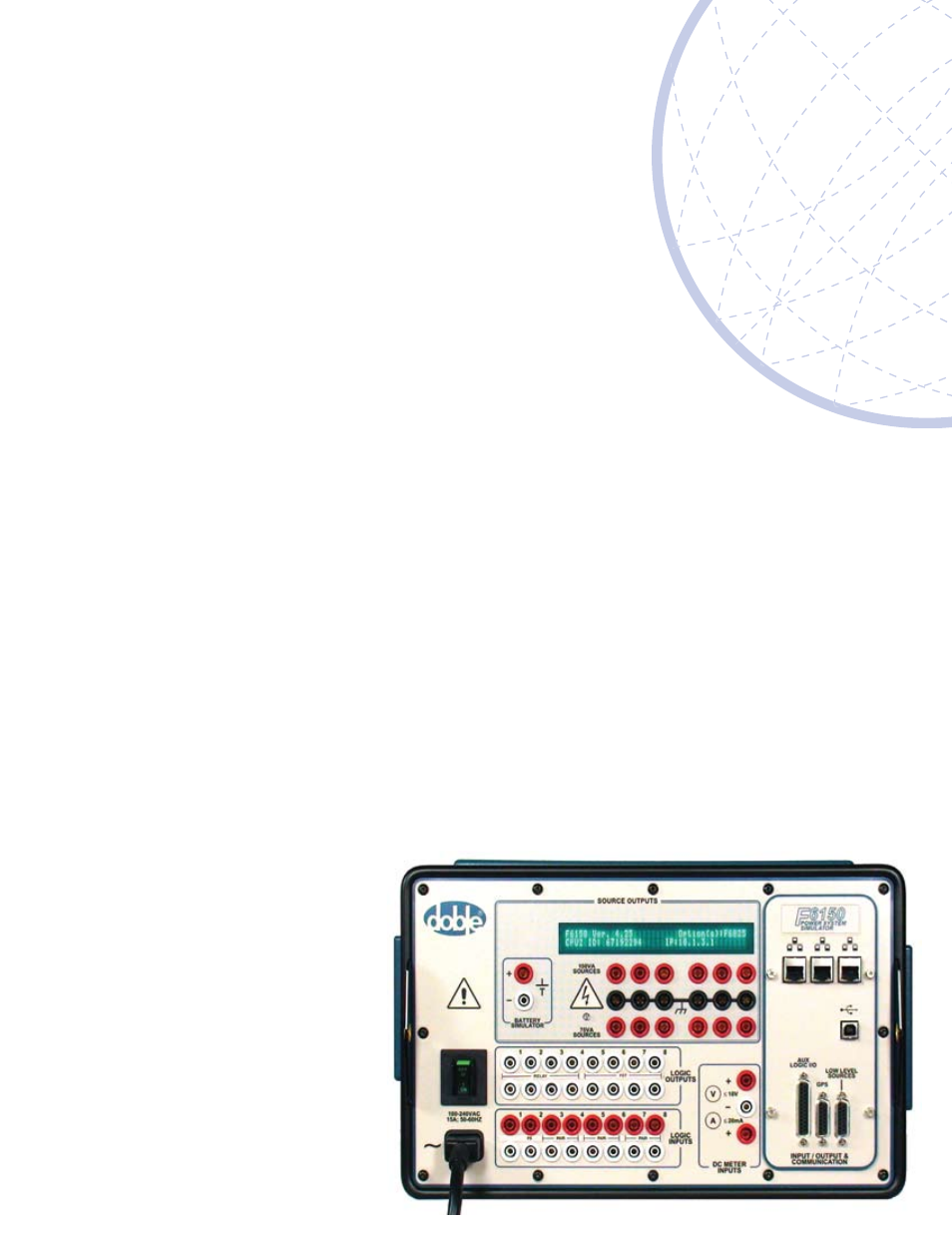

The F6150 has up to twelve current sources available including: six current sources and six high-
power, low-range convertible sources.
Source configurations
Output Power
Continuous Transient for 1.5 Seconds Number of Sources
75 VA 112.5 VA 6
150 VA 225 VA 3
300 VA 450 VA 2x150 VA or 1x150 VA+2x75 VA
450 VA 675 VA 1
Each 150 VA current source can be split into two 75 VA current sources.
Two 150 VA current sources can be combined in series or in parallel into one 300 VA current
source. Three 150 VA current sources can be combined in parallel into one 450 VA current
source.
Ranges and Resolution:
75 Va Source F6150 Ranges (Resolution)
AC Current
Transient
15, 30 A rms
(0.001 A)
Continuous 7.5, 15 A rms
(0.001 A)
DC Current
Transient
10, 20 A dc (0.01 A)
Continuous 5 A (0.001 A),
10 A dc (0.01 A)
150 Va Source F6150 Ranges (Resolution)
AC Current
Transient
15, 30 A (0.001 A),
60 A rms (0.01 A)
Continuous 7.5, 15 A (0.001 A), 30 A
rms (0.01 A)
DC Current
Transient
10, 20, 40 A dc
(0.01 A)
Continuous 5 A (0.001 A), 10,
20 A dc (0.01 A)
300 Va Source F6150 Ranges (Resolution)
AC Current
Transient
15, 30 A (0.001 A), 60,
120 A rms (0.01 A)
Continuous 7.5, 15 A (0.001 A), 30,
60 A rms (0.01 A)
DC Current
Transient
0 A (0.001 A), 20, 40, 80
A dc (0.01 A)
Continuous 5 A (0.001 A), 10, 20, 40
A dc (0.01 A)
450 Va Source: F6150 Ranges (Resolution)
AC Current
Transient
15, 30 A (0.001 A), 45,
90, 180 A rms (0.01 A)
Continuous 7.5, 15, 22.5 (0.001 A),
45 A, 90 A rms (0.01 A)
DC Current
Transient
10 A (0.001 A), 20, 30,
60, 120 A dc (0.01 A)
Continuous 5 A (0.001 A), 10, 15, 30,
60 A dc (0.01 A)
