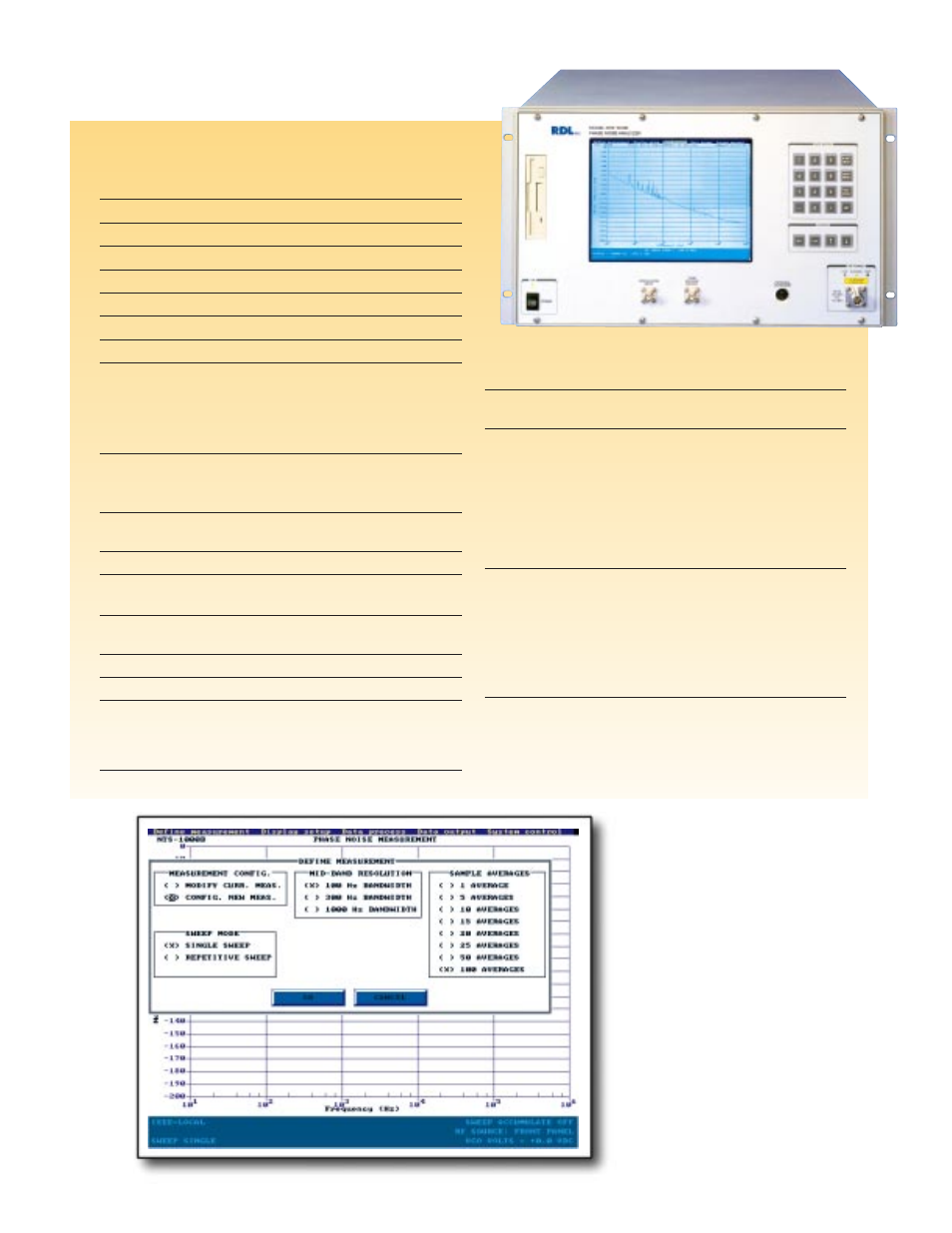

NTS -1000B S
PECIFICATIONS
Frequency Range: 50 to 1100 MHz
Frequency counter resolution: 100 kHz
RF Input Level: –20 to +10 dBm
Spectral Analysis: FFT; Hanning
Measurement Accuracy: ±2 dB
Calibration: Automatic, before every measurement.
Analysis Range: 10 Hz to 1 MHz in 3 bands
Measurement Speed, includes calibration:
10 Averages:
~10 sec. (full analysis range)
100 Averages:
~30 sec. (full analysis range)
Under remote control: <1.2 sec. (1 kHz to 100 kHz
analysis range)
Input Frequency Stability: ±20 kHz during measurement
(measurement time is a function of which analysis band(s) are selected
and number of FFT averages selected)
Averaging: Selectable 1, 5, 10, 15, 20,
25, 50, 100 averages
Pass/Fail Analysis: User defined limits for noise analysis.
Spurious Identification User defined limits and analysis criteria.
& Analysis:
Integrated Noise Analysis: Computes integrated noise (dBc SSB)
over user defined range(s).
Front & Rear Panel Input: Type N
Printer Port: Centronix parallel port (LPT1)
VCO Tune Voltage:
Range: ±30 Volts
Resolution: 0.1 Volt
Noise:
~13 nV/Ö Hz 5 kHz
Modulation Input: Used to apply modulation signal to
the VCO tune voltage.
Typical Noise Floor dBc/Hz SSB Input > +6 dBm
Offset 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz
Input Frequency
80 MHz
–49 –81 –107 –130 –151 –160
160 MHz –49 –81 –107 –130 –150 –159
320 MHz –48 –80 –107 –130 –150 –158
640 MHz –48 –80 –107 –130 –150 –158
960 MHz –45 –78 –104 –130 –150 –158
General Data:
Remote Control: IEEE-488.2
AC Power: 99-121 and 198-242 Volts, 47-63 Hz
EMC: Meets the requirements of CE
and FCC Part 15.
Size: 22 x 17.5 x 10.5 inch (D x W x H)
Weight: 85lbs. net, 120lbs. shipping
1503800-300
Specifications subject to change without notice.
Define Measurement
The user can set the “Number
of Averages” and “Mid-band
resolution” bandwidth to
optimize measurement time.
“Repetitive Mode” may be
selected to further speed the
measurement.
