a p . c o m

O p t i o n s

ATS2A

ATS-2 PC-Based Audio Test System with APIB or USB interface,

ATS software and manuals, and Getting Started Manual

ATS2G

ATS-2 PC-Based Audio Test System with GPIB Interface,

APIB Interface and Getting Started Manual (Software kit and

ATS2G-PROG are not included, but are recommended for GPIB

program development)

ATS2-PERF

Performance option for ATS-2

ATS2-EURZ

Changes generator output impedance selections to 40/200 Ω

(Not compatible with 600Z option)

ATS2-600Z

Changes generator output impedance selections to 40/600 Ω

and adds 600 Ω analyzer input termination selection

(Not compatible with EURZ option)

ATS2G-PROG

GPIB Programmers’ Reference Manual

(Includes CD with samples, manuals, and support software)

EWP2-ATS2

Two-year extended warranty for ATS-2

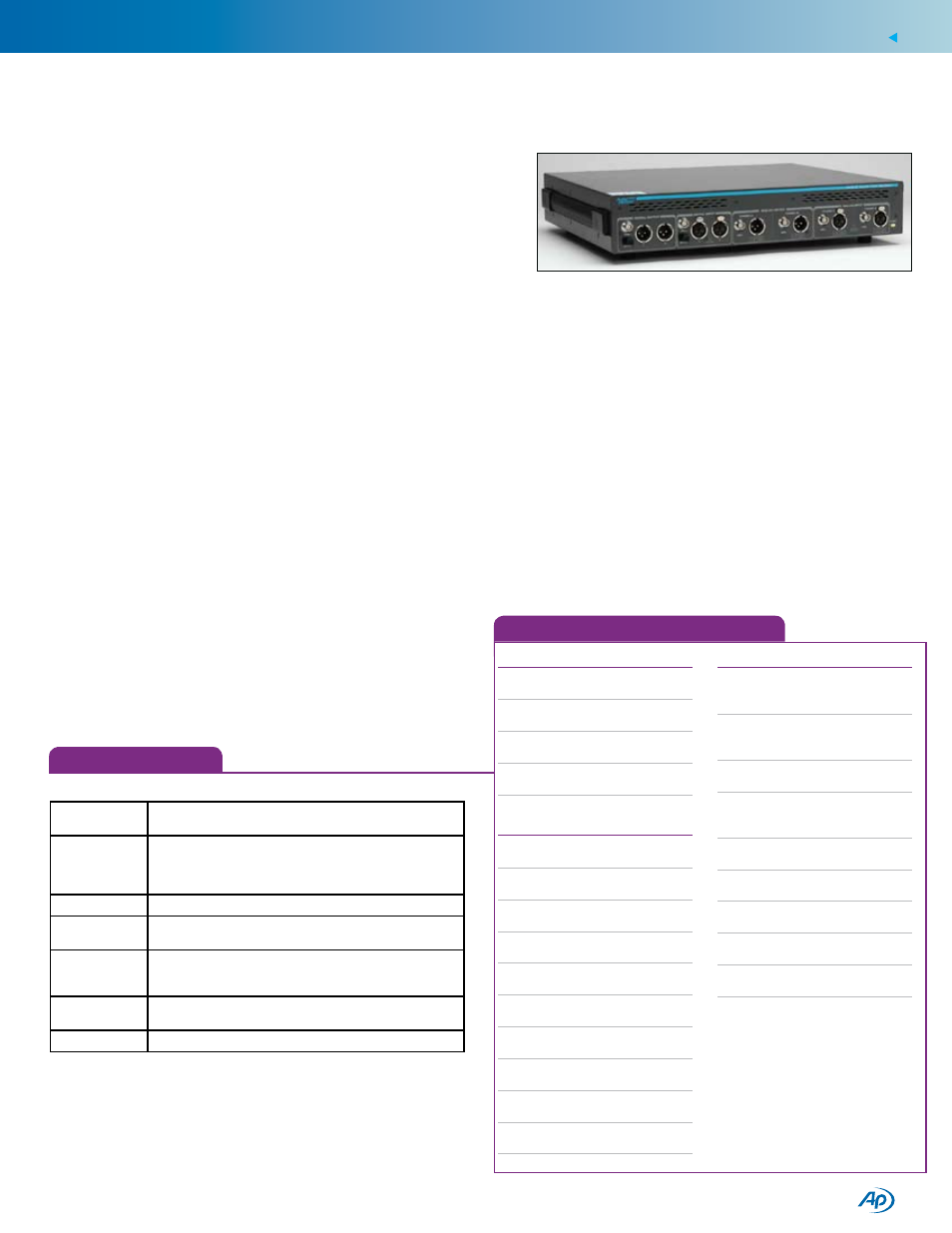

ATS-2 Audio Analyzer

The ATS-2 is a general-purpose audio analyzer well suited to the

design lab, broadcast facility or production line—anywhere you
need high-precision, feature-rich audio test and measurement.

The ATS-2 offers an excellent value in audio analyzers. Its

converter-based architecture keeps the cost down while offering a
wide range of features at high levels of performance. Converter-
based audio analyzers generate and analyze signals in the digital
domain and use analog-to-digital converters (ADCs) and digital-to-
analog converters (DACs) for analog input and output.

Independent analog and digital signal generators
Multitone analyzer with FFT for testing playback-only devices
Converter-based analyzer delivers high performance at a lower price
A wide range of analog and digital test signals
Programmatic control for high-speed automation
Optional digital interface testing capabilities
A full complement of graphing and reporting options
Auxiliary instruments are available for specialized testing
Connects to control PC via USB









AT S - 2 K e y S p e c i f i c a t i o n s

BASIC FORMAT

Channels

2

Computer interface

USB, APIB or GPIB

OS Compatability

Windows Vista, XP

Dimensions

2U

GENERATOR PERFORMANCE

Sine Frequency Range

2 Hz–61.6 kHz (SR=131.072 kS/s).

Frequency Accuracy

±0.015625 Hz

IMD Test Signals

SMPTE, DIN

Maximum Amplitude (balanced)

24.1 dBm (Rs = 40)

Amplitude Accuracy

±0.09 dB [±1.0 %]

Flatness (20 Hz–20 kHz)

±0.007 dB

Residual THD+N, 1 kHz

0.0009% [–101 dB] +1.6 µV

Analog Output Configurations

unbalanced & balanced

Digital Output Sampling Rate

28.8 kHz to 108 kHz

Dolby Digital Generator

No

ANALYZER PERFORMANCE

Maximum Rated Input Voltage

140 V rms (dc to 20 kHz)

overload protected in all ranges

Maximum Bandwidth

<10 Hz to 120 kHz

(with performance option)

Amplitude Accuracy (1 kHz)

±0.09 dB [±1.0%]

Amplitude Flatness (20 Hz–20 kHz)

±0.01 dB, 20 Hz to 20 kHz

(0.45SR if less)

Residual Input Noise (20 kHz BW)

1.6 µV rms

Residual THD+N (20 kHz BW)

0.0009% [–101 dB] + 1.6 µV

FFT Resolution

Up to 256 K

IMD Measurement Capability

SMPTE, DIN

DC Voltage Measurement

Yes with DCX-127 Multifunction Module
