2. Installation
25 018-332-C0-002 Rev. B
© 2001 TM

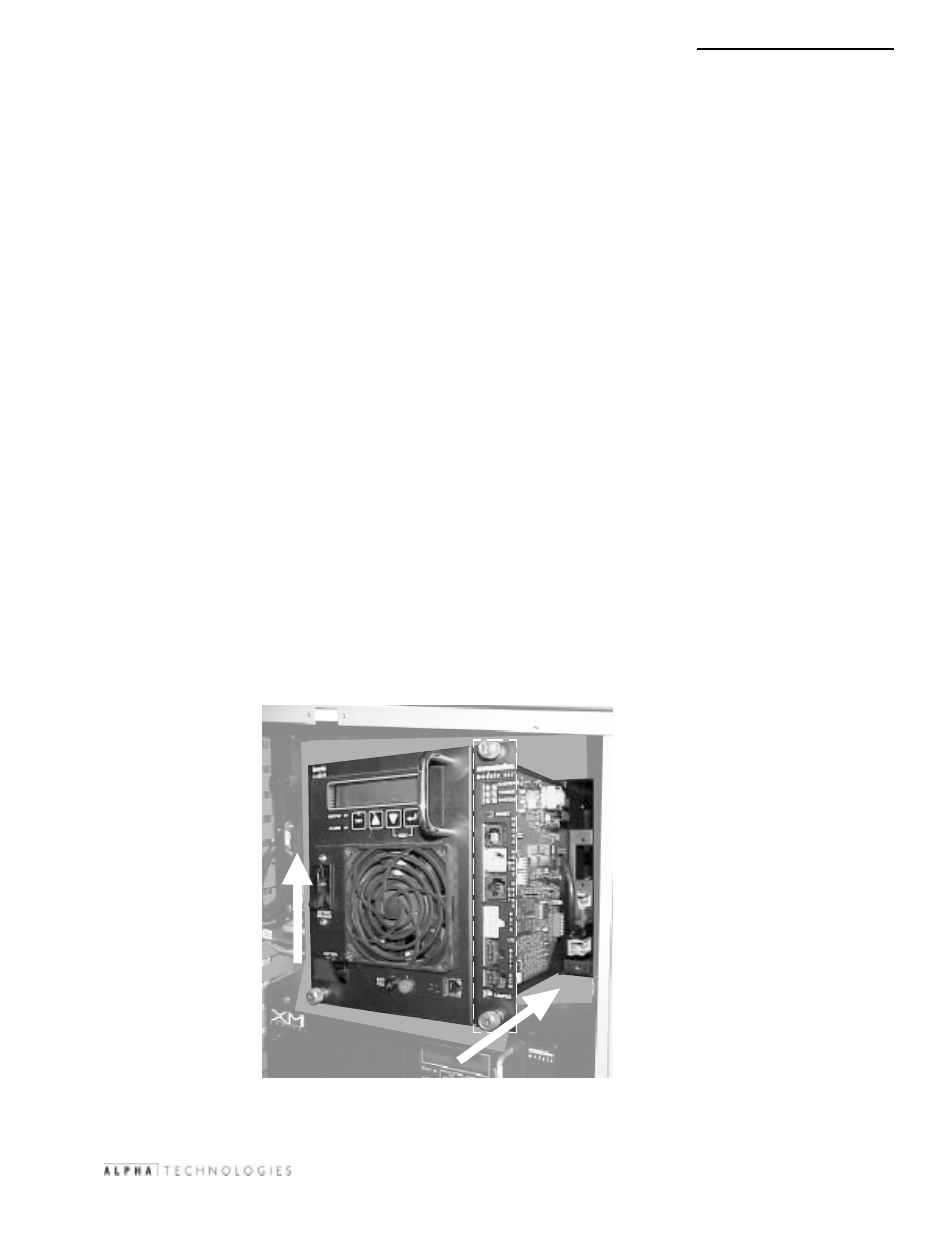

Figure 2-3; Inverter Module with SSC Installed
SSC Installation Procedure:
1. Carefully align the 2x9 header plastic standoffs of the SSC card
to the IM, and position the board over the two nylon standoffs.
2. Reattach with the 2 screws from the existing COMM module.
3. Slide the IM into the chassis.
4. Plug the Tamper, ECM, BATT, DATA I/O, and RS-485 (internal/
external), cables into their respective connectors.
5. Plug in the XM2 Battery Connector and turn ON the Battery
Breaker.
6. The XM2 and SSC will begin their initialization sequence.
2.2 SSC Installation
4
3
5
4
