6 alarm settings, 7 remote on/off switch, 8 turning on the load – Alpha Technologies INVERTER 2000 User Manual
Page 19: Alarm settings, Remote on/off switch, Turning on the load
Alpha Technologies Ltd.
014-129-B2 Rev C WC
© 2010 Alpha
Technologies Ltd. ALPHA is a registered trademark of Alpha Technologies Ltd. All Rights Reserved.
Page 13 of 19
4.6 Alarm Settings
Use #30~16 AWG to connect dry contact.
Module Status
Dry Contact Status
Alarm_NC & Com Alarm_NO & Com
DC and AC power normal
open
close
unit fail
close
open
DC and AC power off
close
open

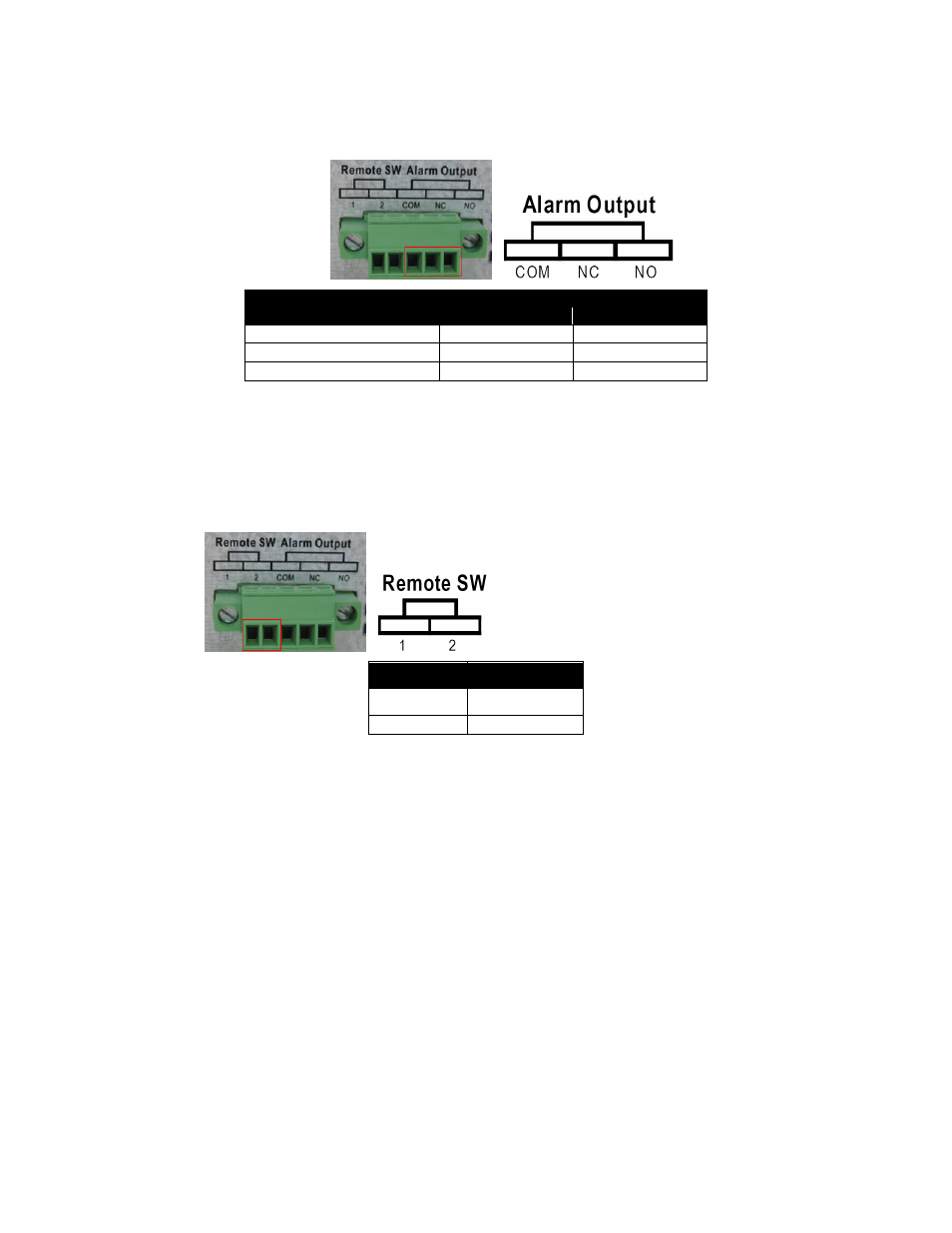

Figure 12–Rear panel alarm output port
4.7 Remote ON/OFF Switch
Use #30~16 AWG to connect remote ON/OFF switch:
Remote SW Output Status
Open
Off
Close
On
Figure 13–Rear panel remote ON/OFF switch
4.8 Turning On The Load
Check that the rated input power of the load is less or equal to the rated output power of the inverter.
Connect the load to the inverter as described previously.
Press the ON/OFF key to turn the unit ON.
