Fiber management panel – Alpha Technologies FlexNet PMR, GMR Series User Manual
Page 44

44
031-239-C0-003 Rev C

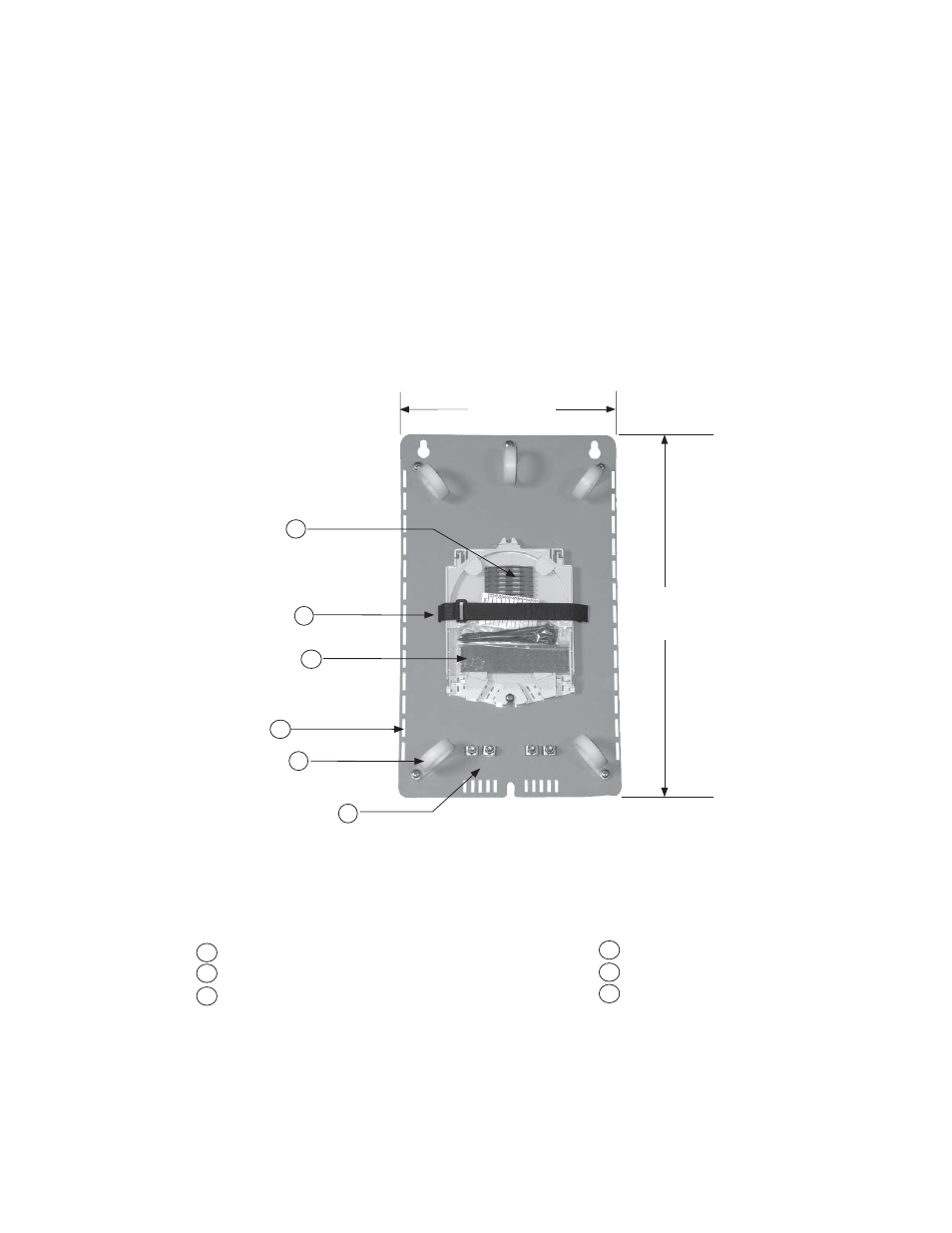

Fig. 4-19, Fiber Management Panel
9.5"
(24.13cm)
16"
(40.64cm)
1
4
6
3
5
2
1
2
3
12-position Fiber Splice Tray (p/n 565-033-10)
Velcro Cinch Strap (p/n 660-112-10)
Strain Relief Kt (p/n 745-649-20)
Tie Slots
Cable Clip, 5 PLC. (p/n 651-667-10)
Central Member Clamp, 4 PLC.
4
5
6
4.0
Equipping the System, continued
4.7
Fiber Management Panel
The optional Fiber Management Panel (Alpha p/n 745-672-20) provides fiber slack storage
and secures a splice tray using a Velcro strap. The side tie wrap slots permit securing fiber
cables to panel.
The panel is easily installed on the left side of the enclosure (as viewed from the front) and
slides over two wall-mounted studs at the top of the panel, held in place by #10-32 screws,
and secured by a wingnut at the center bottom of the panel.
