RECESSED / AL 1-LIGHT TID
AL 1-LIGHT
Technical Installation Data
SPECIAL NOTES FOR PATTERNS WITH CORNERS
1)
Housings: When installing patterns with corners, install corner housings first after the installation of all wall rails
(and wall plates). Then proceed with each straight run per above.
2)
Electrical: (a) AL row lengths are pre-calculated to provide ample light in corners. Be sure electrical units extend
fully into corners before field cutting. (b) For corners requiring a continuous circuit around corner, a pre-cut flex
conduit connector kit is provided.
3)
Diffusers: Plastic for corners has pre-cut 45° angles. Install angled corner pieces first and then straight-cut final
remaining pieces to fit.

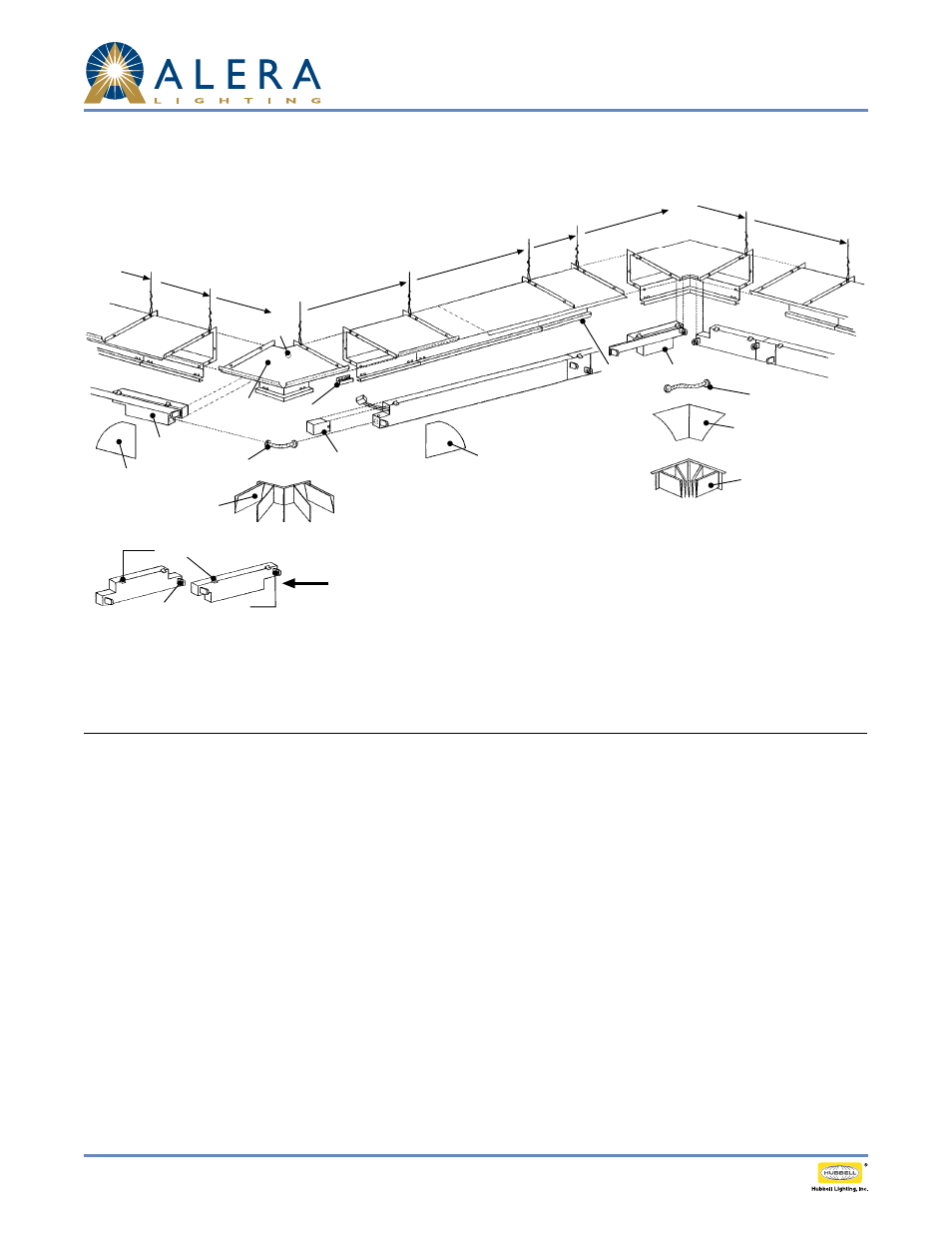

PATTERNS WITH CORNERS (VIEW SHOWN FROM SIDE WALL)
The U or L suffix on an electrical unit description
indicates the location of the lamps in relation
to the snap-in spring clips. Pre-installed clips
are oriented for proper stagger relative to row
length so that electrical units will require no field
modification by the installing contractor.
U (Upper) or L (Lower) Designations
Inside Corner Reflector
Service Cover
Power Access Only
Inside Corner Reflector
Adjustable Electrical Unit
Inside Corner Flex
Snap-in Spring Clips
Lower
Lamp
Upper
Lamp
Inside Corner
Housing
Trim Connector/
Aligner
Power Feed
Adjustable
Housing
Work in this direction
21"
Housing
90"
Housing
Adjustable
Housing
Outside Corner
Housing
21"
Housing
Outside Corner
Flex
Outside Corner
Reflectors (2)
Outside Corner
Louver
Note: Wall Rail and Wall Plate not shown (see below)
Inside Corner Louver
Trim Rail,
Cut to length
Adjustable Electrical Unit
120 L Unit
Lower Electrical Unit
Electrical Unit
