AL 1-LIGHT
Technical Installation Data
ELECTRICAL
1) Starting from right end of row (facing wall ), snap in place electrical unit, starting with lowest wattage (shortest)
and progressing to the longest unit.
2) Each unit has a polarized
plug-in connector. After wire connections, secure units together with connector plate
that slips over lampholders. Screws are provided.
3) Power feed is at end of row. Clip off plug to make connections. Install
service cover and endcaps.
4) Determine length for snap-on wireway cover for adjustable unit. Cut wireway cover, plug in wiring connection
and snap adjustable unit into place.
5) Install clip to hold 140A Adjustable Unit in place.
6) Install lamps.
7) Install lamp shield.
8) Where required, snap in reflectors. Reflectors overlap at adjustable unit.
DIFFUSERS
1) Install plastic shielding, baffle, or parabolic louver. Cut last piece to fit. Note: On parabolic louver, it may be necessary to
cut the last two (2) louvers to maintain an even louver spacing appearance.
2) Plastic or baffle lays in place; parabolic louver cantilevers off lip of trim rail.
3)
Important: Cut final plastic piece after sufficient lamp or building warm-up to allow for plastic expansion.

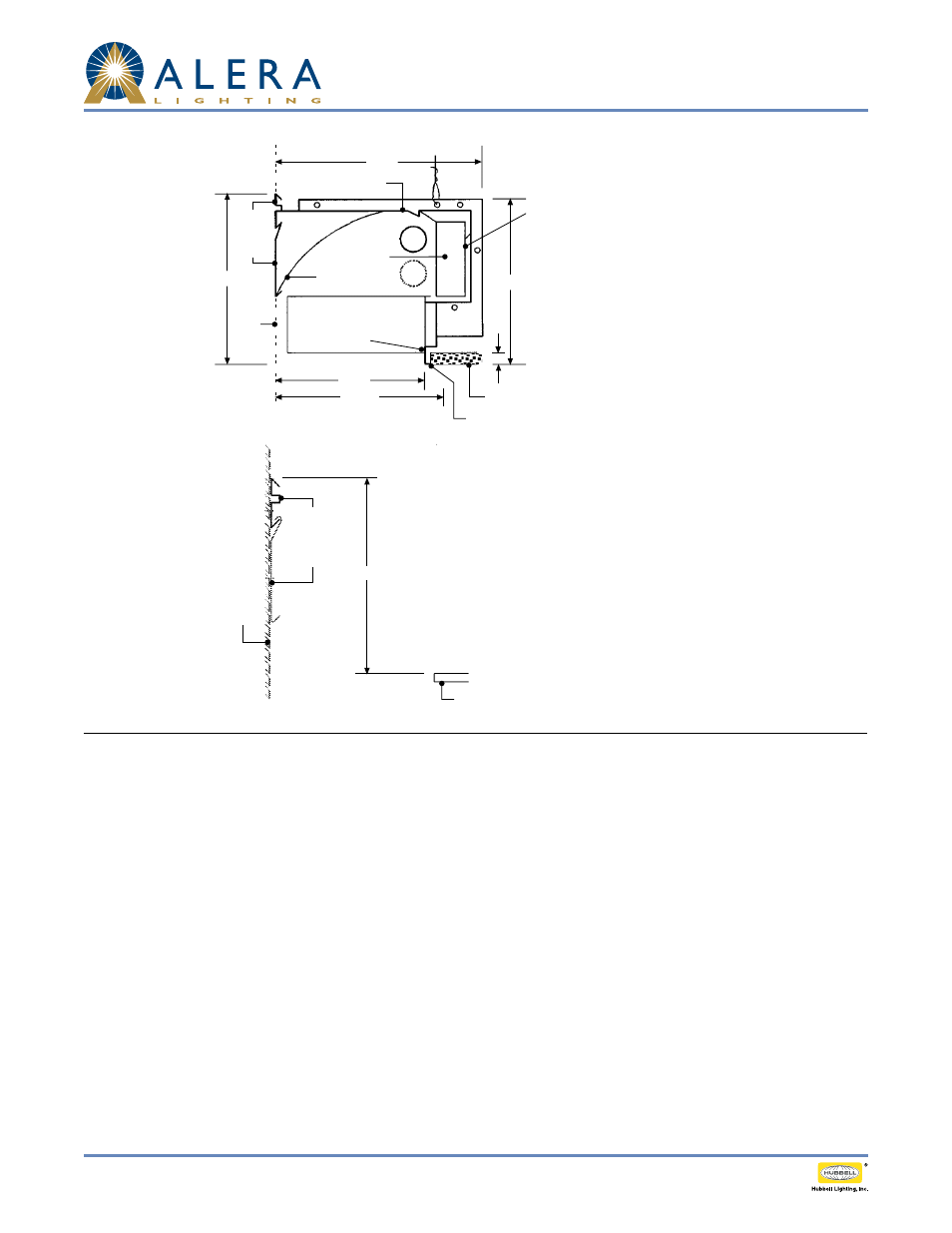

REFERENCE CROSS SECTION
STEP ONE- INSTALL WALL RAIL
Access to ceiling for
wiring and J-Box
inspection must be
cut in housing by
installing contractor
Install drywall into fixture
trim and secure other end to
building structure
Ceiling tile (by others)
10"
1"
8 1/2"
9 15/32"
Wall
Wall
Rail
Wall
Plate
Non-supporting
fixture trim
Parabolic Louver
Reflector
Electrical Unit
"AL" Housing (Chassis)
10 3/8"
12"
AL-1T8P-RLD
10 3/8"
Wall
Wall Plate
Wall Rail
Ceiling Plane
1) Mount wall rail to wall 10- 3/8" from finished ceiling
plane to top of wall rail. Fasteners not provided. Wall rail
furnished in 90" sections.
2) Where applicable, hook wall plate over bottom lip of wall
rail and fasten to wall.
3) Install AL components per instructions.
4)
Important: To save steps and time:
A. Start at the right end of each row facing the wall and
work left
B. Install smallest (lower wattage) housings and electrical
units first and then work up to the largest units.
