Page 2/5 Rev. 07/16/13 H72-00436 IntegRated ContRols / A+CLASS ™ APCS OS TID
A+CLASS ™ OCCupAnCy SenSOr
Technical Installation Data
© 2013 alera lighting, a division of Hubbell lighting, Inc. Because of continuing product improvement programs, alera lighting reserves the right to change specifications
without notice. 701 Millennium Blvd. greenville, sC 29607 / tel 864.678.1000 / Website www.aleralighting.com
US Patent #8,436,542
Fig. C Fig. D Fig. E
Fig. H Fig. G
Fig. F
Fig. I
Fig. A Fig. B
a
b
c
d e
f
g
h
i
j
2. Mount Occupancy sensor to ceiling.
a. Mounting Method 1: screw and mount twist-lock cover plate.
b. Mounting Method 2: Twist and lock threaded mounting post into cover plate. screw into acoustic ceiling tile (see Figures C, D, E and F).
3. Run Occupancy sensor wiring with Quick-To-Install™ (QTI) connector through ceiling tile.
Attach sensor body to cover plate by aligning arrow and twist locking into place (see Figures G, H and I).
instAllAtion instrUctions

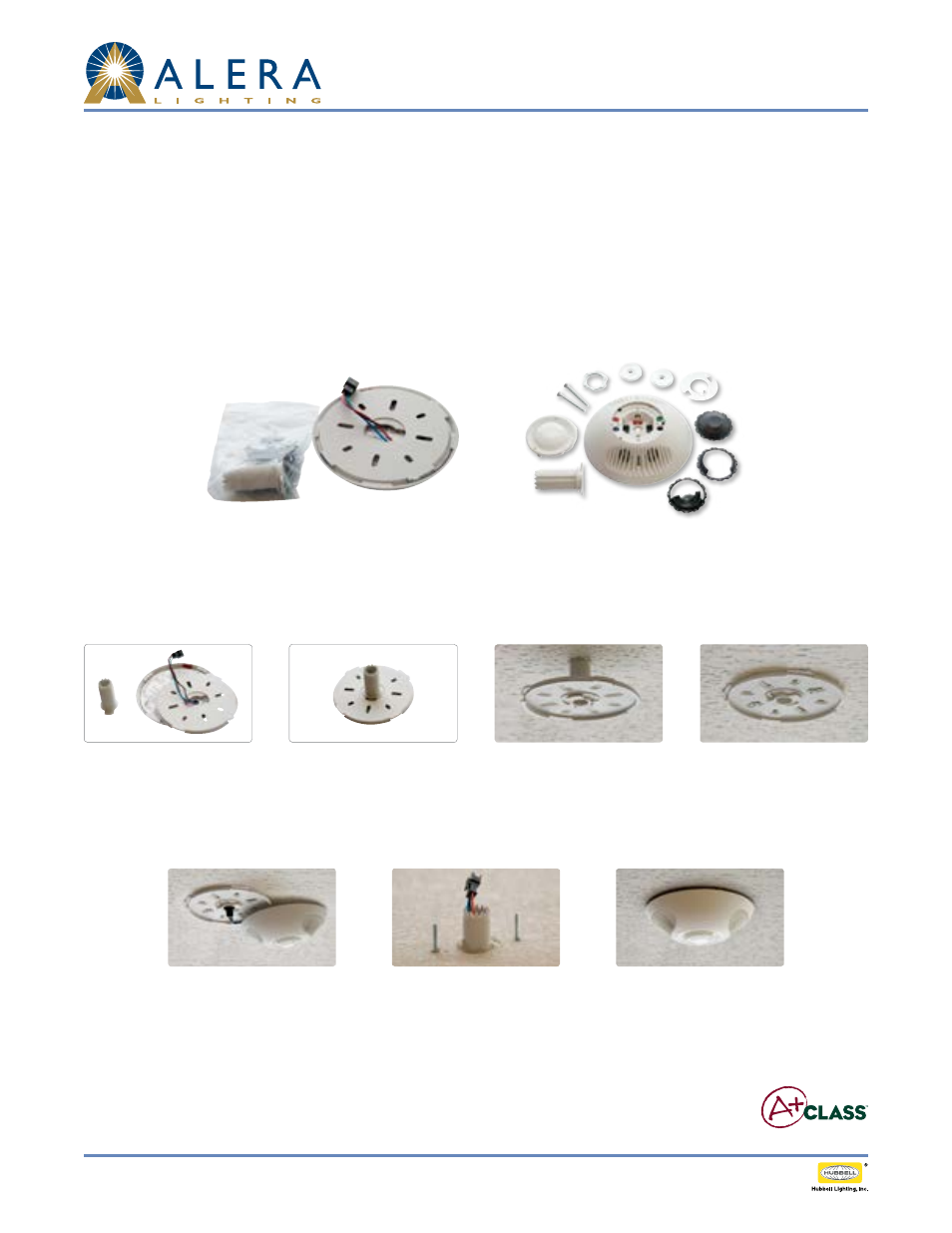

1. Identify Parts (see Figures A and B)
a. Occupancy sensor with Mounting Ring and pre-wired Quick-To-Install™
(QTI) Connector attached
b. Retainer ring and lens
c. screws (2), Nuts (not shown)
d. Retaining Nut
e. Washers (2)
f. Washer (threaded mounting post)
g. Full Mask
h. Aisle/Hallway Mask
i. Half Mask
j. Threaded mounting post
