Installation – ABUS FU8010-V2 GSM module User Manual
Page 8
8
Scope of delivery
GSM module
GSM antenna
Multilingual instructions
Technical data
Frequency range
900 / 1800 MHz
Antenna cable
RG 174U
Cable length
approx. 290 mm
Antenna plug
MMCX (on cable)
Antenna socket
MMCX (on module)
Installation
Note:
If the alarm centre is already in operation, put the centre into setup
mode. When the housing is opened, no tamper alarm will then be
triggered.

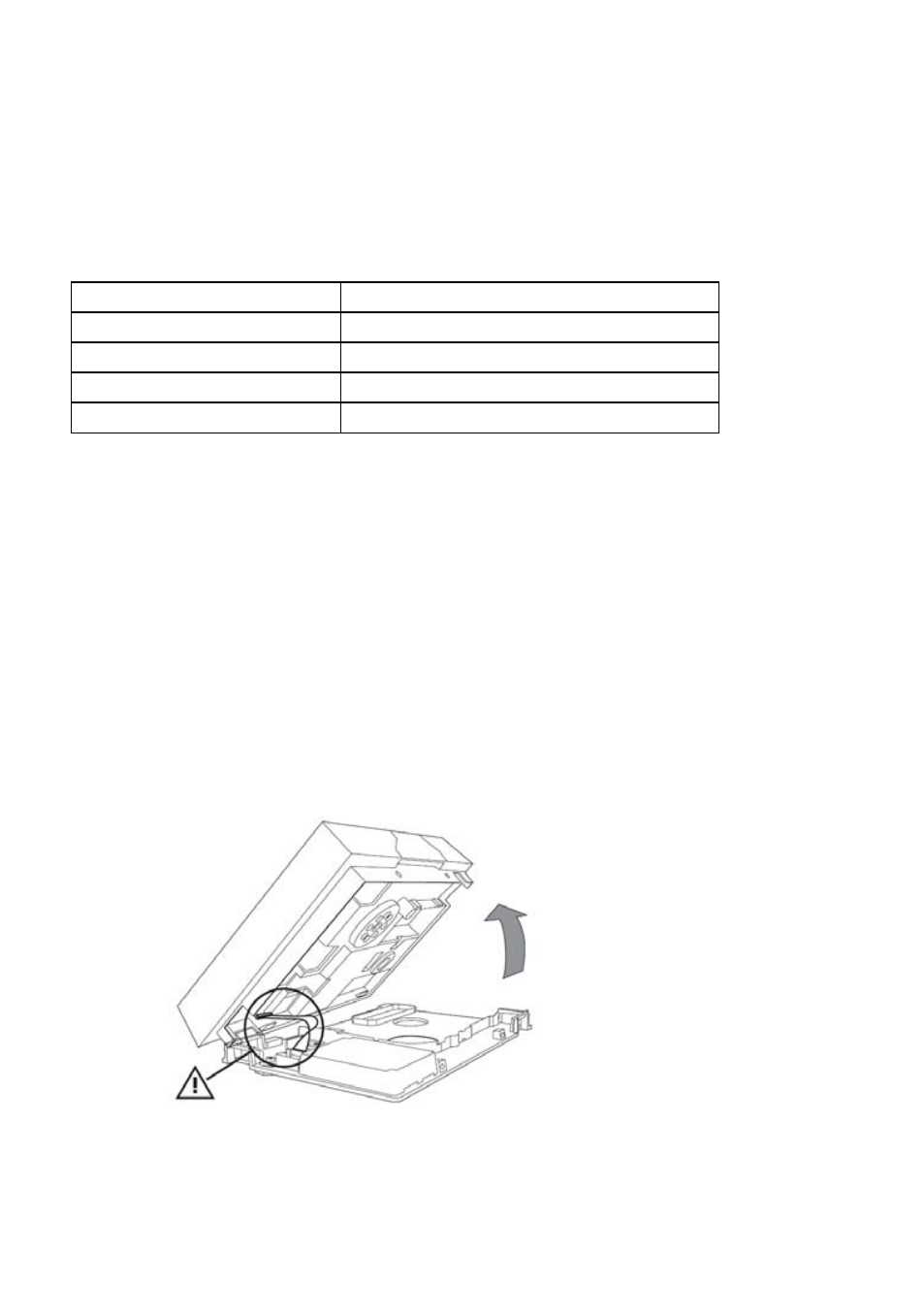

1. Remove both screws on the housing base.
2. Lift the housing carefully off the wall mounting plate.
Detach the ribbon cable from the wall mounting plate before you
open the housing fully.
3. Release all four screws holding the housing of the centre together
(1).
4. Detach the plug connection for the speaker and the connector for
the battery compartment (2).
