4
1. Features
The 8x relay module is an additional component for the Terxon SX,
Terxon MX and Terxon LX alarm centres. When the module is used,
an additional eight relay outputs are available. When connected, the
module occupies the additional transistor outputs of the alarm
centre.
Further information can be found in the installation instructions of
the alarm centre.
2. Overview

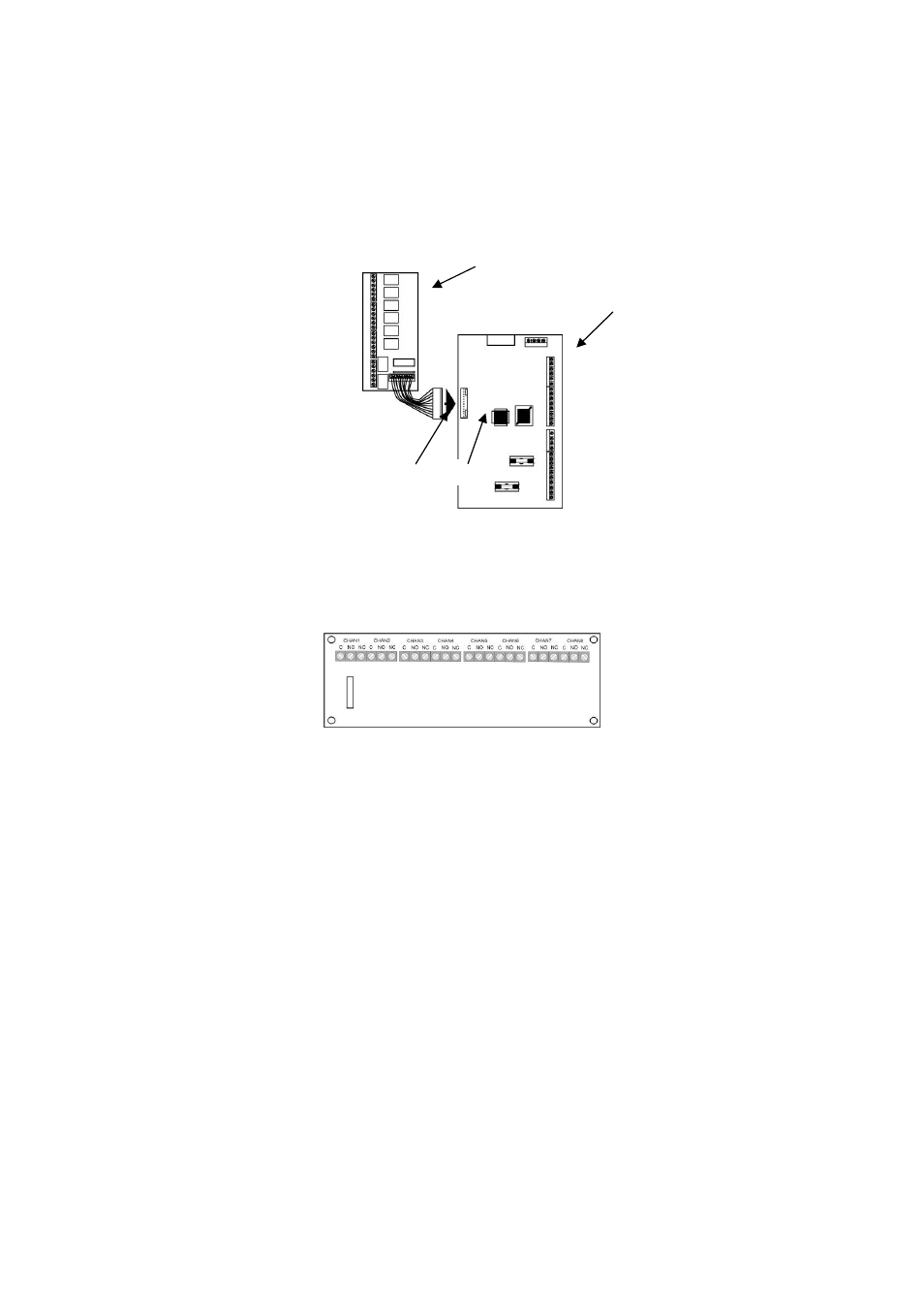

Fig. 1
1 - 8x relay board
2 - Terxon SX/MX mainboard
3 - Connecting cable
4 - Connection for additional transistor outputs
Fig. 2
2
3 4
1
