Chapter 2: motherboard information, Emb-bt1 sata 3.0gb/s connectors – AAEON EMB-BT1 User Manual
Page 31
2-23
Chapter 2: Motherboard information

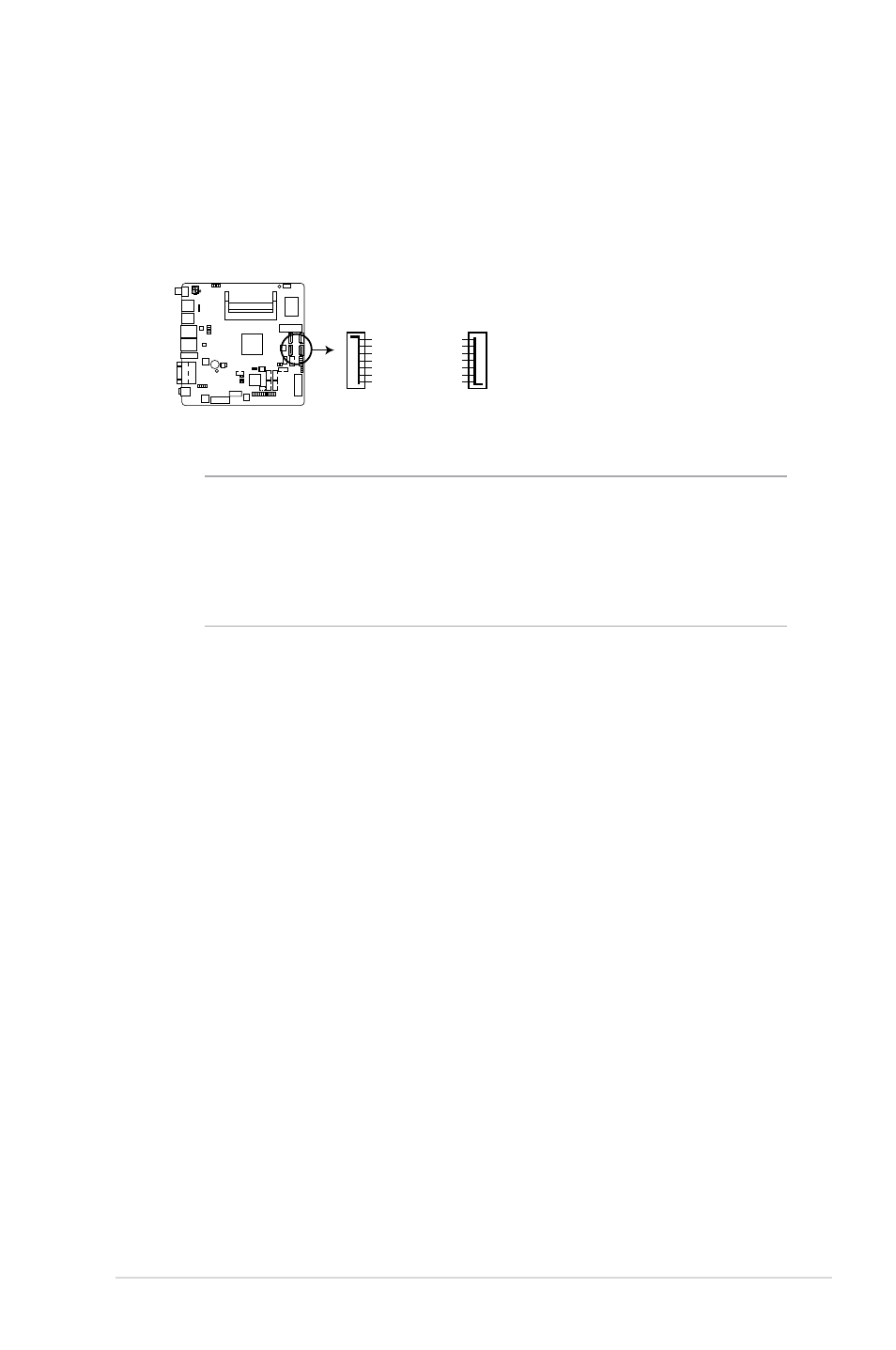

EMB-BT1 SATA 3.0Gb/s connectors
SATA3G_2
SATA3G_1
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
16. Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1, SATA3G_2)
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical
drives via Serial ATA 3.0 Gb/s signal cables.
NOTES:
• You must install Windows
®
XP Service Pack 3 or later version before using
Serial ATA hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the
BIOS to [AHCI]. See section 3.3.7 IDE Configuration for details.
