EMB-BT1 2-12
2.8 Connectors

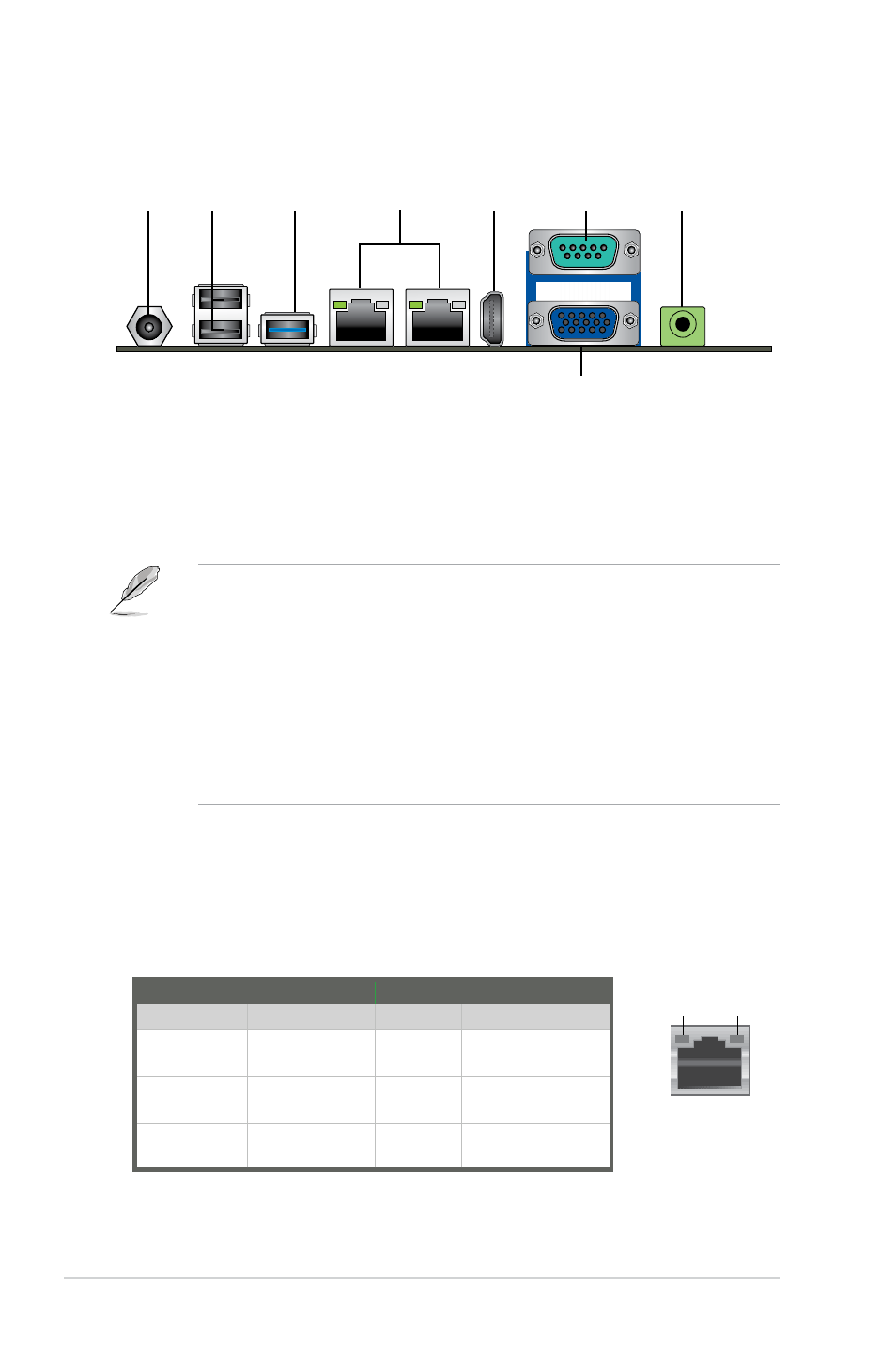

2.8.1 Rear panel connectors
LAN port
Speed
LED
Activity Link
LED
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps
connection
ORANGE Linked ORANGE 100 Mbps
connection
BLINKING Data activity GREEN 1 Gbps
connection
7
8
6 5 4 3 2 1
1. DC power connector. Insert the power adapter into this port.
2. USB 2.0 ports. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0/1.1 devices.
4. LAN1~2 (RJ-45) ports. These ports allow Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN2
port LED indications.
LAN port LED indications
3. USB 3.0 port. This 9-pin Universal Serial Bus (USB) ports connects to USB
3.0/2.0 devices.
NOTES:
• DO NOT connect a keyboard / mouse to any USB 3.0 port when installing
Windows ® operating system.
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used
under Windows ® OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can be used for data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0
ports for a faster and better performance from your USB 3.0 devices.
