Page 26
EMB-BT1
2-18

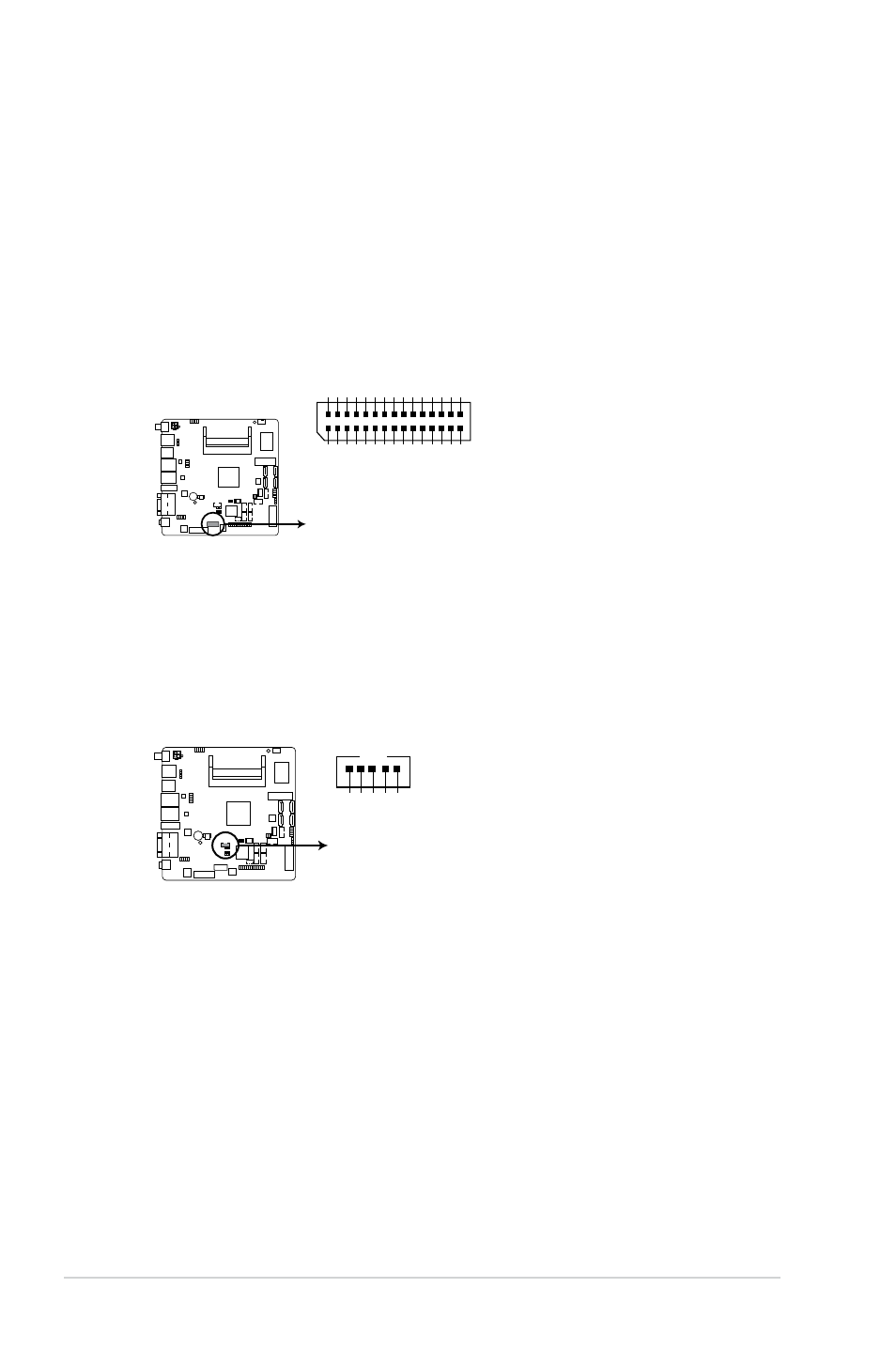

EMB-BT1 LVDS connector
LVDS1
PIN 1
LVDS1_CLK+ GND LVDS1_D3+ LVDS1_D2+ LVDS1_D1+ LVDS1_D0+ EDID_Clk LVDS0_D3+ LVDS0_D2+ LVDS0_D1+ LVDS0_D0+ GND LVDS0_CLK+ GND Back Light Control for DC mode
LVDS1_CLK-
LVDS VCC LVDS1_D3- LVDS1_D2- LVDS1_D1- LVDS1_D0- EDID_Data LVDS0_D3- LVDS0_D2- LVDS0_D1- LVDS0_D0- LVDS VCC
LVDS0_CLK-
LVDS VCC
LVDS Panel Enable
7. LVDS connector (30-pin LVDS1)
This connector is for an LCD monitor that supports Low-Voltage Differential
Signaling (LVDS) interface.
8. Backlight inverter power connector (5-pin INV1)
Connect the backlight inverter power cable to this connector.
Inverter VCC
Back Light Control
GND GND
Back Light Enable
PIN1
EMB-BT1 Inverter Connector
INV1
