IMBA-H61A 2-14
2.7 Connectors

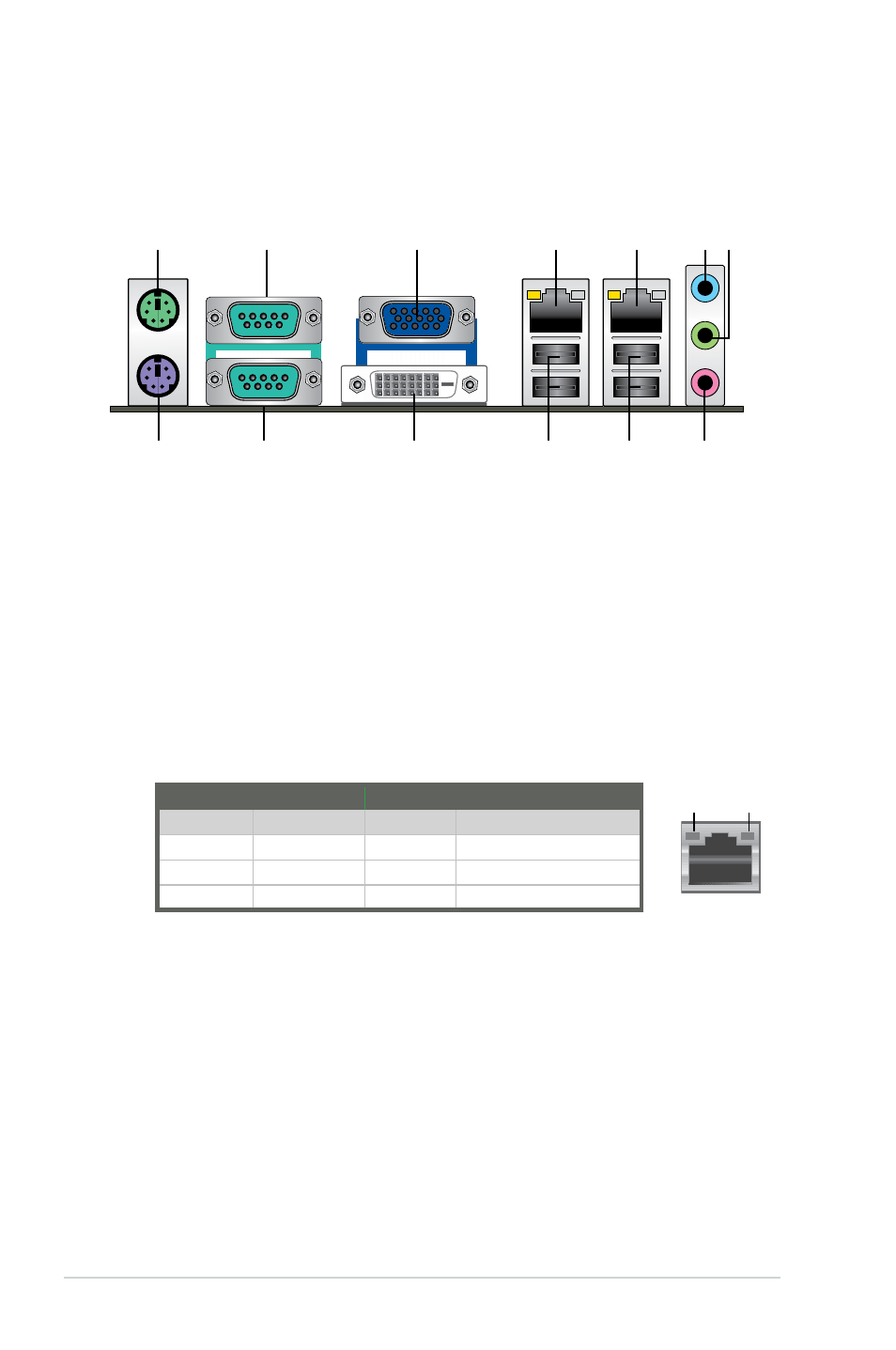

2.7.1 Rear panel connectors
LAN port
Speed
LED
Activity
Link LED ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. Serial ports. These ports connect a modem, or other devices that conform
with serial specification.
3. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor
or other VGA-compatible devices.
4. LAN (RJ-45) ports. These ports allow Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
3 5
9
4 4
10
6
7 8 8
1 2
2
LAN port LED indications
