High level shut-off valve
High Level Shut-Off Valve
MODEL
129-26
•
Installed in the fill line to either underground or above ground
fuel storage tanks
•
Pilot control and hydraulically operated by line pressure,
closing fully when tank is full
•
Provides accurate, repeatable high level shut-off
•
Can be serviced without removal of valve from line
•
Fail-safe operation
•
Position indicator is standard
•
Available in aluminum, cast steel, stainless steel or ductile iron
The Cla-Val Model 129-26 Hytrol Valve is used as the basic unit in almost all Cla-Val
automatic control valves for petroleum applications. The 129-26 is a hydaulically-operated,
diaphragm actuated, globe or angle pattern valve. It is available in various materials and
full range of sizes. It consists of three major components: body, diaphragm assembly and
cover. The diaphragm assembly is the only moving part. The rugged simplicity of design
and packless construction assure a long life dependable, trouble-free operation. Should
the diaphragm become damaged the valve will close tight, providing “fail safe” operation.
The 129-26 Hytrol Valve is used in many types of piping system requiring control, flow
regulation, rate of flow control, or check valve operation.

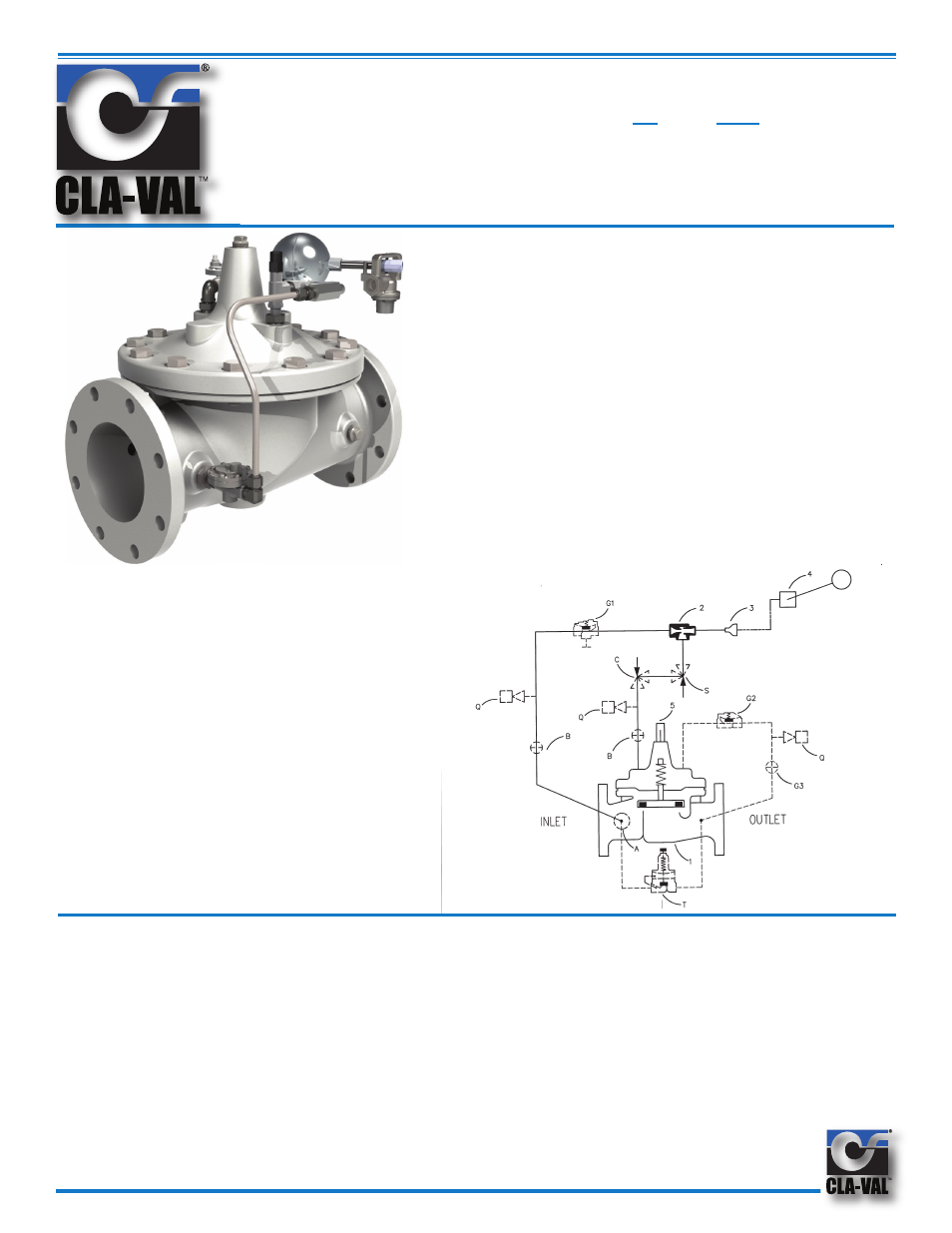

Schematic Diagram
Item Description
1
100-34 Hytrol (Reverse Flow)
2
X47A Ejector
3
Bell Reducer
4
CFM2 Float Control
5
X101 Valve Position Indicator
X105L Switch Assembly
Optional Features
Item Description
A
X46A Flow Clean Strainer
B
CK2 (Isolation Valve)
C
CV Flow Control (Closing)
G
81-01 Check Valve
Q
Quick Connect Assembly
S
CV Flow Control (Opening)
T
55F Thermal Relief Control
Specifications
Sizes
Globe: 1 1/2” - 16” flanged
Angle: 2” - 16” flanged
End Details
Flanged:
Cast Aluminum, 150 ANSI B16.1
Cast Bronze, 150 & 300 ANSI B16.24
Ductile Iron, 150 & 300 ANSI B16.42
Cast Steel, 150 & 300 ANSI B16.5
Temperature Range
Light Petroleum Product -40° to+140°F
Pressure Ratings
150 class 175-PSI Max.
150 class 275-PSI Max.
250 class 300-PSI Max.
300 class 400-PSI Max.
Material
Body & cover:
Cast Aluminum 356-T6
Cast Bronze ASTM B62
Ductile Iron ASTM A-536
Cast Stainless Steel 303
Cast Steel ASTM A216-WCB
Valve trim:
Bronze ASTM B61
Stainless Steel 303
Rubber parts:
Buna-N® Synthetic Rubber
Viton
Other Materials
Available on Special Order
