352GF
MODEL
Hydrant Pit Valve
Materials Specification
Body Material Ductile Iron ASTM A536 65-45-12
API Adapter Stainless Steel (Grade 410 - hardened to Brinnell 345/365)
Pilot Valve Aluminum
Seals Nitrile and Fluorocarbon
Internal Treatment of Body Electroless Nickel-Plated to MIL-C-26047 (4 to 6mm penetration)
Treatment of Poppet Hard Anodized
Treatment of Piston Hard Anodized
Cap Polyurethane Company
Corrosion Protection Electroless Nickel-Plated to MIL-C-26047 (4 to 6mm penetration)
Warranty: Three Years
This is a Limited Warranty
Automatic valves and controls as manufactured by Cla-Val are warranted for three years from date of ship-
ment against manufacturing defects in material and workmanship that develop in the service for which
they are designed, provided the products are installed and used in accordance with all applicable instruc-
tions and limitations issued by Cla-Val. Electronic components manufactured by Cla-Val are warranted
for one year from the date of shipment.
We will repair or replace defective material, free of charge which is returned to our factory, transporta-
tion charges prepaid, provided that after inspection the material is found to have been defective at time
of
shipment.
The warranty is expressly conditioned on the purchaser’s giving Cla-Val immediate written notice upon
discovery of the defect.
Components used by Cla-Val, but manufactured by others, are warranted only to the extent of that
manufacturer’s guarantee.
This warranty shall not apply if the product has been altered or repaired by others, and Cla-Val shall make
no allowance or credit for such repairs or alterations unless authorized in writing by Cla-Val.
Disclaimer of Warranties & Limitation of Liability
The foregoing warranty is exclusive and in lieu of all other warranties and representations whether expressed, implied, oral or written, including but not limited to,
any implied warranties or merchantability or fitness for a particular purpose. All such other warranties and representations are hereby cancelled.
Cla-Val shall not be liable for any incidental or consequential loss, damage or expense arising directly or indirectly from the use of the product. Cla-Val shall not
be liable for any damages or charges for labor or expense in making repairs or adjustments to the product. Cla-Val shall not be liable for any damages or charges
sustained in the adaptation or use of its engineering data and services.
No representative of Cla-Val may change any of the foregoing or assume any additional liability or responsibility in connection with the product.
The liability of Cla-Val is limited to material replacements F.O.B. Newport Beach, California.
CLA-VALWARRANTY
3 Year Warranty on Cla-Val Quality Products
CLA-VAL
P O Box 1325
Newport Beach CA
92659-0325
Phone: 949-722-4800
Fax: 949-548-5441
E-mail: [email protected] CLA-VAL EUROPE Chemin des Mésanges 1
CH-1032 Romanel/
Lausanne, Switzerland
Phone: 41-21-643-15-55
Fax: 41-21-643-15-50
E-mail: [email protected] CLA-VAL UK Dainton House, Goods Station Road
GB - Tunbridge Wells
Kent TN1 2 DH England
Phone: 44-1892-514-400
Fax: 44-1892-543-423
E-mail: [email protected] CLA-VAL CANADA 4687 Christie Drive
Beamsville, Ontario
Canada L0R 1B4
Phone: 905-563-4963
Fax: 905-563-4040
E-mail [email protected]
CLA-VAL FRANCE Porte du Grand Lyon 1
ZAC du Champ du Périer
FR - 01700 Neyron
Phone: 33-4-72-25-92-93
Fax: 33-4-72-25-04-17
E-mail: [email protected]
145
Ordering Information
Option letters and numbers may be combined with the basic unit, except as
noted, to customize the valve to fit specific installation requirements.
Option Description
4 Pit Valve 4” Inlet ANSI 150
6 Pit Valve 6” Inlet ANSI 150
A Air Pilot
D Air Pilot with Defuel
F Fusible Plug Assembly
M Manual Pilot
O Air Release
R Adapter Assembly 4” X 6”
S4 Stone Guard 4” with Snap Ring
S6 Stone Guard” with Snap Ring
I
20 Mesh Strainer 4” and 6”
Ordering Example
Model # 352GF-4AOS4
Standard pit valve with 4” inlet flange ANSI 150 with pneumatic operated pilot
valve and lanyard override s/w stone guard on inlet
CLA-VAL
Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: [email protected] • Website cla-val.com
©
FLAMMABLE LIQUID

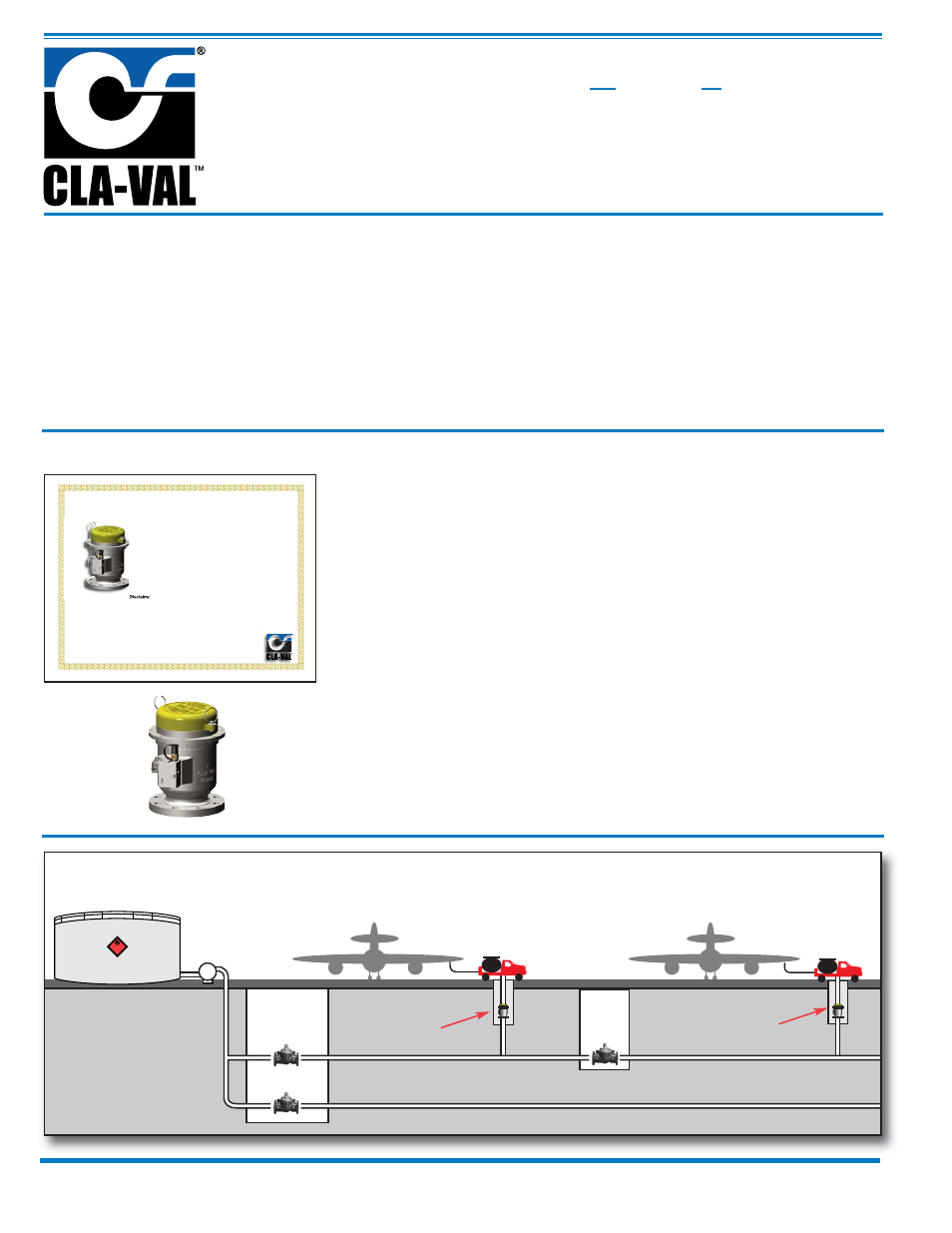

Typical Application
Model 352GF
Hydrant Pit Valve
Model 352GF
Hydrant Pit Valve
