Model 2050B-4KG1KOL Angle Model 50B-4KGKOL Globe
We recommend providing adequate space around valve for maintenance work.
Specifications
Globe: 3" - 8" flanged; Angle: 3" - 8" flanged
FM Approved, UL and ULC Listed
150 and 300 ANSI B16.42
Class 150 - 250 psi Max; Class 300 - 300 psi Max
Water, to 180°F Max.
Available in the following relief pressure ranges:
20-200 psi (150 Class)
100-300 psi (300 Class)
Protective epoxy resin coating of wetted surfaces
of main valve iron components
UL listed HNFX EX2855)

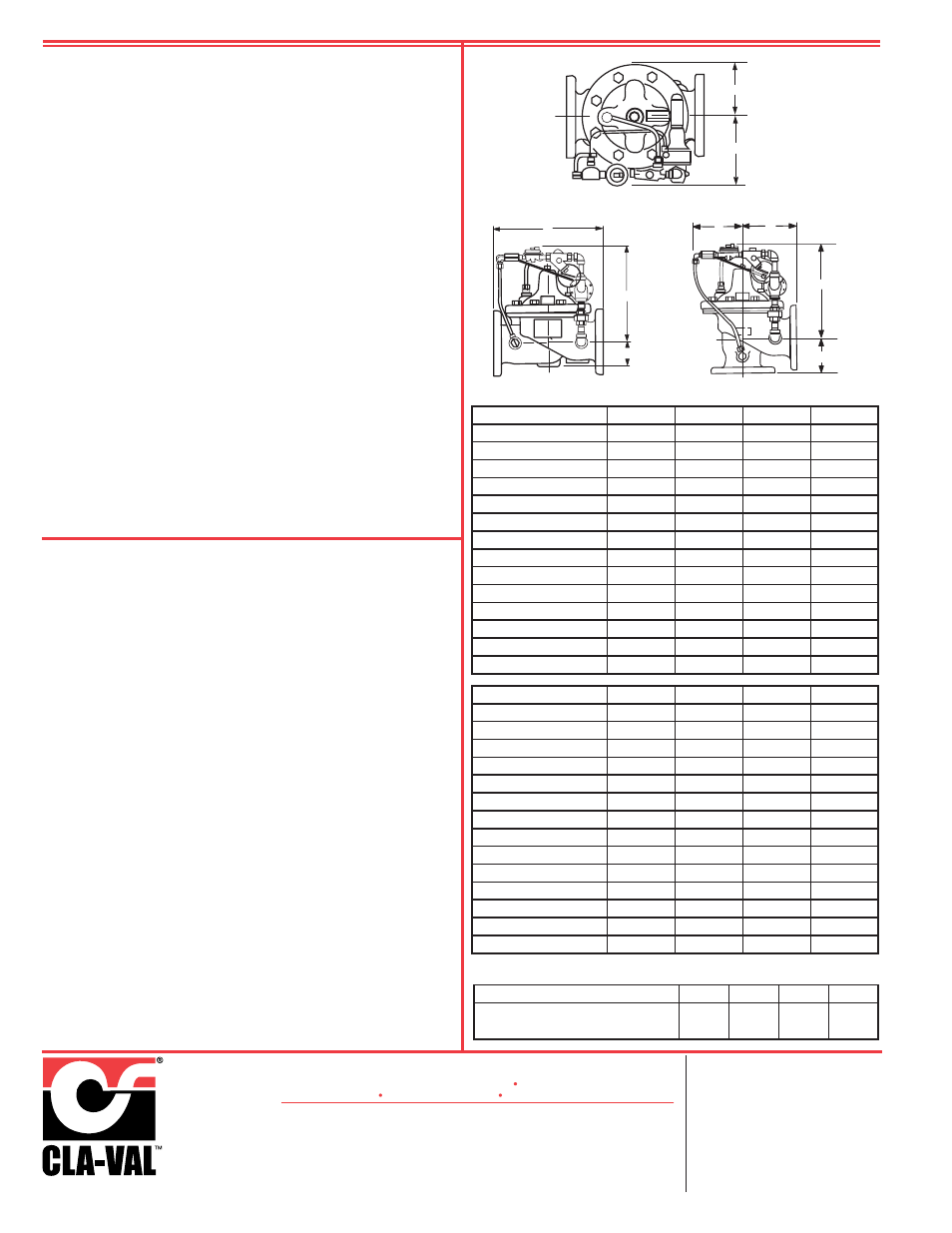

Dimensions
B
G
C
F
H E
C
D
A
The Fire Pump Pressure Relief Valve shall modulate to relieve excess
pressure in a fire protection system, maintaining constant pressure in the
system regardless of demand changes. It shall be pilot controlled and
back pressure shall not affect its set point. It shall be actuated by line
pressure through a pilot control system and open fast in order to maintain
steady system pressure as system demand decreases. It shall close
gradually to control surges and shall re-seat drip-tight within 5% of its pres-
sure setting.
The main valve shall be of the hydraulically-operated, pilot-controlled,
diaphragm-type, globe or angle valve. It shall be equipped with a teflon-
coated anti-cavitation seat, a grooved stem guided at both ends, and a
resilient disc with a rectangular cross section, being contained on 3-1/2
sides. No external packing glands shall be permitted and the diaphragm
shall not be used as a seating surface. The pilot control shall be a direct-
acting, adjustable, spring-loaded, diaphragm-type valve designed for mod-
ulating service to permit flow when controlling pressure exceeds spring
setting. This valve shall be UL Listed and Factory Mutual approved. It
shall be the Model 50B-4KG1KOL (globe) or Model 2050B-4KG1KOL
(angle) Pressure Relief Valve as manufactured by Cla-Val Newport Beach,
California.
*Special Note:
The Model 50B-4KG1KOL/2050B-4KG1KOL Pressure Relief Valve is
available with 300# ANSI inlet flange and 150# ANSI outlet flange for high
pressure systems where 300# flange connections are required, to allow for
adapting of a discharge cone (generally supplied with 150# flange) to
accommodate "atmospheric break" at relief valve discharge.
This relief valve, with 300# / 150# flanges is available on special order, and
is UNDERWRITERS LABORATORIES LISTED AND FACTORY MUTUAL
APPROVED.
Purchase Specifications
Sizes
End Details
Pressure Ratings
Adjustment Range
Optional Coating
Valve Capacity
Valve Sizes in Inches: 3" 4" 6" 8"
NFPA 20 Maximum
Recommended GPM
500 1000 2500 4000
Valve Size
(inches)
3” 4” 6” 8”
Threaded Ends 12.50 - - - - - - - - -
A 150 Flanged 12.00 15.00 20.00 25.38
300 Flanged 13.25 15.62 21.00 26.38
300 X 150 12.88 15.31 20.56 25.88
B 4.56 5.75 7.88 10.00
C 12.50 13.00 14.31 16.31
D 2.66 3.19 4.31 5.31
Threaded Ends 6.25 - - - - - - - - -
E 150 Flanged 6.00 7.50 10.00 12.75
300 Flanged 6.38 7.88 10.50 13.25
Threaded Ends 4.50 - - - - - - - - -
F 150 Flanged 4.00 5.00 6.00 8.00
300 Flanged 4.38 5.31 6.50 8.50
G & H 7.75 7.88 8.50 9.75
Valve Size
(mm)
80 100 150 200
Threaded Ends 318 - - - - - - - - -
A 150 Flanged 305 381 508 645
300 Flanged 337 397 533 670
300 X 150 327 389 522 657
B 116 146 200 254
C 1318 330 363 414
D 65 81 109 135
Threaded Ends 159 - - - - - - - - -
E 150 Flanged 152 191 254 324
300 Flanged 162 200 267 337
Threaded Ends 114 - - - - - - - - -
F 150 Flanged 102 127 152 203
300 Flanged 111 135 165 216
G & H 197 200 216 248
Main Valve Body & Cover: Ductile Iron ASTM A536 Grade 65-45-12
Main Valve Trim: Teflon Coated Stainless Seat, Stainless Steel Stem
Pilot Control System: Cast Bronze with Stainless Steel Trim
Standard Valve Materials
Materials for Seawater and Severe Service Applications
Optional UL Listed Materials:
• Nickel Aluminum Bronze (NAB) - ASTM B148 Alloy C95800
• Monel - QQ-N-288 Comp B - ASTM A494 Grade M30H
• Cast Steel - ASTM A216 Grade WCB
• 316 Stainless Steel - ASTM A743 Grades CF3M and CFM8
• Super Austenitic Stainless Steel - ASTM A351 Grade CK3MCuN
(SMO 254)
• Super Duplex Stainless Steel - ASTM A890 Grade 5A (CE3MN)
Trim and pilot control system material options available
to suit specific applications
