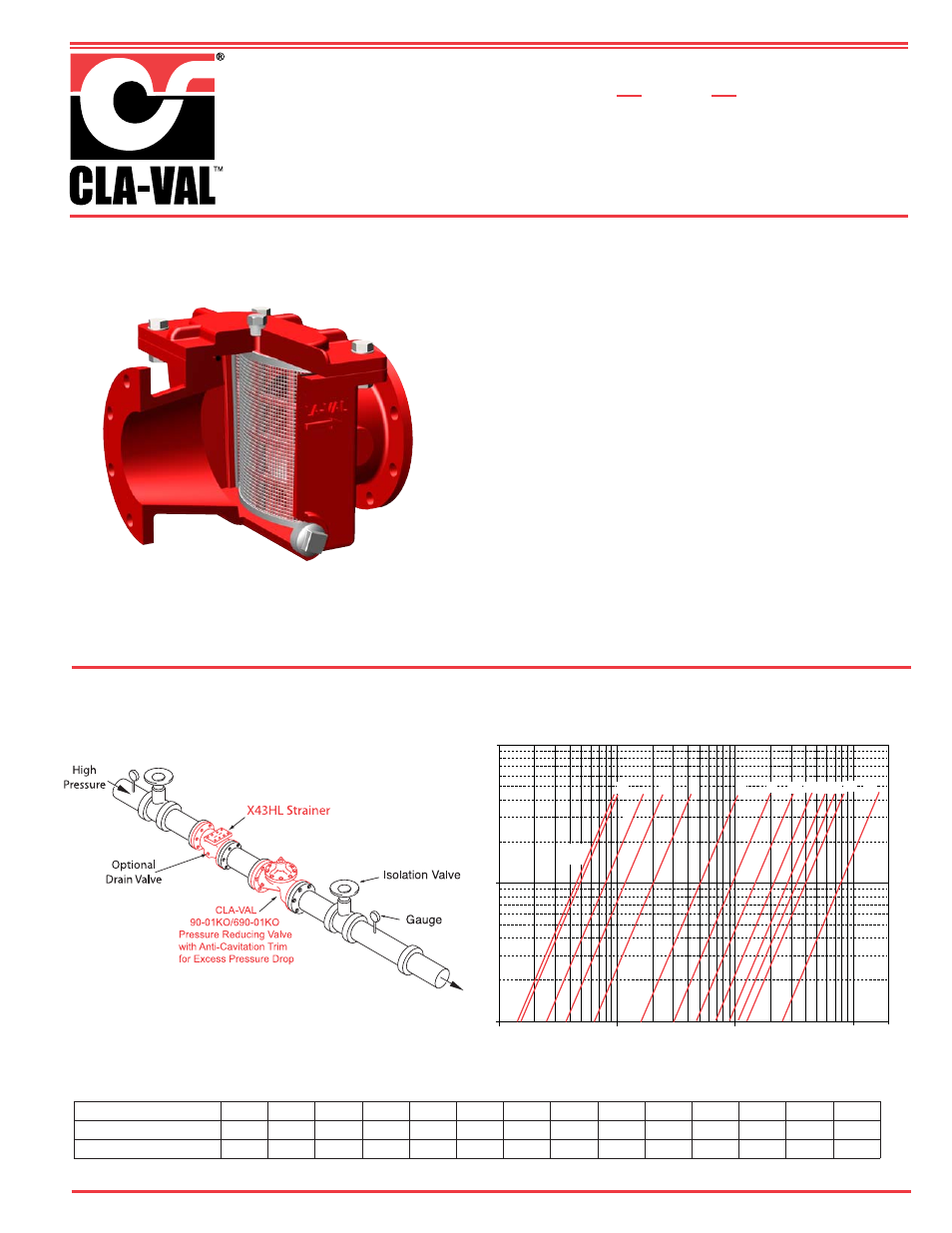

Cla-Val Model X43HL Strainer
MODEL
•
Low Pressure Drop
•
Ductile Iron Fusion Bonded Epoxy Coated construction
with a 316 Stainless Steel Strainer
•
Also available: Nickel Aluminum Bronze Construction
with a Titanium Strainer
•
Large Flow Area H-Style Design
•
Service Without Removal From Line
Model X43HL Style Strainer
Typical Application
Constant Downstream
Pressure
C
V
Factor
Model X43HL Flow Chart
100
10
100 1,000 10,000 100,000
Flow (gpm)
Pressure Drop (psi)
1
3” 4”
2 1/2”
6” 8” 2” 10”12” 16” 24” 20” 14”
200,000
1 1/2”
The durable Cla-Val Model X43HL H-Style Strainer is the easiest and
most cost effective way to protect piping and equipment from
damage caused by pipeline debris. Its large flow area and durable
materials of construction means it can withstand the harsh conditions
often encountered in refinery and offshore applications. The body
port allows for installation of a manual flush valve to clear small
amounts of debris from the strainer without removing the cover. For
more thorough cleaning, the top cover can easily be removed without
taking strainer out of the pipeline. The strainer may be installed in any
position, however, installation with cover up is recommended
Strainer Size (inches) 1 1 ⁄
2
2 2 1 ⁄
2
3 4 6 8 10 12 14 16 18 20 24
C
V
(Gal/Min. - gpm.) 96 150 254 367 654 1644 3922 4566 6800 8949 11692 12796 18264 26302
C
V
(Litres/Sec - l/s.) 23 36 61 85 157 395 702 1097 1580 2150 2809 3555 4388 6319
Cv in gpm = gpm @ 1psid head loss • Cv in l/s = l/s @ 1bar head loss
