MAINTENANCE

The X117C and X117CLS are constructed of durable materials
which normally requiring no lubrication or periodic maintenance.
The two ‘O’ rings (2) (p/n 00951E) in the adapter (5) that seal
against the stainless steel actuating stem (1) will need replace-
ment if signs of leakage at the stem occur.

For replacement circuit board use p/n 3080206A. When installing a
new circuit board be sure that the small black and white plastic bear-
ing piece connecting the X117C main shaft to the circuit board
mounted potentiometer shaft remains in the transmitter housing. It
is not part of the replacement circuit board.

REFERENCE:

100 Series

1 1/4 & 1 1/2

2 1/2

3
4
6
8

10
12
14
16

600 Series

4
6
8

10
12
16

20 & 24

.60
.75
.88

1.00
1.13
1.50
1.88
2.00
2.87
3.00
3.25

Valve Size (inch)

“C” Dim. (inch)

CLA-VAL

P.O. Box 1325

• Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: [email protected] • Website cla-val.com

Span Trimmer
Potentiometer

Output Terminals

Null Trimmer
Potentiometer

Function Switch

Use “CW” Position

Right position:CW
Output increases
with clockwise
rotation of shaft
(viewed from front).

Left position:CCW
Output increases with
counter-clockwise
rotation of shaft
(viewed from front).

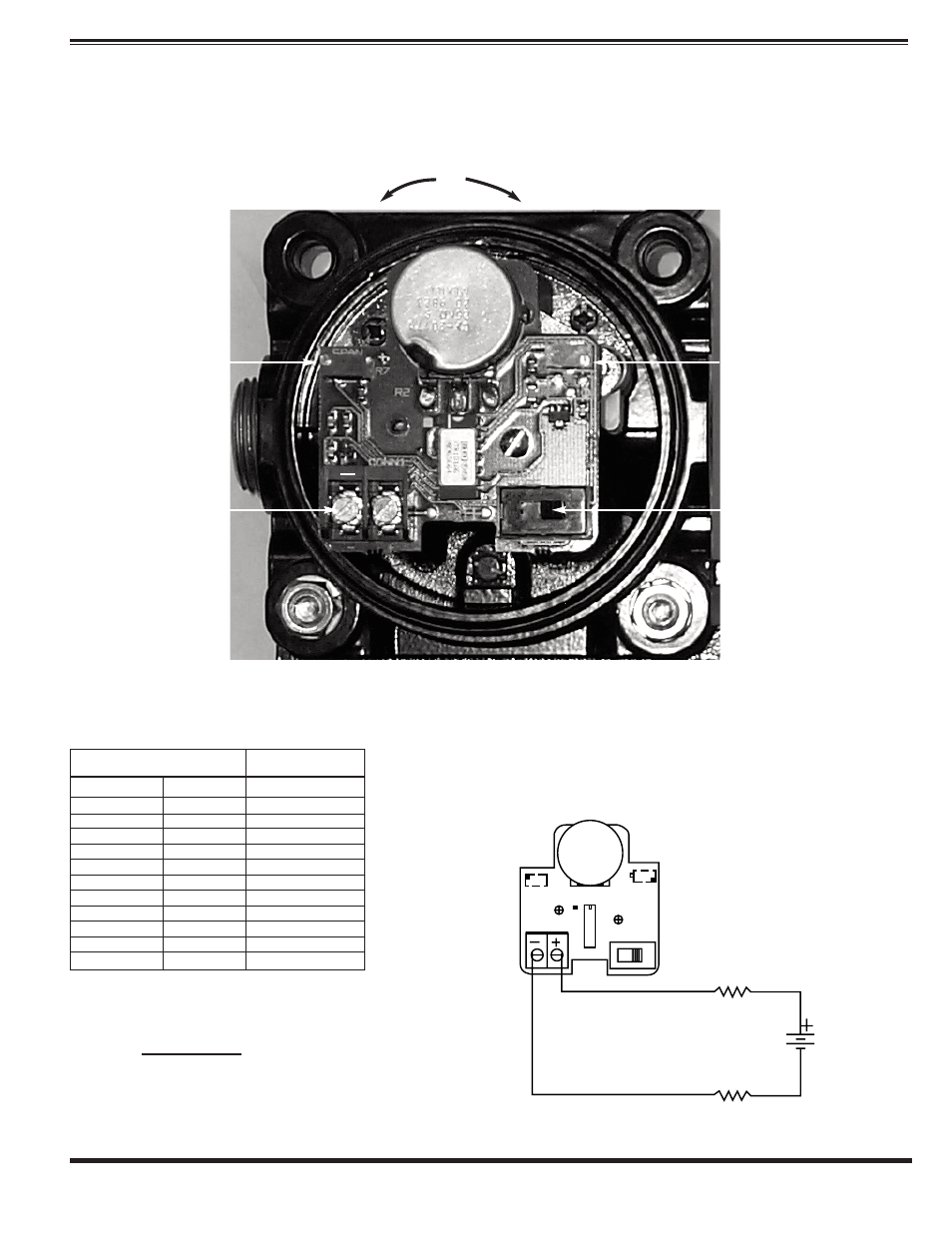

Figure 2. Rear View with Cover Removed

SPECIFICATIONS:

Voltage compliance range: 12.5 to 40 VDC
Maximum load resistance:

RL Max. =

V Supply - 12.5

20 mA

Current signal output: 4-20mA
Span: Adjustable from 15˚ to 90˚ of angular rotation
Null: 4 mA position may be set at any angular position
RL2 is current monioring instrumentation load

Typical Wiring Connections:

RL1

RL2

12.5 To
40 volts

SPAN

NULL

CCW CW

CCW

N-X117C (R-1/08)
